5%-100% Iris Dmx Stage Light Dmx Theatre Lighting 400W High Brightness White LED

5%-100% Iris Dmx Stage Light Dmx Theatre Lighting 400W High Brightness White LED

100% Iris Dmx Stage Light

5 Iris dmx theatre lighting

400W high brightness dmx theatre lighting

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-BSW400F

Contact Us
Request A Quote
Product Details
Voltage:
AC100-240V 50/60Hz
Framing:
8 Facet & 4 Blades Framing Shutters Modules
Iris:
5%-100% Iris
Focus:
Electric Focus
Strobe:
0-25HZ/S With Multi Strobe Effects Zoom
Max Power:
550W
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Dmx Stage Light 400W LED BSW Framing Stage Light For The Stage Performance

Specifications:
Voltage: AC100-240V 50/60Hz
Max power: 550 W
Light source: 400W high brightness white LED LED
Dimmer: 0-100% linear dimmer
lifetime: 20000 hours
Strobe: 0-25HZ/S with multi strobe effects Zoom
range: 6-38 degree
Pan: 540°+ 16bit fine Tilt: 270°+ 16bit fine
Channel: 26 DMX Channel with RDM
Framing: 8 facet & 4 blades framing shutters modules
Color wheel: 7 colors+open
Rotation gobo wheel: 7 gobos+open with shake effect and bi-direction rotation
Frost: With frost to make soft wash effect
Prism: 3 facet prism with bi-direction rotation
Iris: 5%-100% Iris
Focus: Electric focus
Display: With 2.8 inch touch display
Fixture dimension: 396*290*694 mm
N.W: 25.6KG



Additional details:
Working principle:
1:LED light source to emit light: 400W LED BSW Framing uses high-power LED as the light source. When current passes through the LED chip, the LED will emit light.
2:Beam shaping: The light emitted by LED is designed and adjusted through precision-designed lenses and reflection systems to form different light spot effects, such as BEAM, SPOT and WASH.
3:Lamp body movement: Through the built-in motor and pan/tilt structure, the movement of the lamp body such as rotation, tilt and focus in horizontal and vertical directions is realized.

Technical principle:
1:LED drive circuit: Including regulated power supply, constant current driver, etc., to ensure that the LED works stably and provides the required current and voltage.
2:Optical system: It consists of lenses, reflectors, etc., which can shape and focus the light emitted by the LED to form the required beam effect.
3:Positioning system: Uses position sensors and encoders to detect the position of the pan/tilt in real time and provide accurate feedback signals to ensure the precise positioning of the lamp body.
4:Control system: Using a microprocessor and control chip, various parameters of the lamp can be accurately controlled, including light color, brightness, movement trajectory, etc.

Application:

1:Nightclubs/Bars: Used for stage performances and light shows in nightclubs, bars and other entertainment venues. Through its various lighting effect modes and adjustable focus functions, it brings a fashionable and dynamic lighting atmosphere to the venue and enhances the entertainment experience.
2:Theme Park: It is suitable for night performances, amusement projects, etc. in various theme parks. Through its various lighting effect modes and high brightness, it creates dreamy and fantastic lighting scenes for the park and enhances the immersion of tourists.



Service:
Provide after-sales service

display:

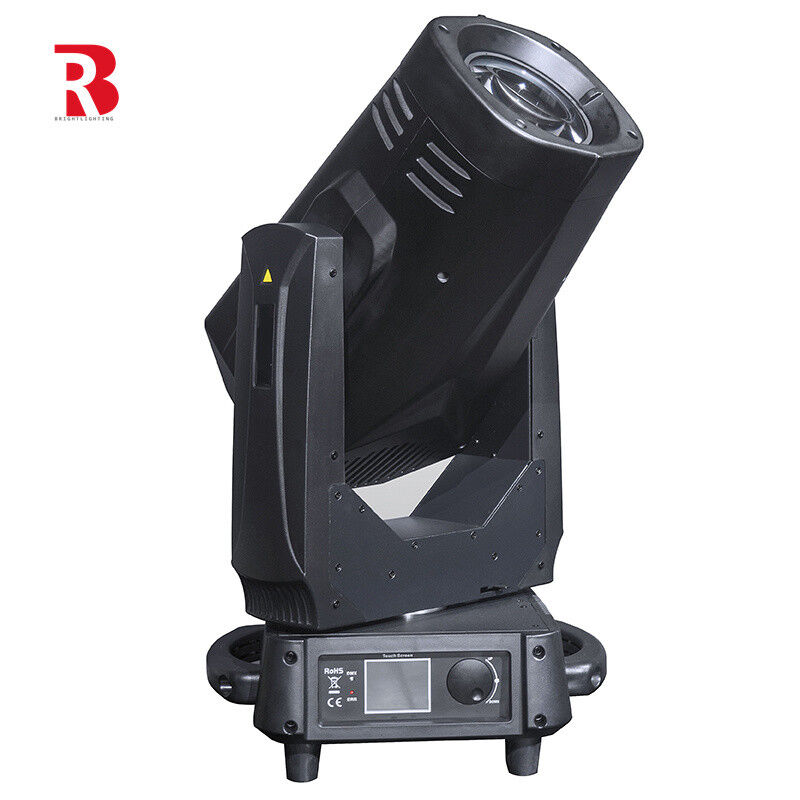

5%-100% Iris Dmx Stage Light Dmx Theatre Lighting 400W High Brightness White LED 0

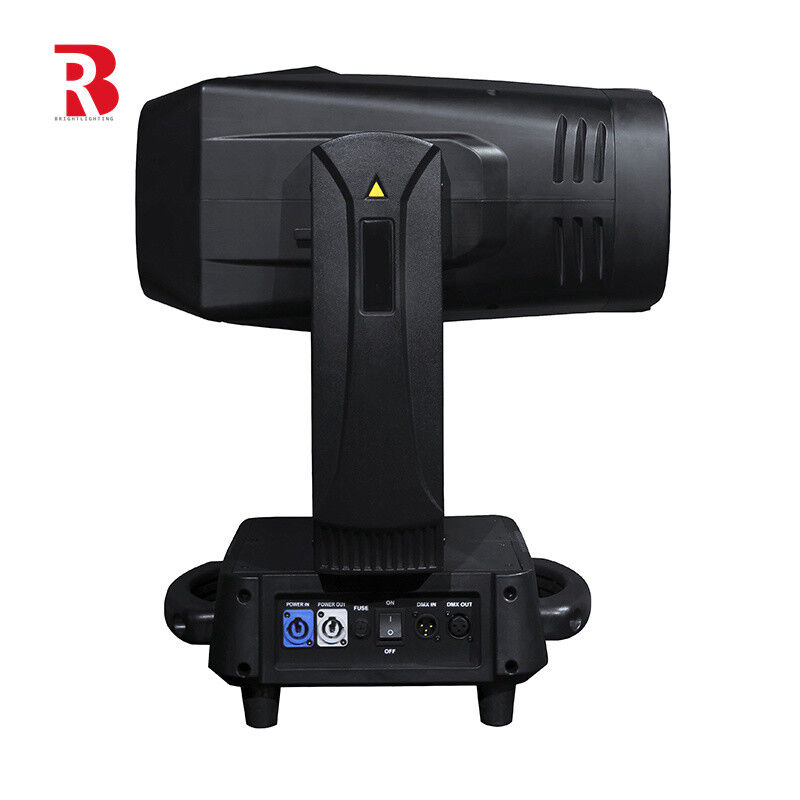

5%-100% Iris Dmx Stage Light Dmx Theatre Lighting 400W High Brightness White LED 1

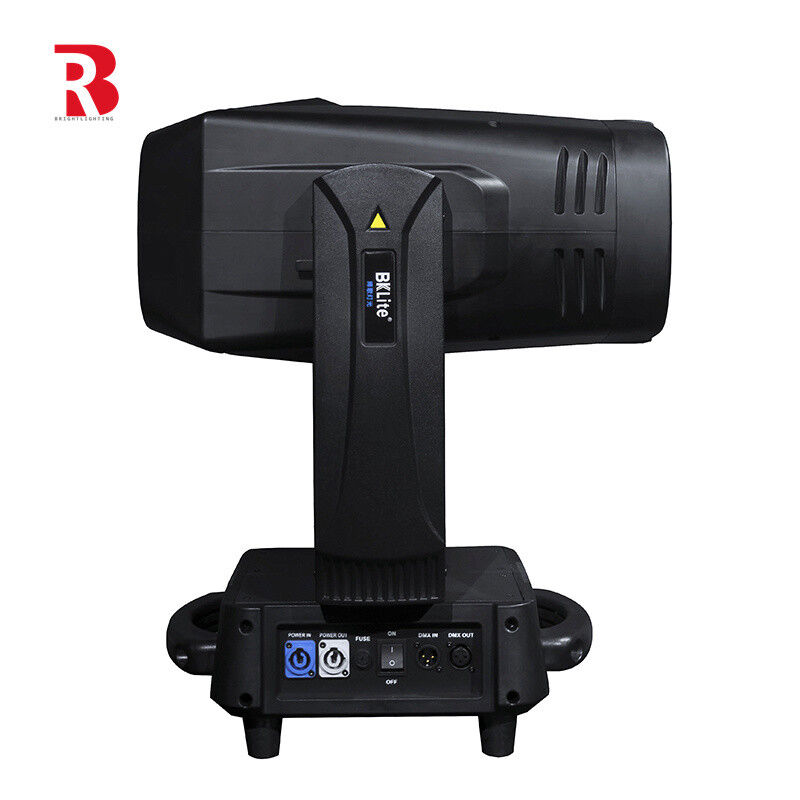

5%-100% Iris Dmx Stage Light Dmx Theatre Lighting 400W High Brightness White LED 2
