Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-BY1915Z

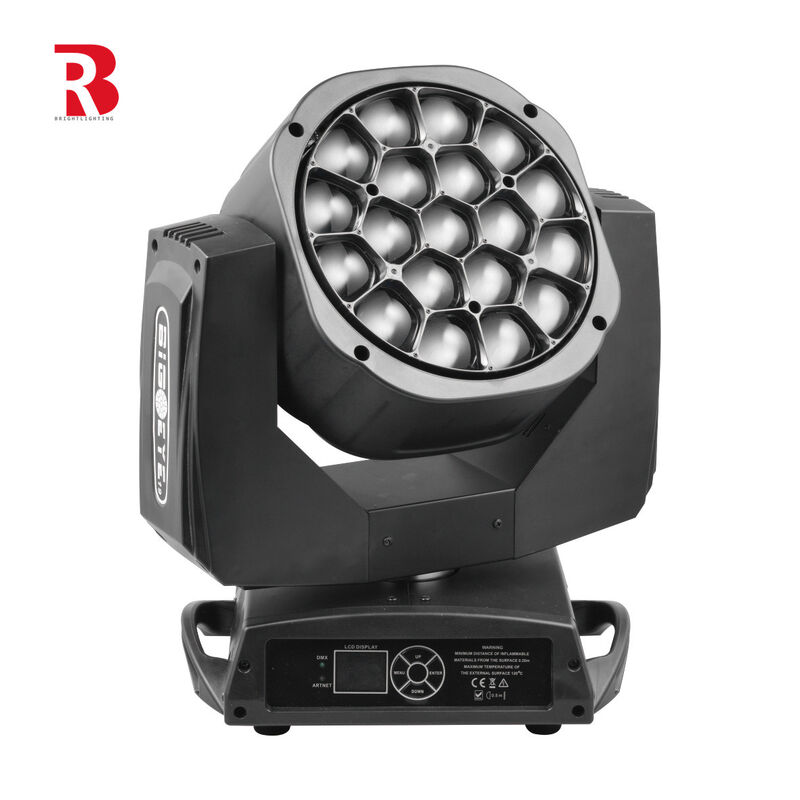

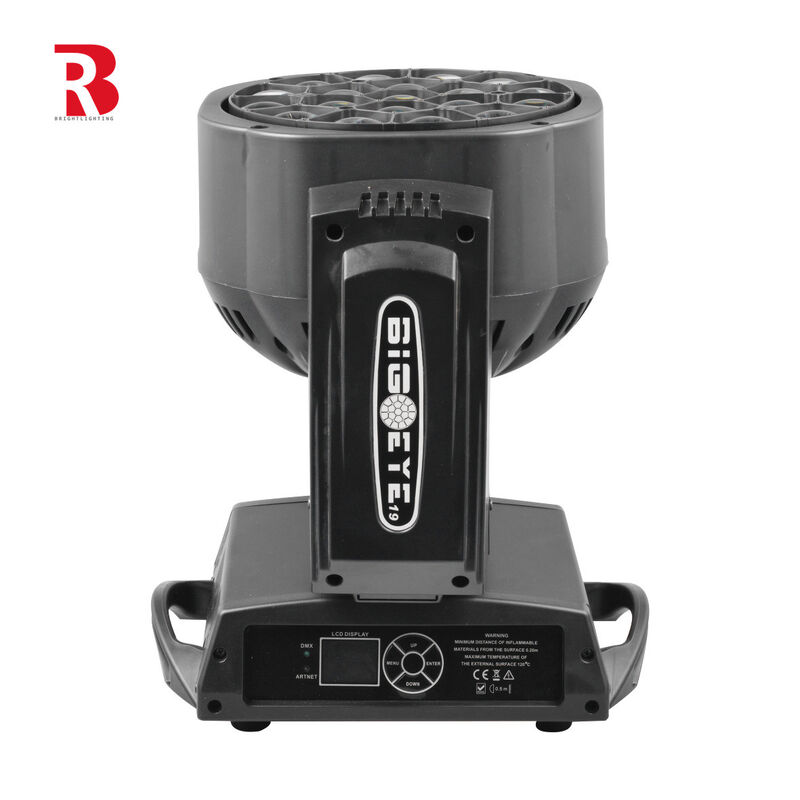

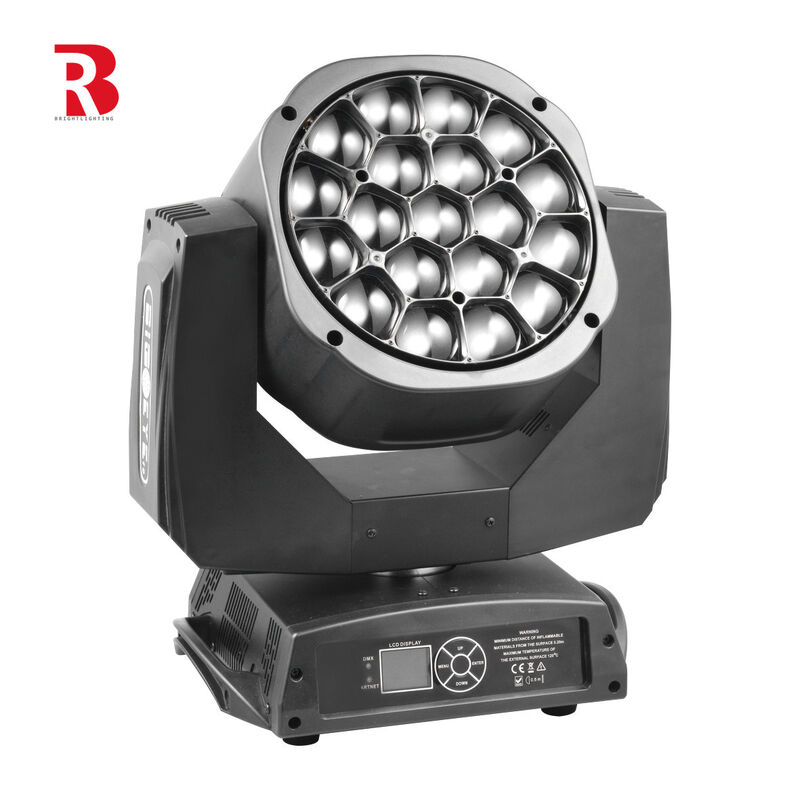

LED Moving Head Wash And Rotation 19pcs 15W 4-In-1 Beeye Light For Stage Show
| Special Points | 1. Each LED can be controlled individually. With unique honeycomb designed lens |
| 2. The front lens can rotate without limitation in forward and reverse direction to create amazing effects | |
| 3. Display screen can be turned upside down with 180°automatically to fit the installation in different place, Display can be equipped with rechargeable battery to set DMX address without power connection. | |
| 4. Can be used as beam, wash or effect light use (Kaleido effects) | |
| 5. The scanning position can be memory, it will be automatically reset without expected movement after rotation. | |
| 6. Fan cooling (fan will be change the speed with the temperature variation).Temperature detecting system (If the temperature detected error, the light will stop working to protect the fixture) | |
| 7. Fast speed with 3 phase motors on Pan and Tilt |
| Voltage: | AC100V～240V 50-60HZ |
| Power: | 450W |
| LED Source: | 19x15W high power RGBW 4 in 1 LEDs Zoom: 4-60°Strobe: 0-20Hz |
| Tilt: | 270°+16 bit fine |
| Control Mode: | DMX512,Sound-actived,Master/slave |
| DMX Channels: | 21 CH/23 CH/35 CH/78 CH/92 CH/97 CH/99 CH |
| Dimmer: | 0-100% linear dimmer |
| Pan: | 540°+16 bit fine |
| Display: | LCD colorful display |
| IP: | IP20 |
| Fixture dimension: | 415*275*425 mm |
| Carton package Size: | 53*42*51CM (1pcs/ctn) |
| N.W: | 14.95 Kg |
| G.W: | 18.1Kg |
| Rechargeable Battery: | Optional |
| Strobe: | 0-20Hz |
Working principle:
1:LED light: LED Beeye Stage Light uses LED as the light source. When current passes through the LED chip, the LED chip emits visible light.
2:Light color mixing: Using a variety of built-in LED lamp beads, different colors can be mixed and emitted through the control system, thus presenting rich color effects.
3:Dimming control: By adjusting the size of the current, the LED brightness can be accurately controlled to achieve the dimming effect.
Technical principles
1:LED technology: LED (Light Emitting Diode) is a semiconductor device that excites and releases energy to produce light through the combination of electrons and forward voltage.
2:PWM dimming technology: Using the pulse width modulation (PWM) principle, by changing the length of the LED power-on time, the brightness of the LED is controlled to achieve the dimming function
