Name: BSW 400W 3 In 1 Moving Head Stage Light CMY CTO Wash Stage Light For DJ
Brand: Guangzhou Bright Electronic Co.Ltd
SKU: BR-BSW400C
Availability: InStock

Home > products > Moving Head Light >

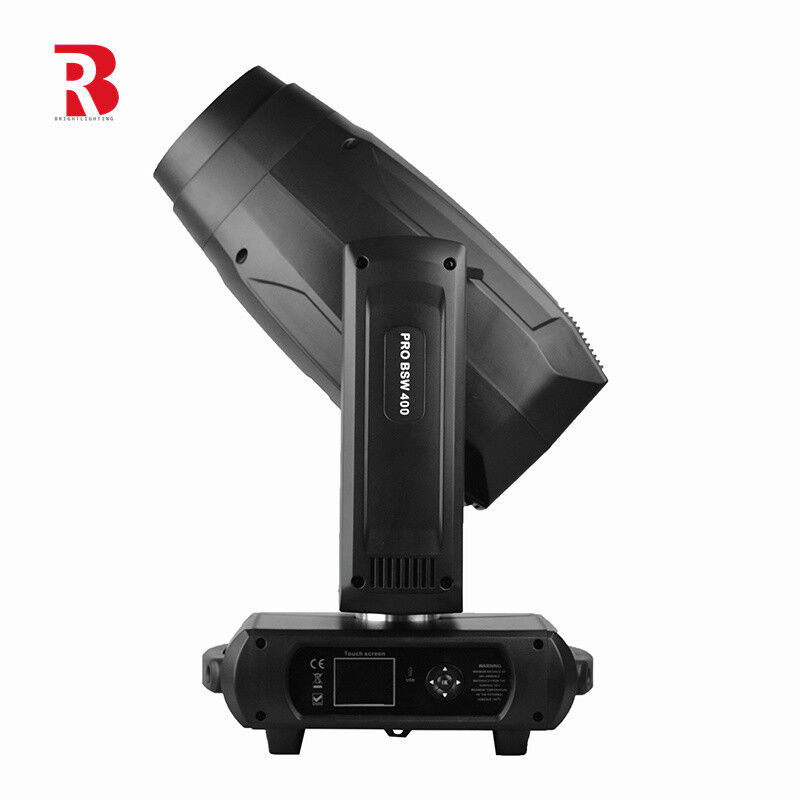

BSW 400W 3 In 1 Moving Head Stage Light CMY CTO Wash Stage Light For DJ

BSW 400W 3 in 1 Moving Head Stage Light

CMY CTO Wash Stage Light For DJ

BSW 400W 3 in 1 moving head

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-BSW400C

Request A Quote

Product Details

Max Power:

500W

Light Source:

400W High Brightness White LED

Voltage:

AC100-240V 50/60Hz

LED Lifetime:

Average 50000 Hours

Pan:

540°+ 16bit Fine

Tilt:

270°+ 16bit Fine

Dimmer:

0-100% Linear Dimmer

Strobe:

0-25HZ/S With Multi Strobe Effects

Payment & Shipping Terms

Minimum Order Quantity

1 Sets

Price

Negotiable

Packaging Details

Carton Flightcase

Delivery Time

7-15days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

3000PCS per month

Mini 1000W BSWF Profile Moving Head Light With 270° Tilt Pattern Plate

Get Best Price

Mini 1000W BSWF Profile Moving Head Light With 540° Pan Pattern Plate And IP20

Get Best Price

Professional Stage Mini 1000W BSWF Profile Moving Head Light For Event

Get Best Price

Video

Beam Moving Head Light 120W Dynamic Beam Laser Ultra Smooth Dimming

Get Best Price

Contact Now

Product Description

BSW 400W LED Three-In-One Moving Head Light CMY+CTO Wash Stage Light For DJ

Specifications:

Voltage	AC100-240V 50/60Hz
Max power:	500 W
Light source:	400W high brightness white LED
LED lifetime:	Average 50000 hours
Dimmer:	0-100% linear dimmer
Strobe:	0-25HZ/S with multi strobe effects
Zoom range:	3-45 degree
Pan:	540°+ 16bit fine
Tilt:	270°+ 16bit fine
Channel:	25 DMX Channel with RDM
Color wheel:	8 colors+open
CMY:	CMY infinite color mixture
CTO:	Linear CTO
Static gobo wheel:	10 gobos+open with shake effect and bi-direction rotation
Rotation gobo wheel:	8 gobos+open with shake effect and bi-direction rotation
Frost:	With frost to make soft wash effect
Prism:	3 facet prism with bi-direction rotation
Focus:	Electric focus
Display:	With 2.8 inch LCD display
N.W:	21.3KG
Fixture dimension:	365290665 mm

Additional details:

Working principle:
1:Light source: Moving head lights usually use high-brightness metal halide bulbs or LEDs as light sources. When electric current passes through a light bulb or LED, an intense light is produced.
2:Reflection system: The light is focused into a cone-shaped beam through a carefully designed reflection system for projection of lighting effects.
3:PTZ control: The moving head light has a built-in motor and PTZ structure, which can rotate and tilt in horizontal and vertical directions. The motor drives the pan/tilt for precise position adjustment.

Working principle details:
1:After receiving the control signal, the control system adjusts the speed and direction of the motor according to the instructions, so that the gimbal can complete specific rotation and tilt actions.
2:Built-in sensors and encoders constantly monitor the position of the gimbal, ensuring precise positioning while avoiding collisions and exceeding the rotatable range.
3:By outputting different PWM signals from the control system, the brightness of the bulb or LED can be precisely controlled to achieve colorful lighting effects.

Application:

1:Stage plays and theater performances: These lights can add vivid visual effects to storylines and atmosphere changes on stage through precise control and movement capabilities.

2:Clubs and nightclubs: In entertainment venues, MOVING HEAD STAGE LIGHT is often used to match the music rhythm to create impressive light shows and visual effects, enhancing the atmosphere and joy of the scene.

Service:

Provide after-sales service

display:

BSW 400W 3 In 1 Moving Head Stage Light CMY CTO Wash Stage Light For DJ 0
