700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED

700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED

700W LED BSWF profile spot led

138mm Frontal Lens profile spot led

700W LED BSWF LED Moving Head Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO

Model Number:

BR-700F

Contact Us
Request A Quote
Product Details
Product Name:
Moving Head
Material:
Aluminum Alloy
Housing Color:
Black
Application:
Concert Wedding Event Theater Etc.
Type:
Moving Head
Light Source:
700W LED Module
IP Rate:
IP55
Pan/Tilt:
540°/270° (16 Bit Precision Scanning)
Working Lifetime:
20000
Fixed Color:
7 Colors + Open Position
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
700W LED BSWF moving profile 138mm Frontal lens for greater performance moving head stage light


Specifications:


Input voltage: AC100-240V, 50/60Hz
Rated power: 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position







Notices:

⦁ 1. Open the packaging, check the products carefully, and take them gently.
⦁ 2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
⦁ 3. It must be three-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.
⦁ 4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
⦁ 5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.



Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

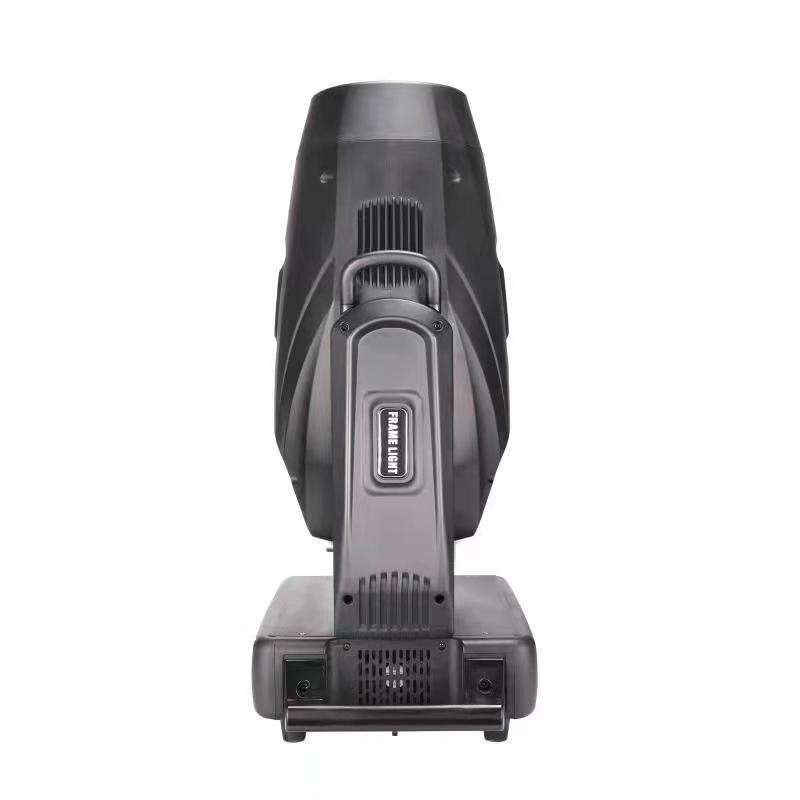

700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED 0

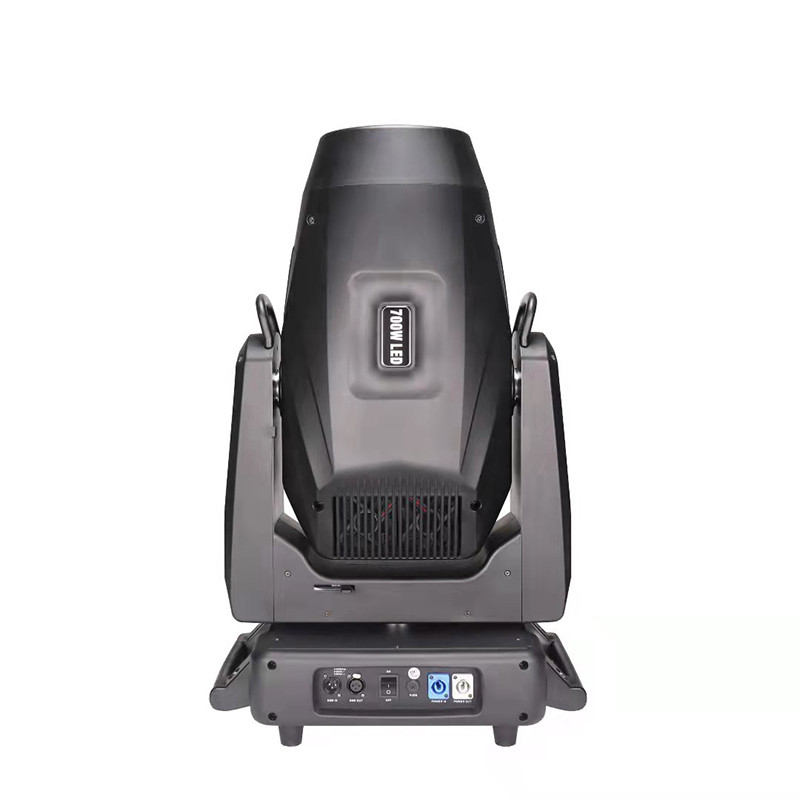

700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED 1

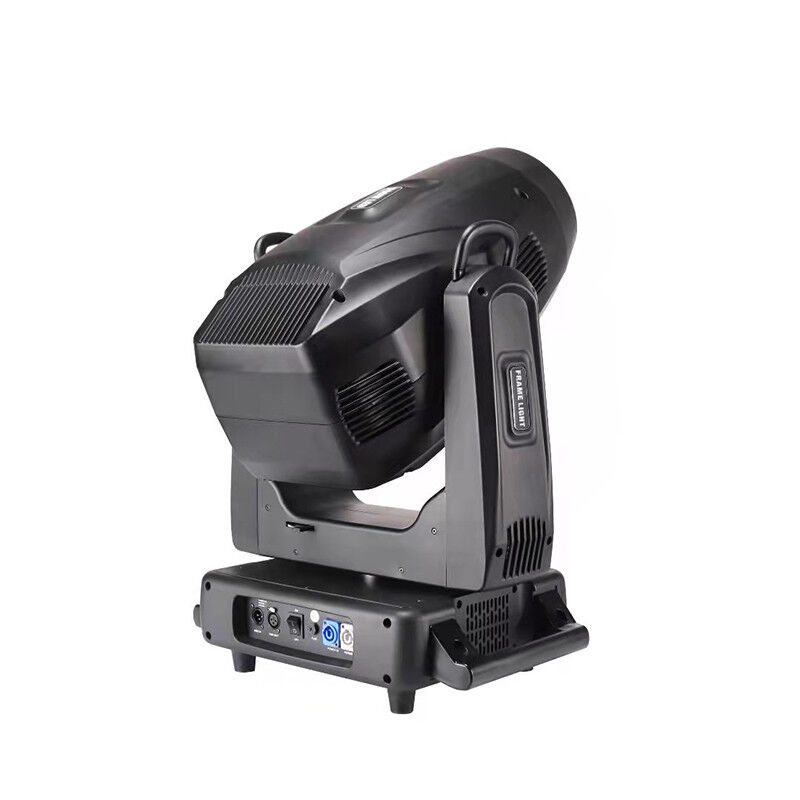

700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED 2

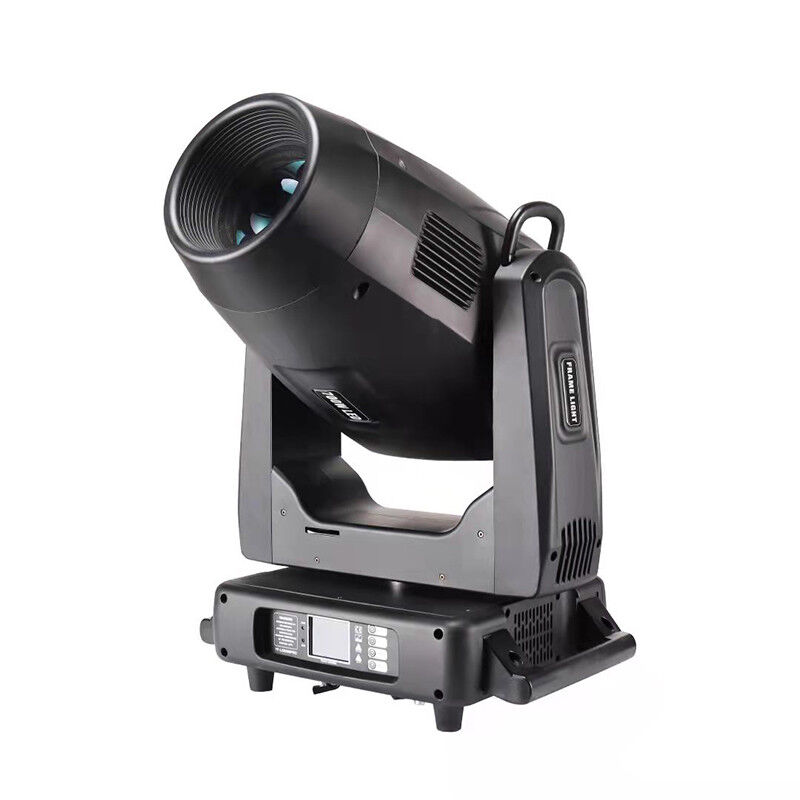

700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED 3


700W LED BSWF 138mm Frontal Lens LED Moving Head Stage Light Profile Spot LED 4
