Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree

Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree

Electric focus beam bsw 550W

Electric focus led moving head 550W zoom

led moving head zoom 38 degree

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-BSW400F

Contact Us
Request A Quote
Product Details
Voltage:
AC100-240V 50/60Hz
Framing:
8 Facet & 4 Blades Framing Shutters Modules
Light Source:
400W High Brightness White LED LED
Focus:
Electric Focus
Display:
With 2.8 Inch Touch Display
Frost:
With Frost To Make Soft Wash Effect
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Stage Light 400W LED BSW Framing Stage Light For DJ Disco Party Clubs

Specifications:
Voltage: AC100-240V 50/60Hz
Max power: 550W
Light source: 400W high brightness white LED LED
Dimmer: 0-100% linear dimmer
lifetime: 20000 hours
Strobe: 0-25HZ/S with multi strobe effects Zoom
range: 6-38 degree
Pan: 540°+ 16bit fine Tilt: 270°+ 16bit fine
Channel: 26 DMX Channel with RDM
Framing: 8 facet & 4 blades framing shutters modules
Color wheel: 7 colors+open
Rotation gobo wheel: 7 gobos+open with shake effect and bi-direction rotation
Frost: With frost to make soft wash effect
Prism: 3 facet prism with bi-direction rotation
Iris: 5%-100% Iris
Focus: Electric focus
Display: With 2.8 inch touch display
Fixture dimension: 396*290*694 mm
N.W: 25.6KG



Additional details:
How to operate:
Parameters and trajectories can be adjusted through a dedicated control panel or software interface, and lighting can also be controlled through DMX control, automatic programs or music triggering.

Precautions:
1:Safe use: Avoid looking directly at strong light to prevent eye damage.
2:Maintenance: Regularly clean the surface of the lamp and the radiator to ensure normal heat dissipation and stable operation.
3:Waterproof and dustproof: Choose appropriate protective measures according to the use environment to keep the equipment dry and clean.
4:Electrical safety: Connect the power supply strictly in accordance with electrical standards and ensure that the equipment is well grounded and insulated.

Technical principle:
LED drive circuit: Including regulated power supply, constant current driver, etc., to ensure that the LED works stably and provides the required current and voltage.
Optical system: It consists of lenses, reflectors, etc., which can shape and focus the light emitted by the LED to form the required beam effect.
Positioning system: Uses position sensors and encoders to detect the position of the pan/tilt in real time and provide accurate feedback signals to ensure the precise positioning of the lamp body.

Application:

1:Film shooting: In film and television production, 400W LED BSW Framing can be used for stage lighting settings, special scene lighting, etc. Through its precise imaging and flexible modeling capabilities, it can provide rich and colorful lighting effects for film and television works.
2:TV programs: Used for stage lighting design of live TV broadcasts, variety shows, etc., through its multiple lighting effect modes and adjustable focus functions, it can provide professional and fashionable lighting effects for the program site.



Service:
Provide after-sales service

display:

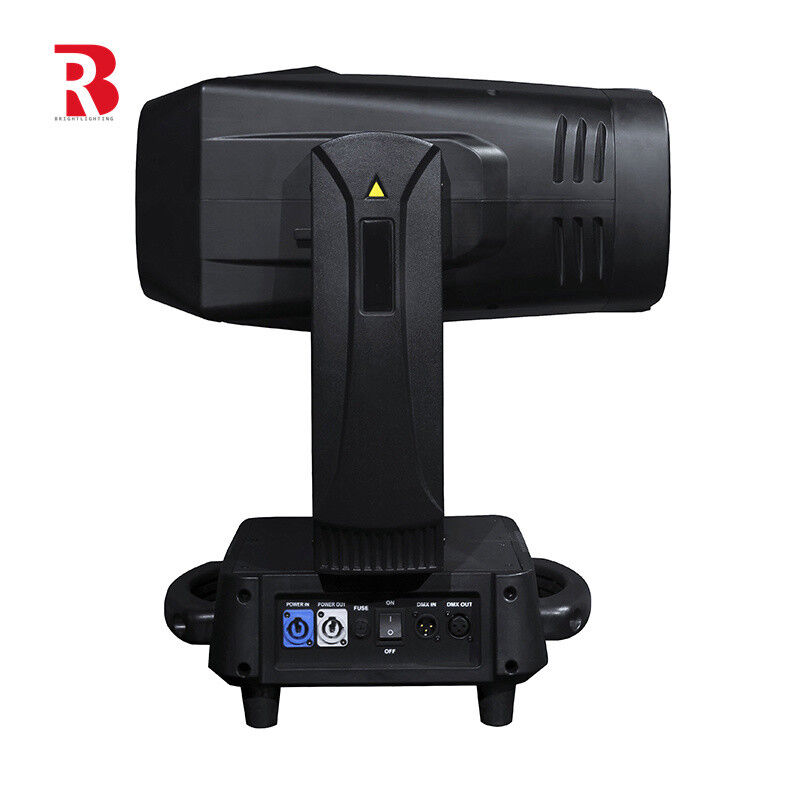

Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree 0

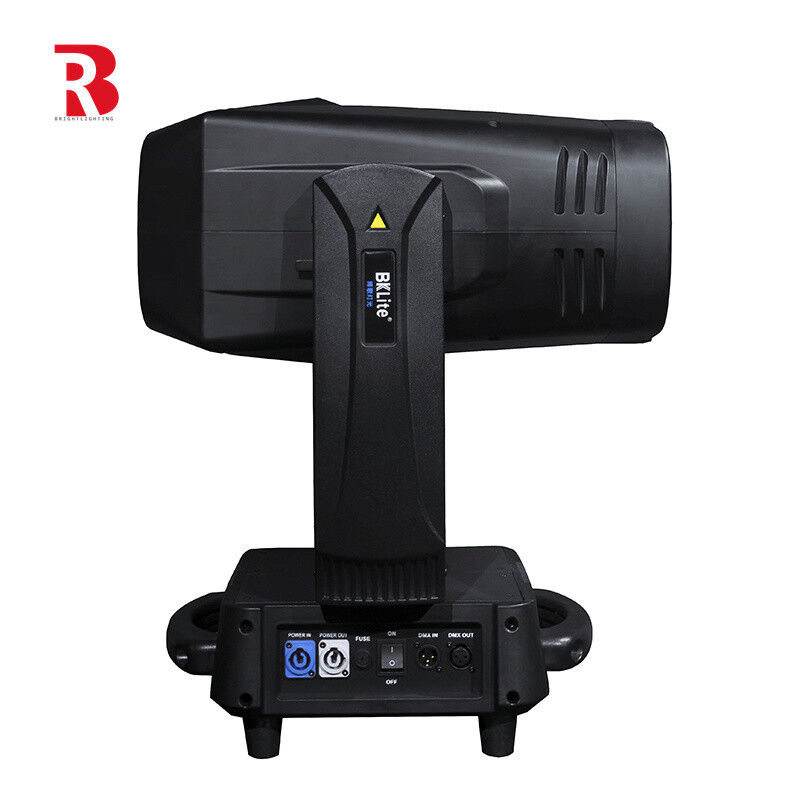

Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree 1

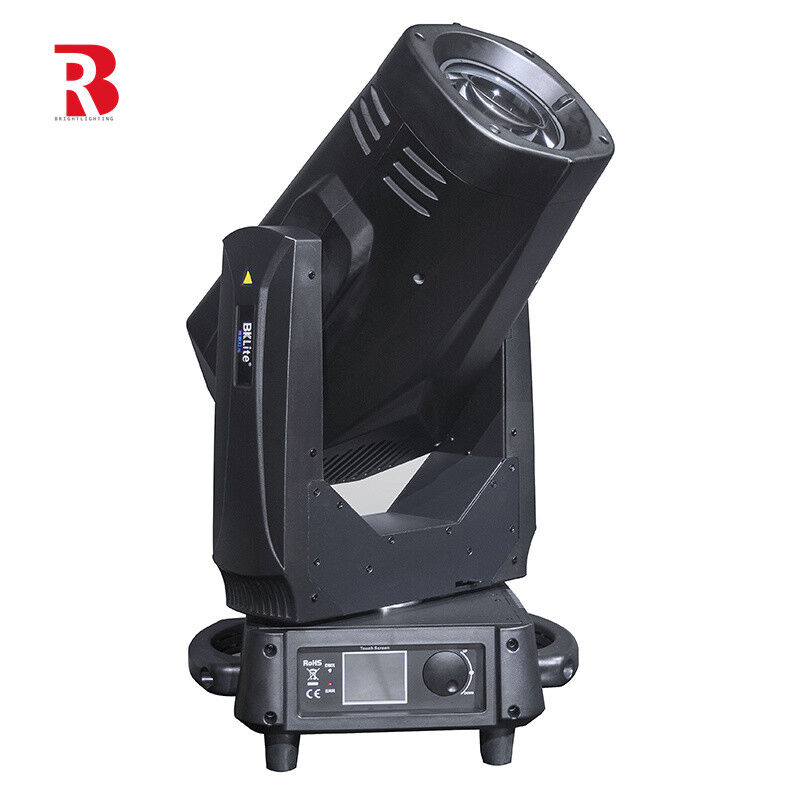

Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree 2
