Mini Wash 600W LED Module Framing Projector Track Light 24000LM

Mini Wash 600W LED Module Framing Projector Track Light 24000LM

600W LED module framing projector track light

framing projector track light 24000LM

mini wash led 24000LM

Place of Origin:


Brand Name:

Bright lighting


CE ISO9000

Model Number:


Contact Us
Request A Quote
Product Details
Input Voltage:
AC100-240V, 50/60Hz
Rated Power:
Light Source:
600W LED Module
LED Life:
20,000 Hours
Color Temperature:
138mm Frontal Lens For Greater Performance
Color Rendering Index:
Standard Mode Ra>72, High CRI Mode Ra>90
Luminous Flux:
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Packaging Details
Carton Flightcase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Professional CMY-CTO Lighting 600W BSWF Led Moving Head Framing Stage Light
Input voltage: AC100-240V, 50/60Hz
Rated power: 900W
Light source: 600W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>72, high CRI mode Ra>90
Luminous flux: 24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 3-faced prism
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 7 fixed gobos+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 22.9mm, effective diameter 16mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 424*286*770(mm)
Carton size: 730*690*590 (mm)
Product net weight: 35KG
Product gross weight: 4.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp
Additional details:
1:600W LED light source: High-brightness LED light source provides powerful lighting effects.
2:Moving Head design: It can achieve precise positioning and dynamic movement of lights, adding vitality to stage performances.
3:Multiple lighting effects: Combine three lighting effects: Beam, Spot, and Wash to meet different stage lighting needs.
4:Framing system: Equipped with precise pattern imaging and special shape projection functions to create diverse visual effects.
5:High-speed dimming function: Built-in multiple colors, dynamic effects and high-speed dimming function to create rich light and shadow effects.

1:Stage performance: Suitable for all types of concerts, dramas, dance performances and other stage performances, providing rich lighting effect support for actors or musicians.

2:Large-scale event venues: It can be used for large-scale indoor and outdoor activities such as celebrations, exhibitions, sports events, etc., providing powerful lighting support for the entire venue.


Provide after-sales service

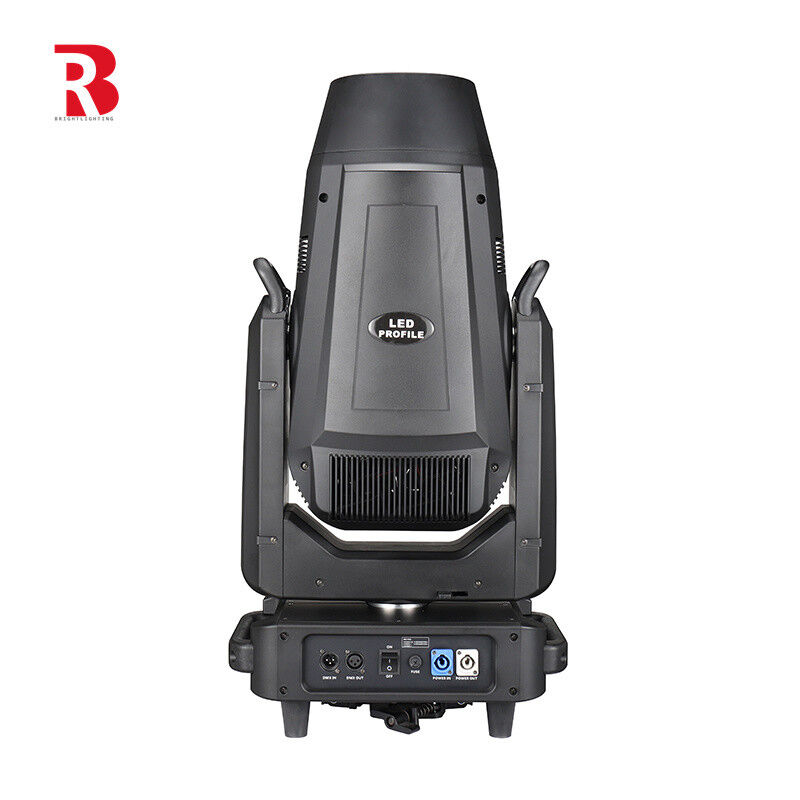

Mini Wash 600W LED Module Framing Projector Track Light 24000LM 0

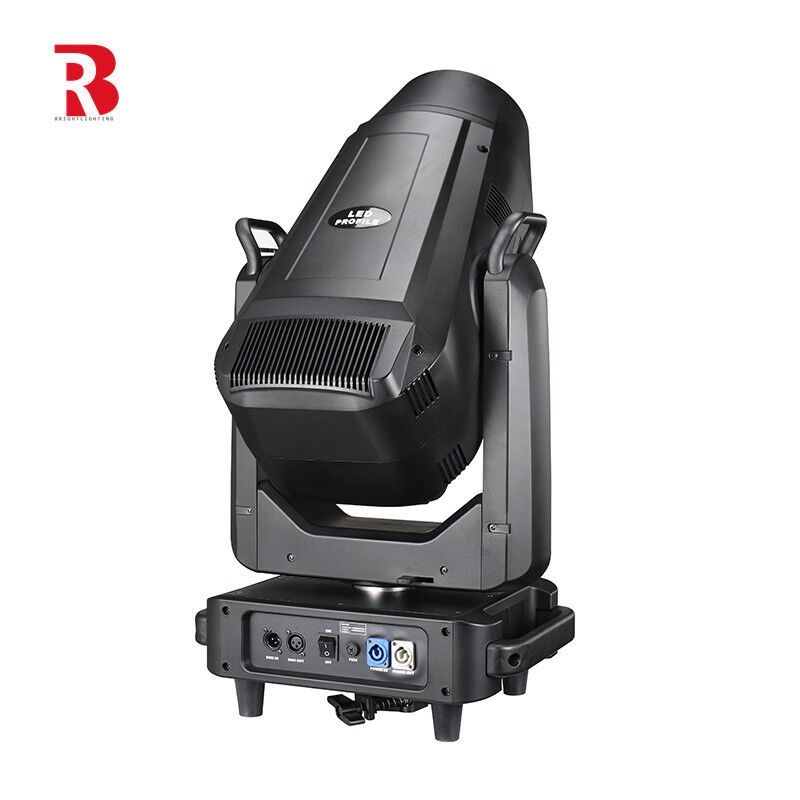

Mini Wash 600W LED Module Framing Projector Track Light 24000LM 1

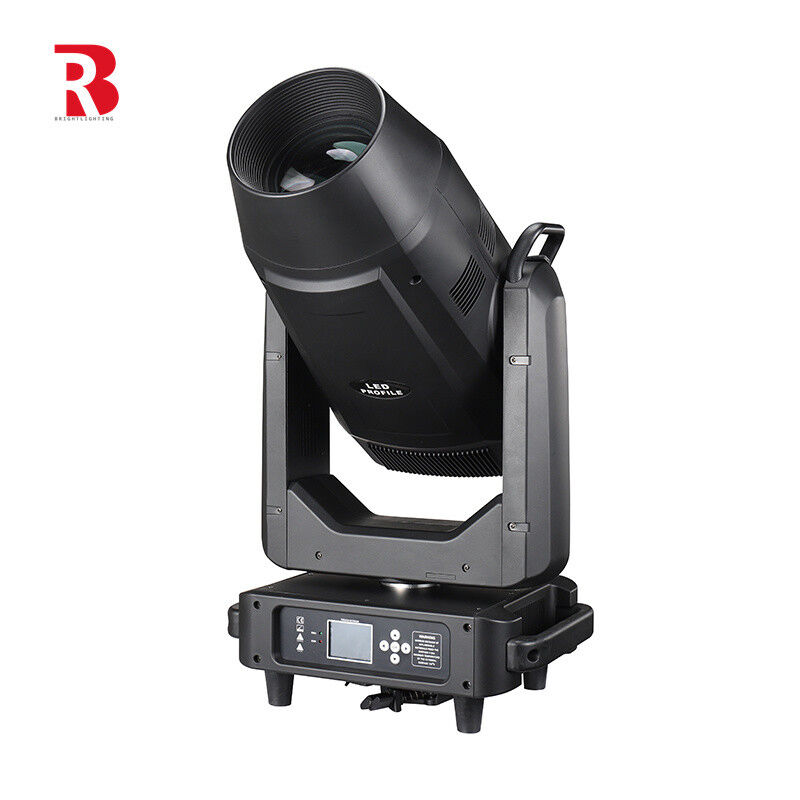

Mini Wash 600W LED Module Framing Projector Track Light 24000LM 2
