700W BSWF Profile Moving Head Ellipsoidal Stage Light AC100-240V 50/60Hz

700W BSWF Profile Moving Head Ellipsoidal Stage Light AC100-240V 50/60Hz

700W BSWF ellipsoidal stage light

profile moving head AC100V 50Hz

700W BSWF profile moving head

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-700F

Contact Us
Request A Quote
Product Details
Protection Rate:
IP20
Strobe System:
The Highest Frequency Can Reach 25Hz, And Random Strobe And Pulse Strobe Can Be Selected
Working Environment:
0-45℃
Beam Aperture:
4.5°~50° Fast Motorized Linear Zoom
Nput Voltage:
AC100-240V, 50/60Hz
Light Source:
700W LED Module
LED Life:
20,000 Hours
Product Appearance:
Flame Retardant, High Temperature Resistance, Folding Clamp
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
700W BSWF Led Moving Head Framing Light Spot Light Ellipsoidal Stage Light

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: : flame retardant, high temperature resistance, folding clamp

Additional details:
How to operate:
1:Power-on test: Before using it for the first time, make sure the product is normal and turn on the power supply for testing.
2:Controller settings: Set the required light effect, color and other parameters through the matching controller.
3:Installation and fixation: According to the needs of the site and scenery requirements, select the appropriate installation method and location, and fix the lamps.


Application:

1:Film and television shooting: As auxiliary lighting equipment on film and television sets, it can meet the needs of different shooting scenes.

2:Sports events: Used in stadiums or stadiums to provide lighting effects for competitions and recognition sessions, stimulating enthusiasm for athletes and spectators

Service:
Provide after-sales service

display:

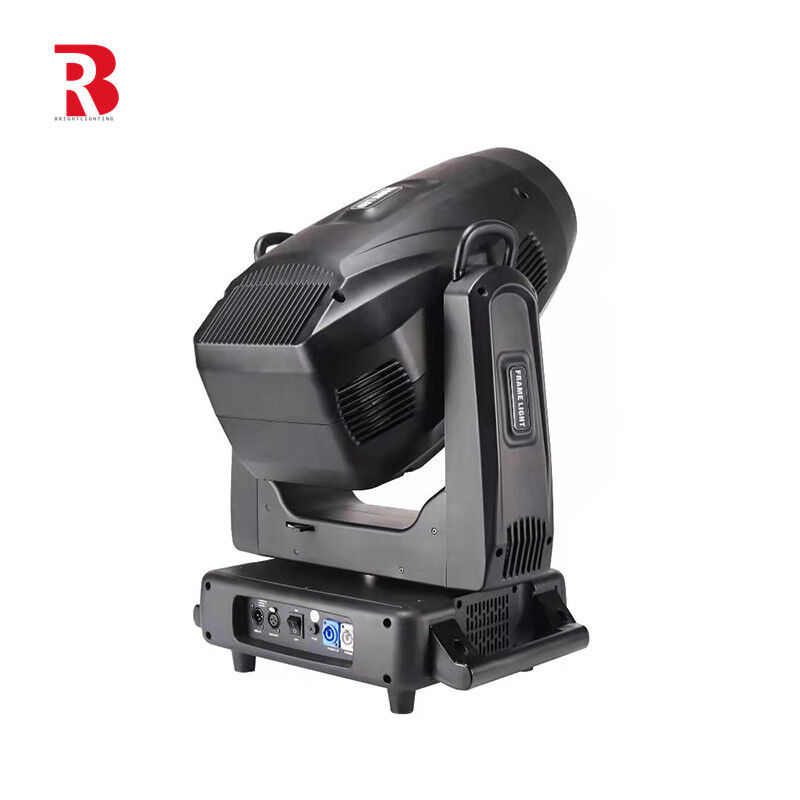

700W BSWF Profile Moving Head Ellipsoidal Stage Light AC100-240V 50/60Hz 0

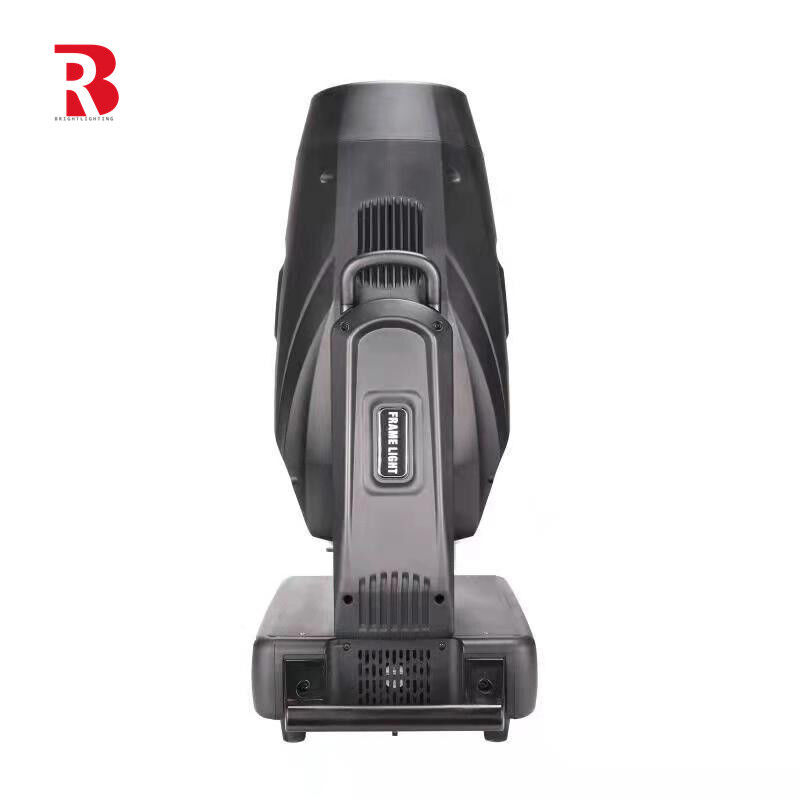

700W BSWF Profile Moving Head Ellipsoidal Stage Light AC100-240V 50/60Hz 1

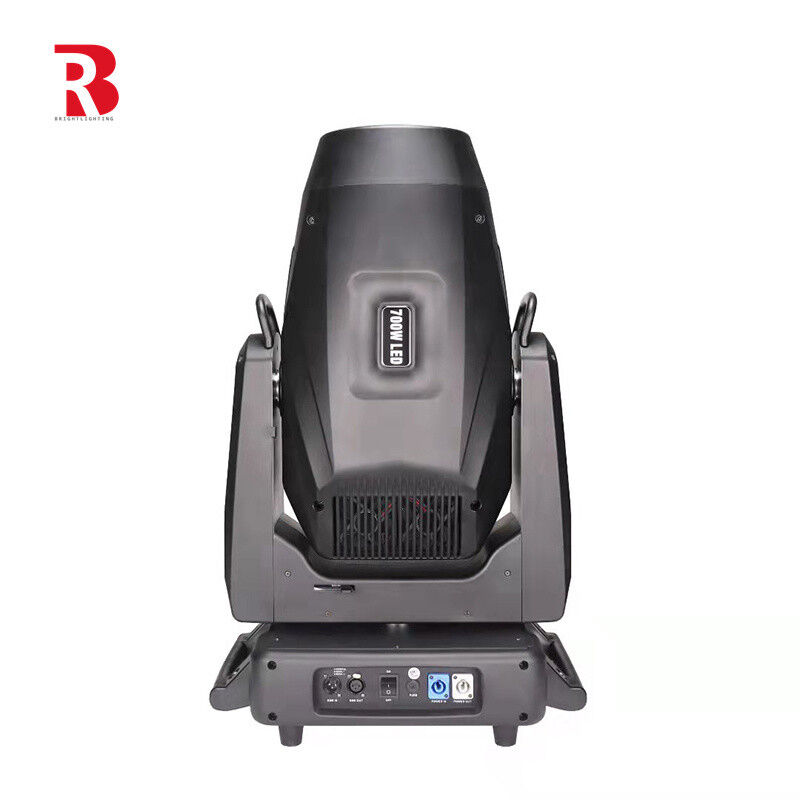

700W BSWF Profile Moving Head Ellipsoidal Stage Light AC100-240V 50/60Hz 2
