Dmx512 700W BSWF LED Profile Moving Light Moving Head Profile 6800K

Dmx512 700W BSWF LED Profile Moving Light Moving Head Profile 6800K

Dmx512 700W led profile moving light

led profile moving light 6800K

Dmx512 700W moving head profile

Place of Origin:


Brand Name:

Bright lighting


CE ISO9000

Model Number:


Contact Us
Request A Quote
Product Details
Control Mode:
DMX512, RDM, Auto Mode, Master-slave, Sound Activation
Rated Power:
Nput Voltage:
AC100-240V, 50/60Hz
Framing System:
4 Individually Positionable Shutter Blades, Each Piece Can Be Closed Separately And Can Be Rotated +/- 90°
LED Life:
20,000 Hours
Frost System:
0~100% Linear Atomization
540° (16 Bit Precision Scanning)
270° (16 Bit Precision Scanning)
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Packaging Details
Carton Flightcase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Dmx512 700W BSWF Led Moving Head Framing Stage Light Beam Light For DJ Clubs
Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: : flame retardant, high temperature resistance, folding clamp
Additional details:
Technical principles:
1:LED light source technology: Using high-power, high-brightness LED light sources, the LED chips are excited by current to emit visible light.
2:Optical system technology: Using precision lens combination and reflector design to focus the LED light source into a high-brightness, high-definition beam.
3:Control system technology: Built-in high-performance control system, including DMX control, automated program control and other methods, can realize complex lighting effect switching and adjustment.

1:Entertainment venues: including nightclubs, bars, KTV and other entertainment venues, providing them with diverse and dynamic lighting effects to attract customers.

2:Religious ceremonies: Used for liturgical ceremonies and celebrations in churches, temples and other religious places to provide lighting support for religious activities.


Provide after-sales service

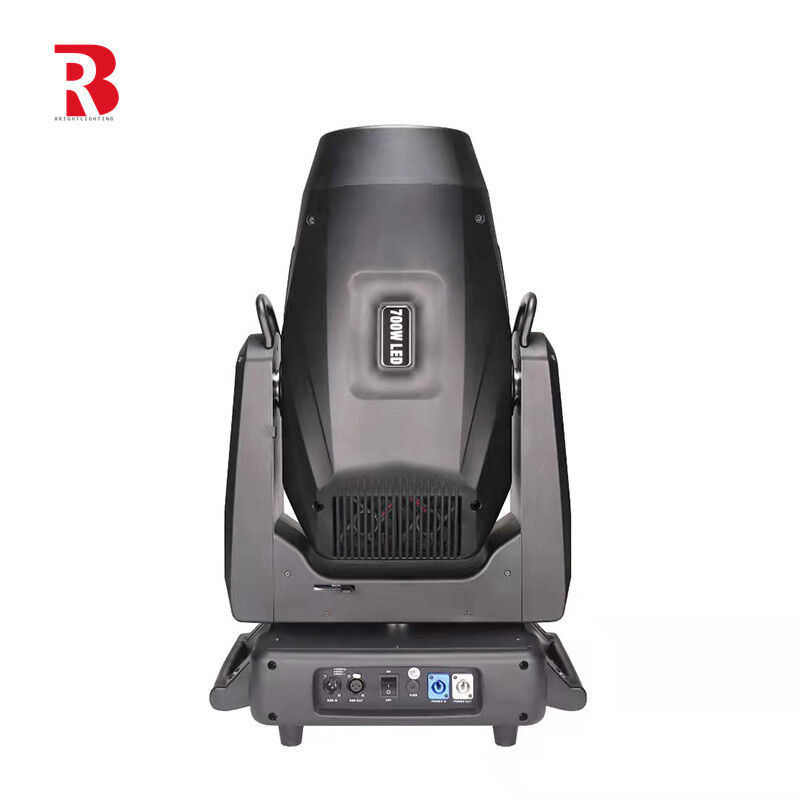

Dmx512 700W BSWF LED Profile Moving Light Moving Head Profile 6800K 0

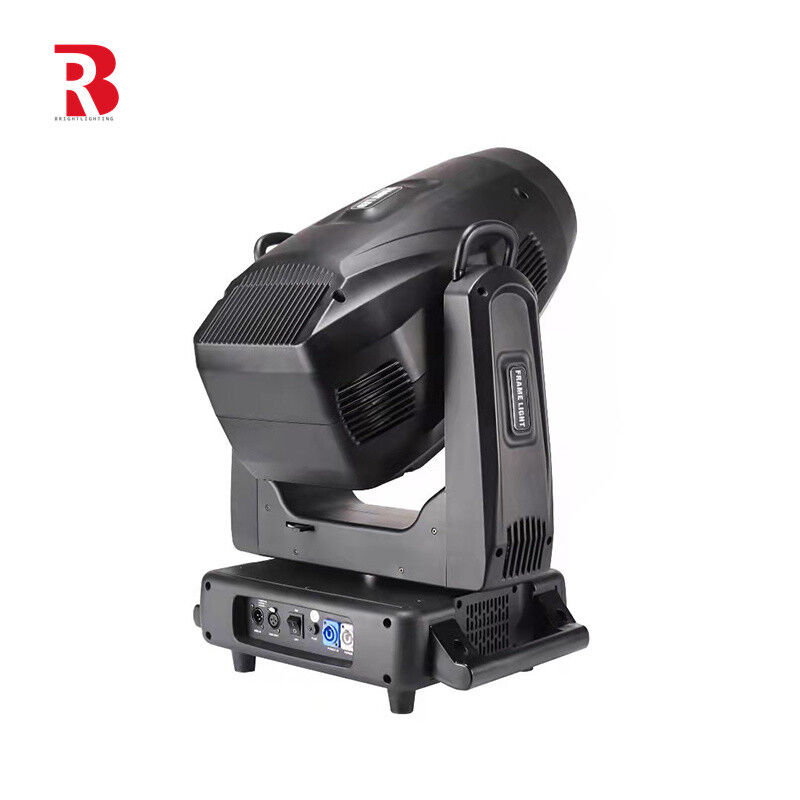

Dmx512 700W BSWF LED Profile Moving Light Moving Head Profile 6800K 1

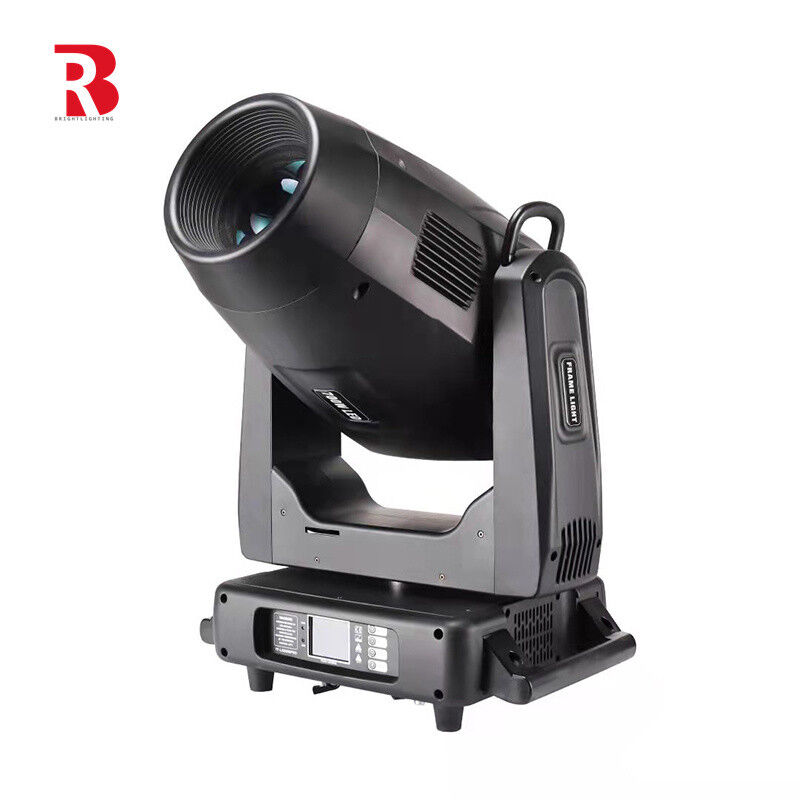

Dmx512 700W BSWF LED Profile Moving Light Moving Head Profile 6800K 2
