6800K Beam Led Moving Head LED Profile Spot Light 7 Colors 980W

6800K Beam Led Moving Head LED Profile Spot Light 7 Colors 980W

6800K LED Profile Spot Light

LED Profile Spot Light 980W

6800K beam led moving head

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-700F

Contact Us
Request A Quote
Product Details
Light Source:
700W LED Module
Rated Power:
980W
LED Life:
20,000 Hours
Nput Voltage:
AC100-240V, 50/60Hz
Product Size:
510*345*800(mm)
Carton Size:
730*690*590 (mm)
Product Net Weight:
40KG
Product Gross Weight:
48.5KG
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
700W LED Module BSWF Led Moving Head Profile Stage Light Wash Zoom Light

Specifications:

Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp
Additional details:
Working principle
1:LED light: When current passes through the LED chip, the LED chip emits visible light. The combination of LED chips of different colors can present rich lighting colors.
2:Moving system: Using a Moving Head design, including a rotating structure on both horizontal and vertical axes, it can achieve fast and precise light positioning and movement.
3:Lighting effects: Combining the three lighting effects of Beam, Spot, and Wash, different beam shapes and motion trajectories can be achieved through built-in programs or external controllers.
4:Framing system: equipped with a special pattern imaging device, which can achieve precise pattern imaging and special-shaped projection, increasing the visual impact.
5:Dimming and color control: Through PWM dimming technology and RGB mixing technology, precise control of LED brightness and color can be achieved


Application:

1:Fashion show: suitable for fashion shows, fashion conferences and other activities, using lighting effects to enhance the display effect of clothing and models.

2:Theme parks: Provide scenery lighting and special effects presentations for theme parks, amusement parks, etc. to enhance tourists’ viewing experience.



Service:
Provide after-sales service

display:

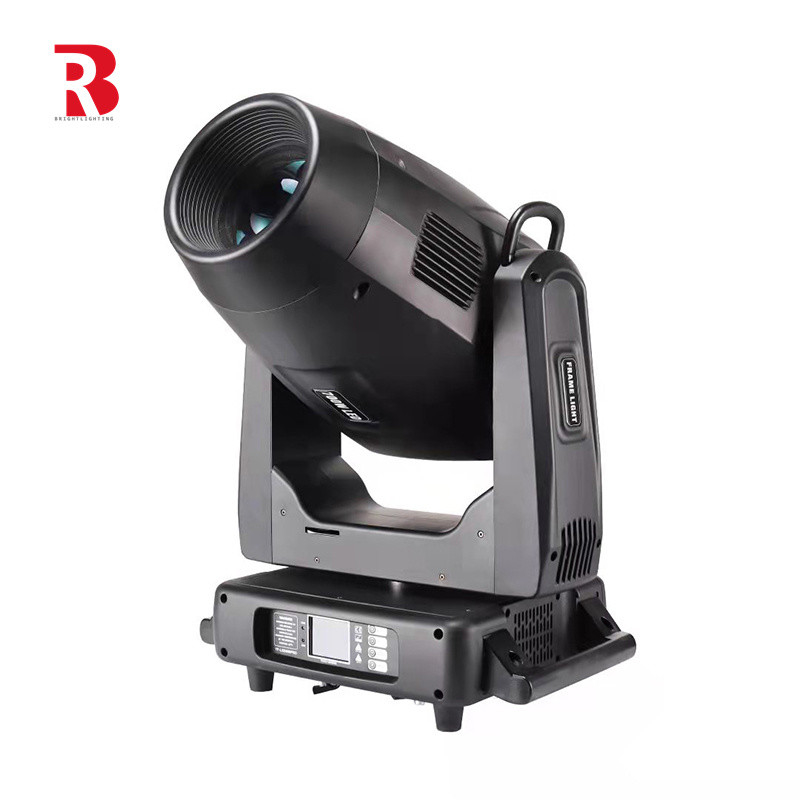

6800K Beam Led Moving Head LED Profile Spot Light 7 Colors 980W 0

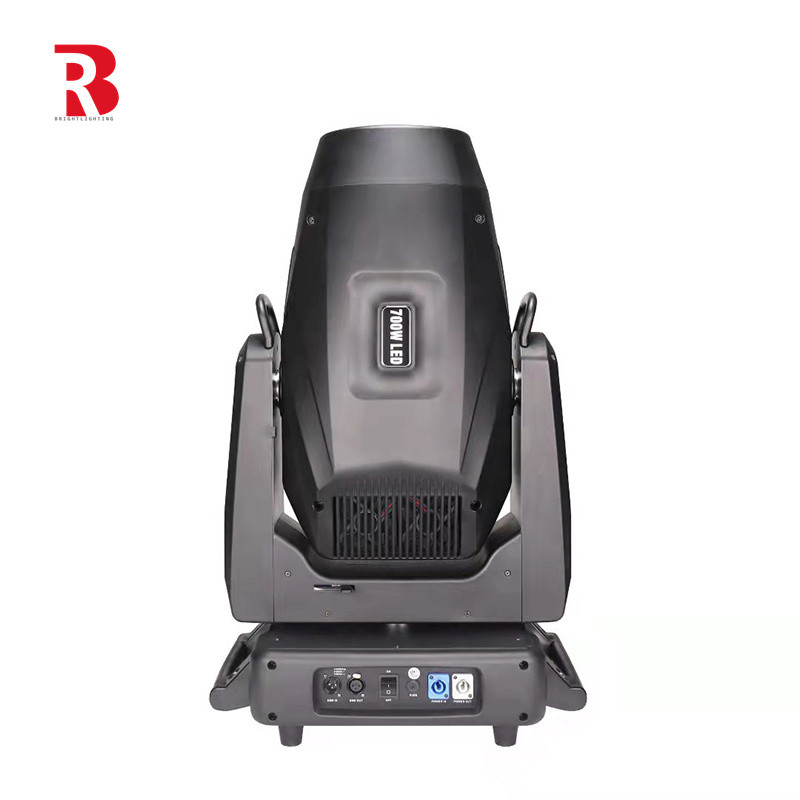

6800K Beam Led Moving Head LED Profile Spot Light 7 Colors 980W 1

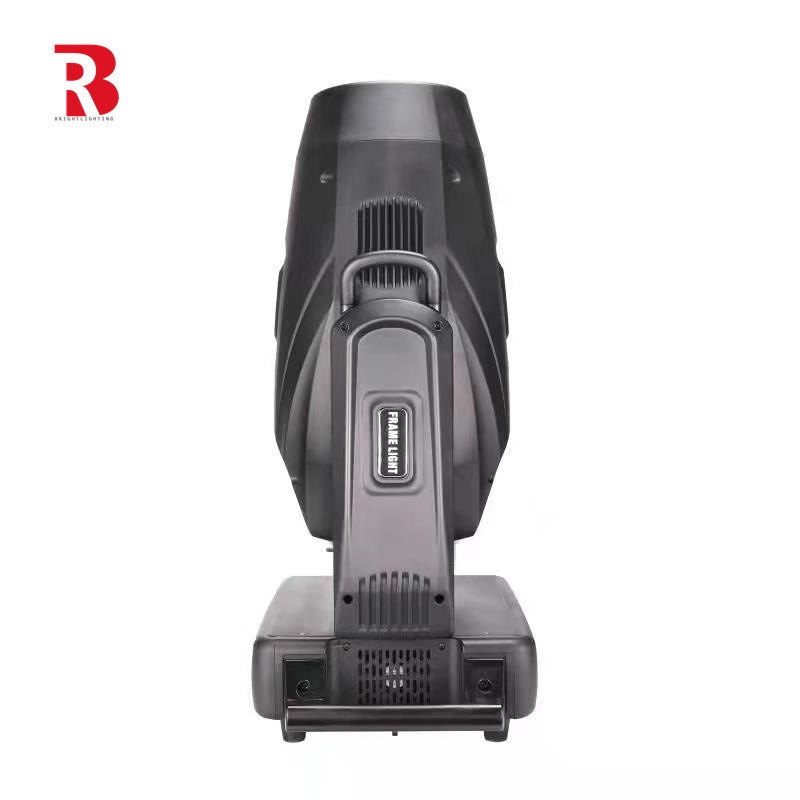

6800K Beam Led Moving Head LED Profile Spot Light 7 Colors 980W 2
