900W Stage LED Framing Projector CMY CTO Wash Light 6800K

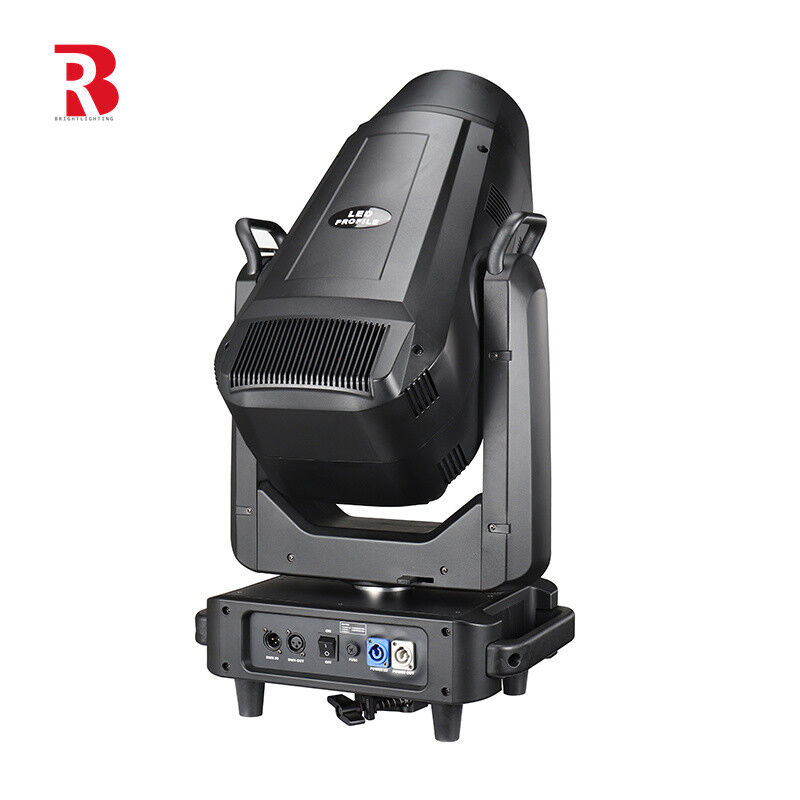

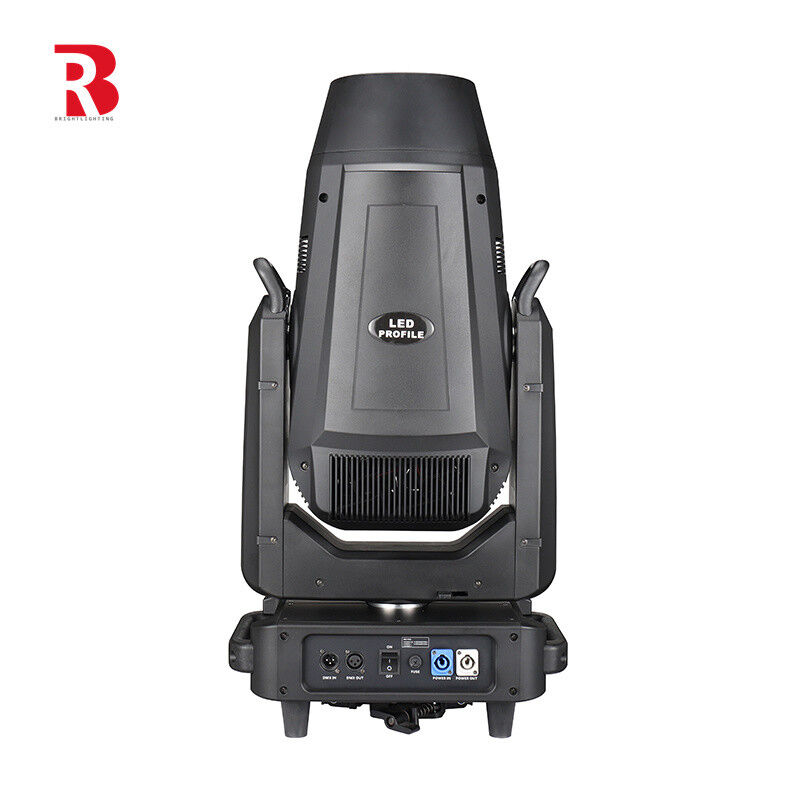

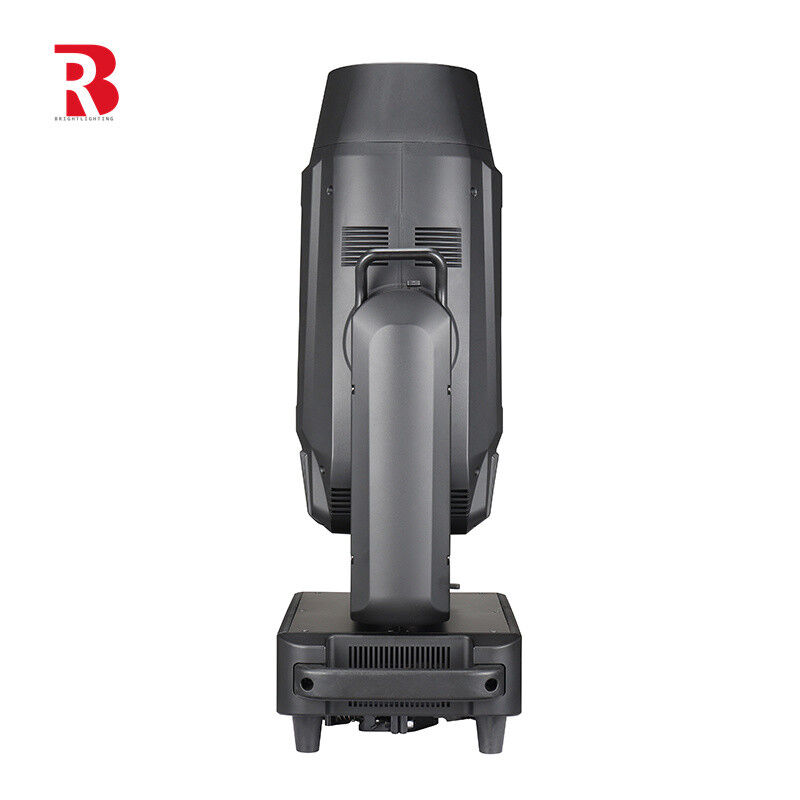

900W Stage LED Framing Projector CMY CTO Wash Light 6800K

900W led framing projector

led framing projector 6800K

900W CMY CTO Wash Light

Place of Origin:


Brand Name:

Bright lighting


CE ISO9000

Model Number:


Contact Us
Request A Quote
Product Details
Protection Rate:
Light Source:
600W LED Module
Input Voltage:
AC100-240V, 50/60Hz
LED Life:
20,000 Hours
Iris System:
5%~100% Smooth Adjustment
Strobe System:
The Highest Frequency Can Reach 25Hz, And Random Strobe And Pulse Strobe Can Be Selected
Framing System:
4 Individually Positionable Shutter Blades, Each Piece Can Be Closed Separately And Can Be Rotated +/- 90°
Frost System:
0~100% Linear Atomization
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Packaging Details
Carton Flightcase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
600W BSWF Led Moving Head Framing CMY-CTO Wash Light Ellipsoidal Stage Light
Input voltage: AC100-240V, 50/60Hz
Rated power: 900W
Light source: 600W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>72, high CRI mode Ra>90
Luminous flux: 24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 3-faced prism
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 7 fixed gobos+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 22.9mm, effective diameter 16mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 424*286*770(mm)
Carton size: 730*690*590 (mm)
Product net weight: 35KG
Product gross weight: 4.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp
Additional details:

1:Power Requirements: Make sure to use the correct voltage and current to avoid overloads or short circuits.

2:Installation location: When installing, make sure the device is stable and properly mounted to prevent shaking or tilting.

3:Usage environment: Avoid use in humid, dusty or high-temperature environments to avoid affecting the performance and life of the lamp.



1:Theme Parks: Used in amusement parks, theme parks and special events to present colorful light scenes to visitors.

2:Large banquet hall: used in weddings, dinners and large banquets to add a romantic atmosphere to the venue or create a happy atmosphere


Provide after-sales service
