1000W BSWF Beam Spot Wash Ellipsoidal Stage Light Three Pin XLR

1000W BSWF Beam Spot Wash Ellipsoidal Stage Light Three Pin XLR

1000W BSWF beam spot wash

1000W BSWF moving head beam spot wash

wash beam spot Ellipsoidal Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-1000F

Contact Us
Request A Quote
Product Details
Input Voltage:
AC100-240V, 50/60Hz
Rated Power:
1050W
Light Source:
1000W LED Module
LED Life:
20,000 Hours
Signal Interface:
Three-pin XLR (five-pin XLR Optional)
Control Mode:
DMX512, RDM, Auto Mode, Master-slave, Sound Activation
Channel Mode:
36CHs
Display System:
2.7-inch Touch LCD Display, Chinese And English Display, 180-degree Rotation
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
1000W BSWF Led Moving Head Framing Spot Wash Light Ellipsoidal Stage Light

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power: 1050W
Light source: 1000W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 32000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5~~60~ fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540~ (16 bit precision scanning)
Tilt: 270~ (16 bit precision scanning)
Pan/Tilt : Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45⊥
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp





Additional details:

How to operate:

Use DMX controller or other supported control methods to set parameters and adjust lighting effects.



Application:

1:Religious Ceremony: Used in churches, temples and religious ceremonies to provide sacred and solemn lighting effects for religious activities.

2:Shopping Centers: Used in shopping malls, department stores and retail stores to attract customers and set the mood for special promotions.

Service:
Provide after-sales service


display:

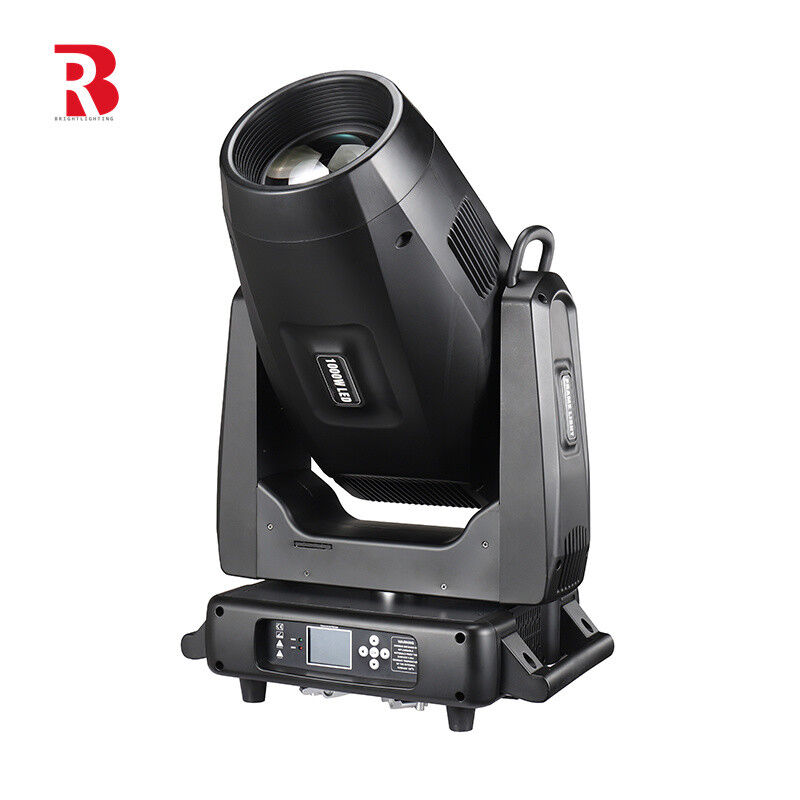

1000W BSWF Beam Spot Wash Ellipsoidal Stage Light Three Pin XLR 0

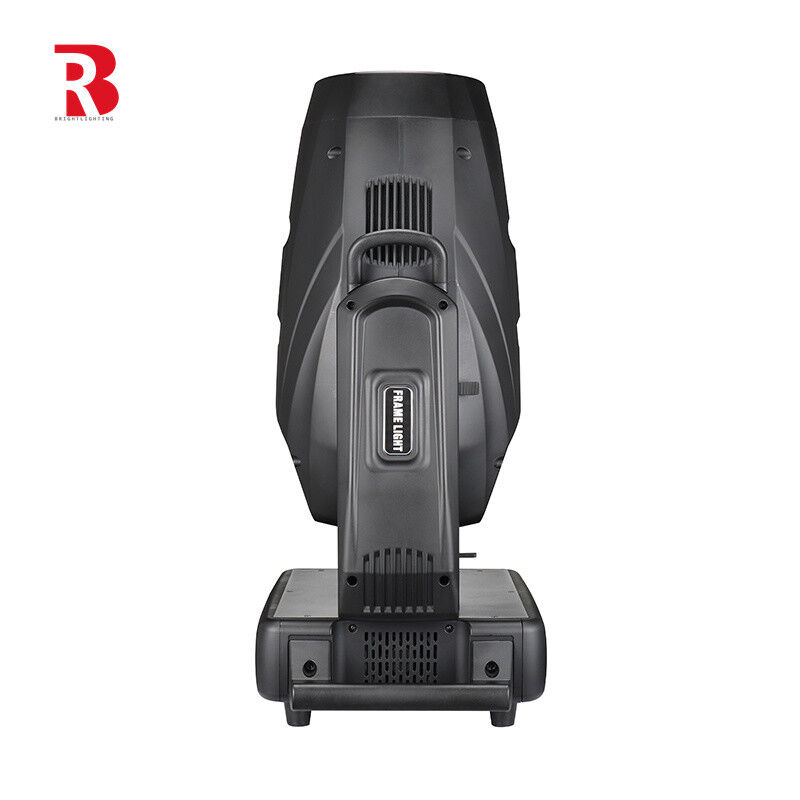

1000W BSWF Beam Spot Wash Ellipsoidal Stage Light Three Pin XLR 1

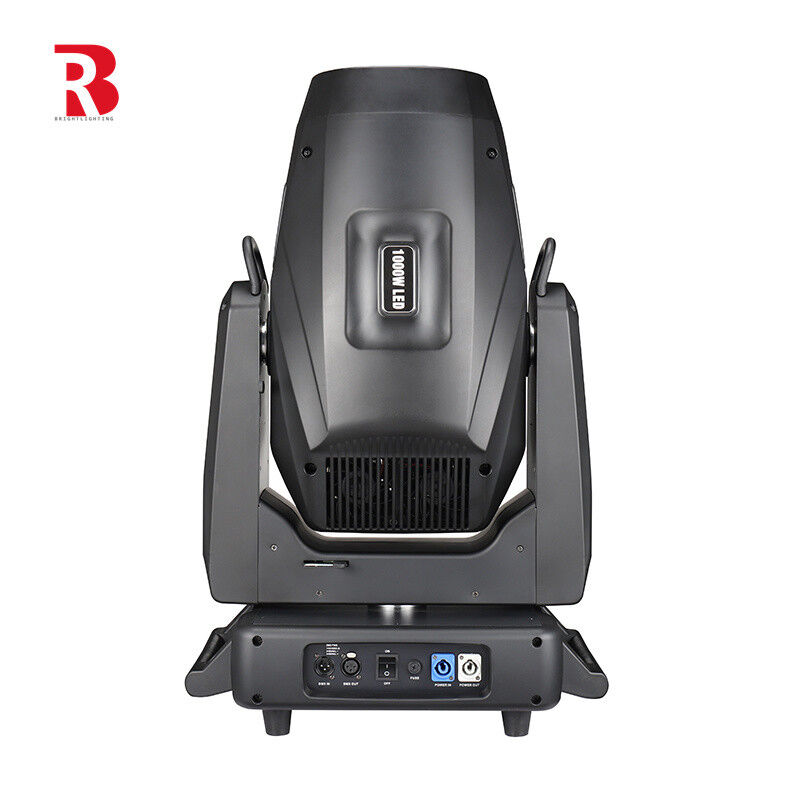

1000W BSWF Beam Spot Wash Ellipsoidal Stage Light Three Pin XLR 2
