Professional CMY CTO Lighting 1200W BSWF LED Moving Head Profile Stage Light

Professional CMY CTO Lighting 1200W BSWF LED Moving Head Profile Stage Light

Professional CMY CTO Lighting 1200W

1200W BSWF LED Moving Head

Professional CMY CTO Profile Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-1200F

Contact Us
Request A Quote
Product Details
Input Voltage:
AC100-240V, 50/60Hz
Rated Power:
1400W
Light Source:
1200W LED Module
LED Life:
20,000 Hours
Color Temperature:
6500K
Caliber:
150mm Frontal Lens For Greater Performance
Color Rendering Index:
Standard Mode Ra>72, High CRI Mode Ra>90
Luminous Flux:
38000LM
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Professional CMY-CTO Lighting 1200W BSWF Led Moving Head Profile Stage Light

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power: 1400W
Light source: 1200W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 38000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm,thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5°~60° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp





Additional details:
Technical Principles
The 1200W BSWF LED moving head framing light utilizes advanced LED technology to provide high luminous flux and precise color rendering. It incorporates a sophisticated control system, allowing for versatile operation and dynamic lighting effects.

Application:

1:Concerts and Music Festivals: The 1200W BSWF LED moving head framing light is ideal for illuminating stages, creating dynamic lighting effects, and enhancing the visual experience for concertgoers.
2:Theatrical Productions: This lighting fixture can be used in theaters and performance venues to provide versatile and precise lighting for live performances, drama productions, and dance shows.



Service:
Provide after-sales service

display:

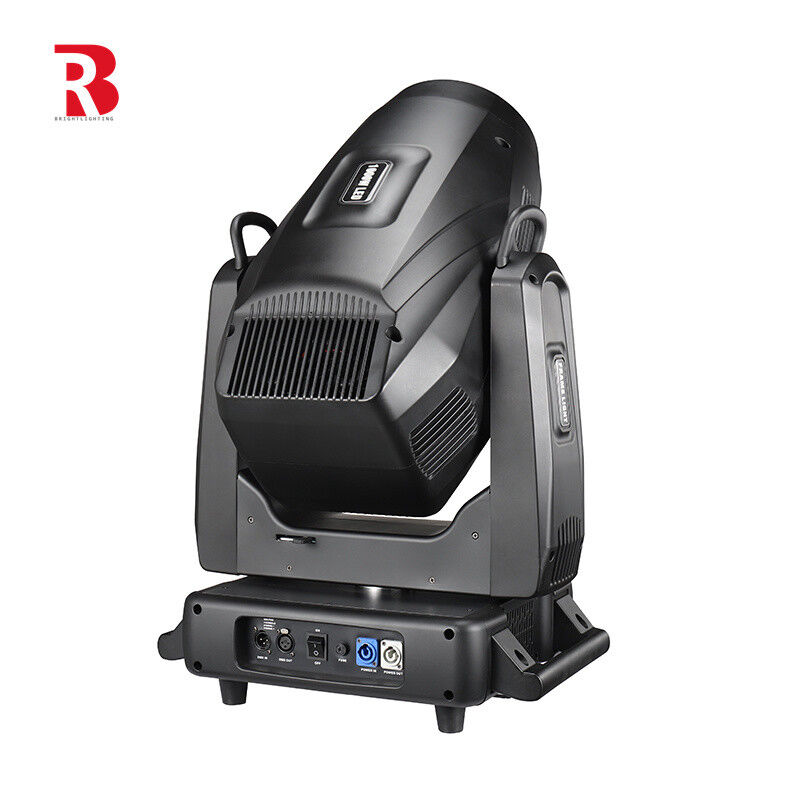

Professional CMY CTO Lighting 1200W BSWF LED Moving Head Profile Stage Light 0

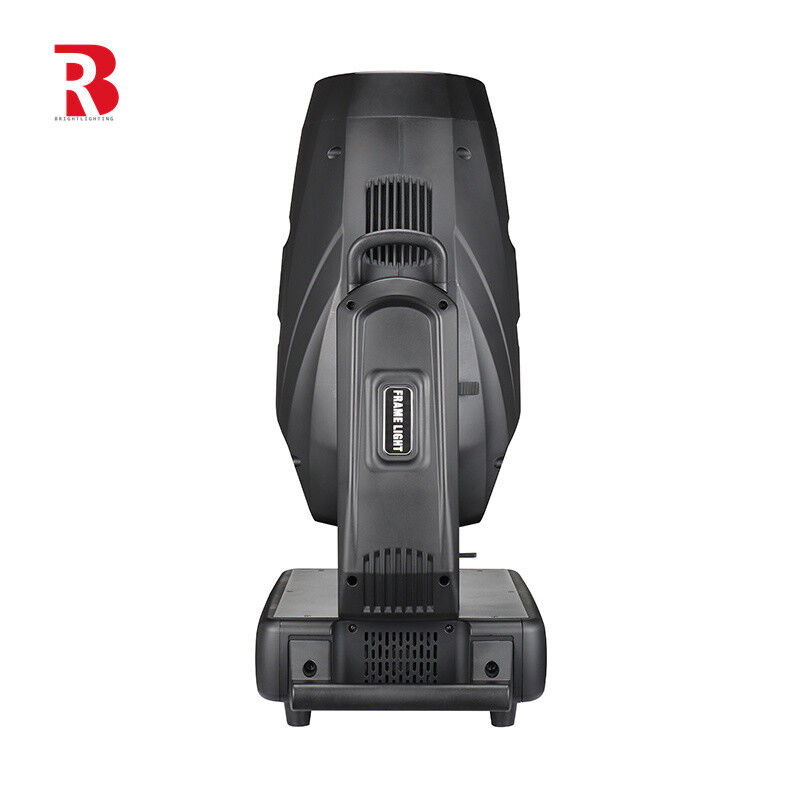

Professional CMY CTO Lighting 1200W BSWF LED Moving Head Profile Stage Light 1

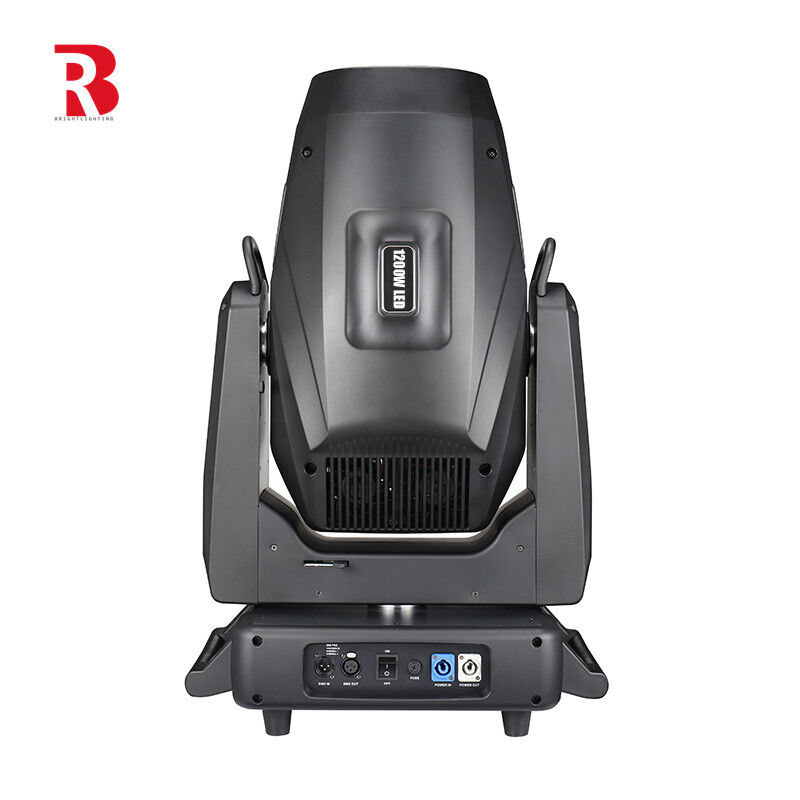

Professional CMY CTO Lighting 1200W BSWF LED Moving Head Profile Stage Light 2
