1.2kW BSWF LED Moving Head Profile Stage Theatre Light AC100-240V 50/60Hz

1.2kW BSWF LED Moving Head Profile Stage Theatre Light AC100-240V 50/60Hz

1200W BSWF LED Moving Head

profile theatre light AC100V 50Hz

1200W BSWF LED profile theatre light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-1200F

Contact Us
Request A Quote
Product Details
Light Source:
1200W LED Module
LED Life:
20,000 Hours
Input Voltage:
AC100-240V, 50/60Hz
Rated Power:
1400W
Fixed Color:
6 Colors + Open Position
Color Mixing System:
Independent CMY Color Mixing System
Prisms:
Rotating 3-faced Prism+6-faced Linear Prism, Two Prisms Can Be Overlaid
Effect Wheel:
Dynamic Effects Such As Stunning Simulated Dynamic Flames, Gurgling Water, Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
1200W BSWF Led Moving Head Profile Stage Light Wash Zoom Light For Wedding

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power: 1400W
Light source: 1200W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 38000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm,thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5°~60° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp





Additional details:
Production Process
The 1200W BSWF LED moving head framing light is manufactured using high-quality materials and advanced production techniques to ensure durability, performance, and safety.

Operating Instructions
1:Ensure proper input voltage (AC100-240V, 50/60Hz).
2:Select the appropriate control mode (DMX512, RDM, Auto Mode, master-slave, Sound activation).
3:Utilize the display system for configuration and monitoring.
4:Exercise caution when adjusting the beam aperture, iris system, and other moving parts.


Application:

1:Television and Film Production: The high-quality lighting output, color rendering, and dynamic effects enable its use in TV studios and film sets to create captivating lighting designs for various productions.
2:Architectural Lighting: With its adjustable beam aperture and precise control, this lighting fixture can be used to accentuate architectural details, illuminate building facades, and create stunning outdoor lighting displays.



Service:
Provide after-sales service

display:

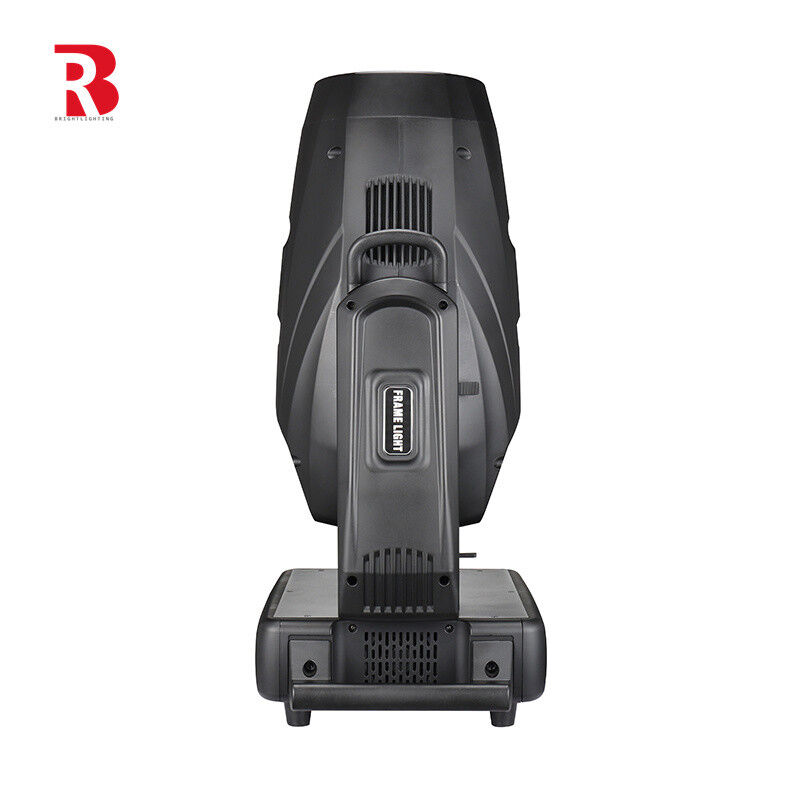

1.2kW BSWF LED Moving Head Profile Stage Theatre Light AC100-240V 50/60Hz 0

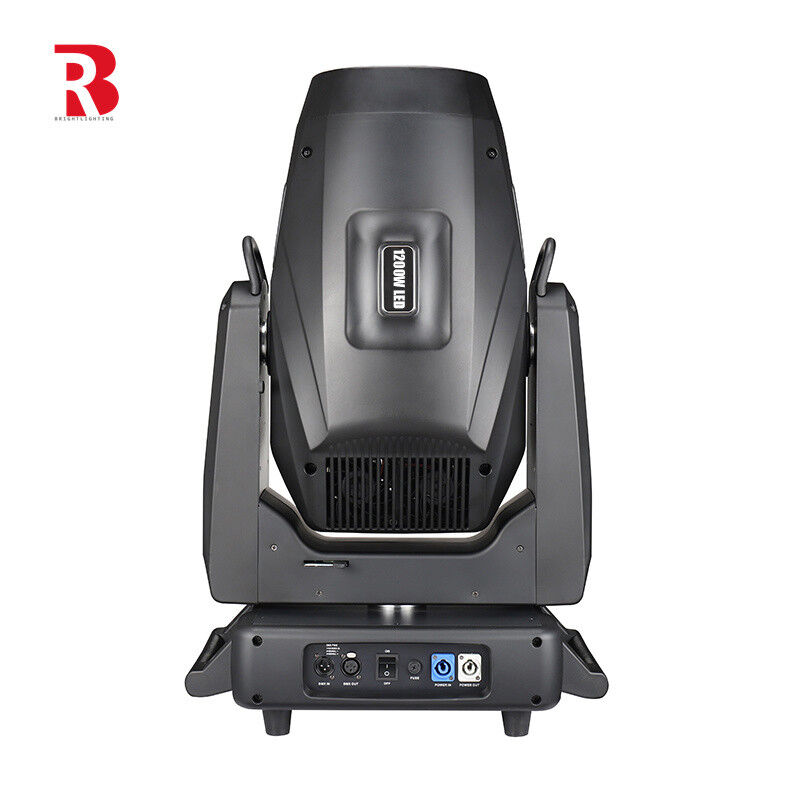

1.2kW BSWF LED Moving Head Profile Stage Theatre Light AC100-240V 50/60Hz 1

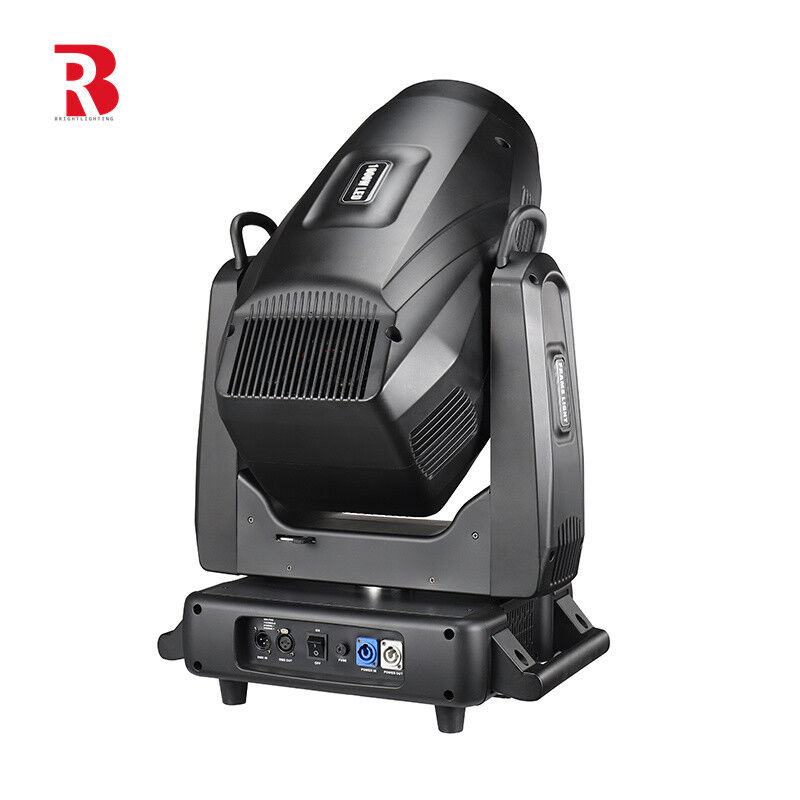

1.2kW BSWF LED Moving Head Profile Stage Theatre Light AC100-240V 50/60Hz 2
