Name: Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light
Brand: Guangzhou Bright Electronic Co.Ltd
SKU: BR-Mini680
Availability: InStock

Home > products > LED Framing Stage Light >

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light

Professional CMY CTO Lighting

CMY CTO MOVING PROFILE Stage Light

680W LED BSWF MOVING PROFILE Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-Mini680

Request A Quote

Product Details

Input Voltage:

AC100-240V, 50/60Hz

Rated Power:

950W

Light Source:

600W LED Module

LED Life:

20,000 Hours

Color Temperature:

6500K

Caliber:

130mm Frontal Lens For Greater Performance

Color Rendering Index:

Standard Mode Ra>75, High CRI Mode Ra>90

Luminous Flux:

24000LM

Payment & Shipping Terms

Minimum Order Quantity

1 Sets

Price

Negotiable

Packaging Details

Carton Flightcase

Delivery Time

7-15days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

3000PCS per month

Laser 3 in 1 China Manufacturers For Event

Get Best Price

Video

New High Quality 3 in 1 Laser light China Manufacturers For Event

Get Best Price

Video

New High Quality Magic ball 3 in 1 Laser light China Manufacturers For Event

Get Best Price

Video

New High Quality Magic ball 3 in 1 Laser light China Manufacturers

Get Best Price

Contact Now

Product Description

Professional CMY-CTO Lighting Mini680W LED BSWF MOVING PROFILE Stage Light

Specifications:

Input voltage:	AC100-240V, 50/60Hz
Rated power:	950W
Light source:	600W LED module
LED life:	20,000 hours
Color temperature:	6500K
Caliber:	130mm Frontal lens for greater performance
Color rendering index:	Standard mode Ra>75, high CRI mode Ra>90
Luminous flux:	24000LM
Signal interface:	three-pin XLR (five-pin XLR optional)
Control mode:	DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode:	41CHs
Display system:	2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color:	6 colors + open position
Color mixing system:	independent CMY color mixing system
Color temperature adjustment:	independent CTO 2500K-7000K linear adjustment
Prisms:	Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel:	dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel:	7 plug-in fixed gobos with an outer Rotating gobo Wheel: 8 gobos (pluggable),
Framing system:	4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system:	0~100% linear atomization
Iris system:	6%~100% smooth adjustment
Beam Aperture:	5°~50° fast motorized linear zoom
Dimming system:	0-100% linear adjustment
Strobe system:	the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan:	540° (16 bit precision scanning)
Tilt:	270° (16 bit precision scanning)
Pan/Tilt:	Five-phase motor with magnetic encoding positioning function
Protection rate:	IP20
Working environment:	0-45℃
Product net weight:	30KG

Additional details:

Technical Principles

Mini680W LEDBSWF MOVING PROFILE uses advanced LED technology and a variety of optical components to achieve precise beam shape, color and effect adjustment through DMX512, RDM and other control methods.

Application:

1:Concerts and performance venues: Mini680W LED BSWF MOVING PROFILE can be used in concerts, concerts and other performances to enhance the visual impact through its colorful lighting effects, create a spectacular stage atmosphere and enhance the audience's viewing experience.

2:Theater and stage play performances: In large theaters and stage play performances, this lamp can provide a variety of lighting effects for the stage, including color mixing, dynamic effects wheels and precise beam adjustment to match the plots of different plays and increase dramatic tension.

Service:

Provide after-sales service

display:

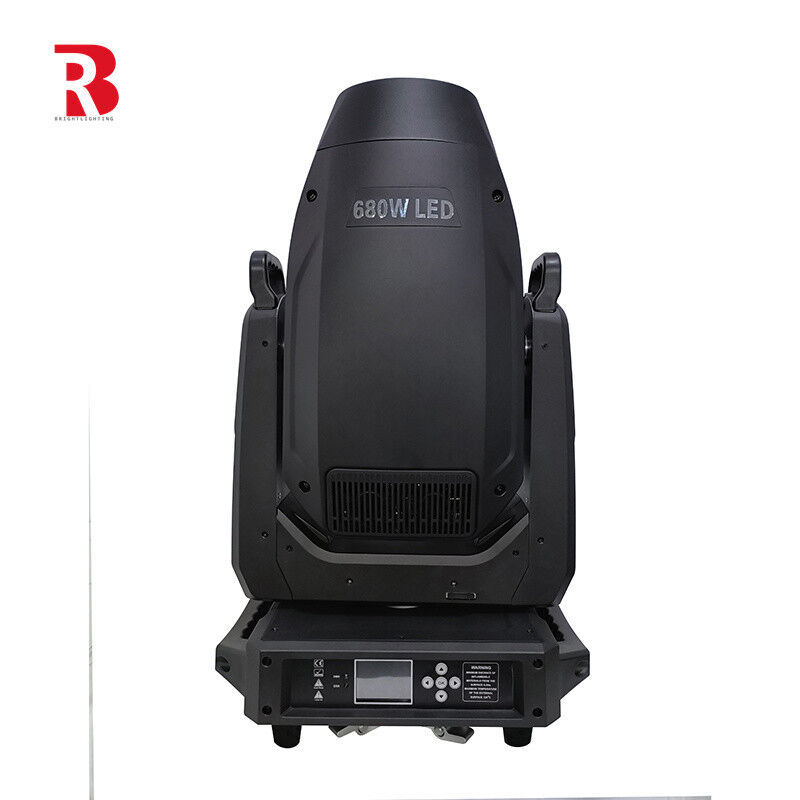

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light 0

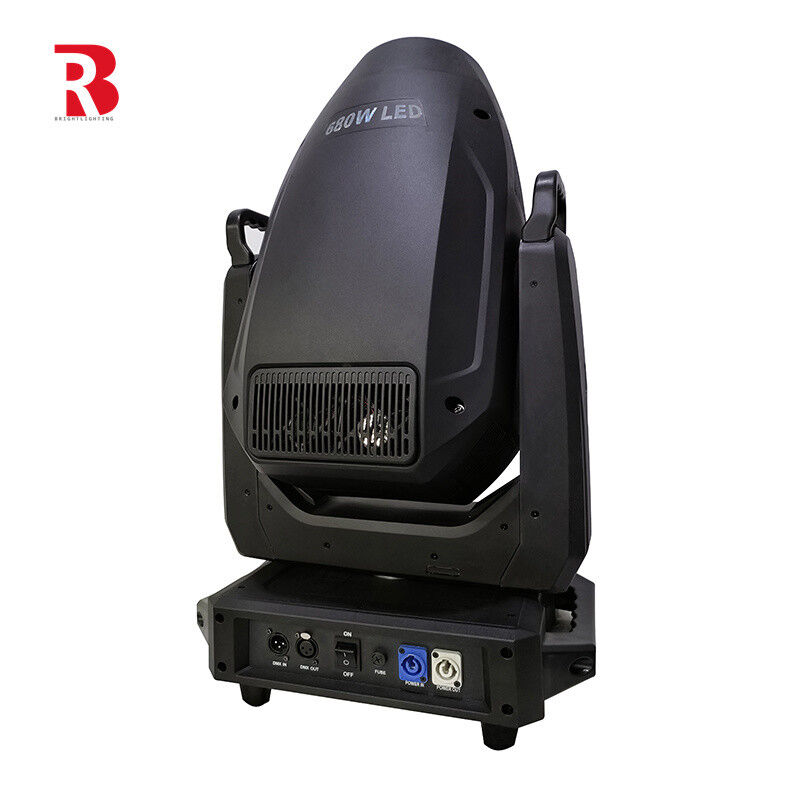

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light 1

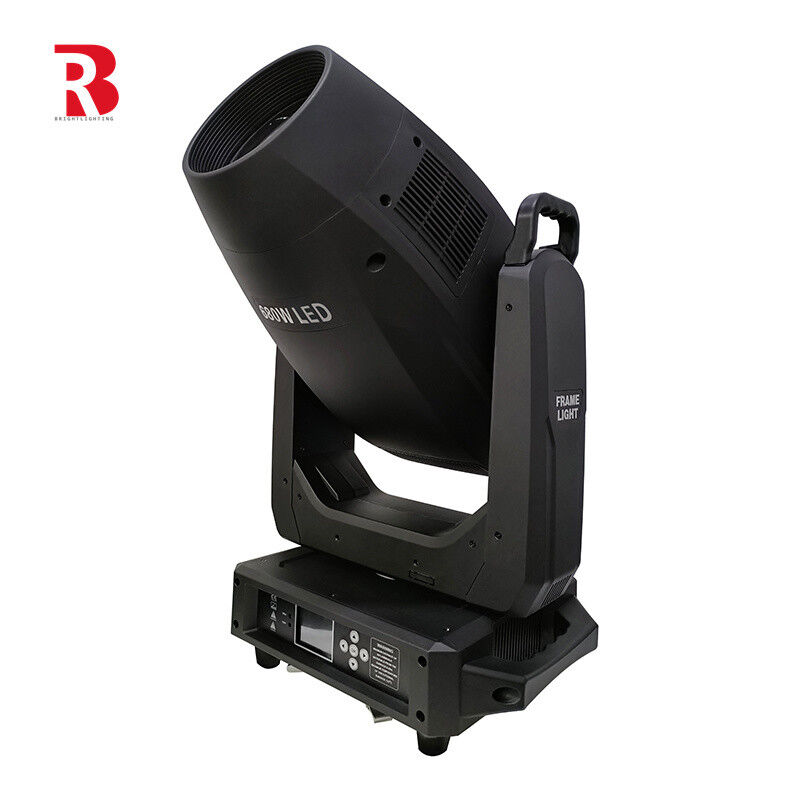

Professional CMY CTO Lighting Mini 680W LED BSWF MOVING PROFILE Stage Light 2
