Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-NJ-WP800
| Extra large lens diameter | 200MM |
| Light source | 1*260W laser module |
| Light source life | 12,000 hours |
| Total power | 800W |
| Color | Imported Italian color plate 14 colors + colorful rainbow effect + independent atomization function |
| Pattern | 14 fixed patterns + 1 white light |
| Focus | Electronic linear high-definition focus, using high-density glass optical lens |
| Beam angle | 0-1.8° |
| Channel | 16/20 international standard DMX512 channels |
| Waterproof grade | IP66 |
| Material | Made of national standard die-cast aluminum + aviation die-cast magnesium alloy high-end material shell |
| Control mode | DMX512, self-propelled, master-slave self-propelled |
| Linear dimming 0%-100% linear dimming | 0%-100% linear dimming |
| Prism | octagonal prism can be rotated |
| Motor | Three-phase motor, magnetically encoded positioning, more accurate positioning |

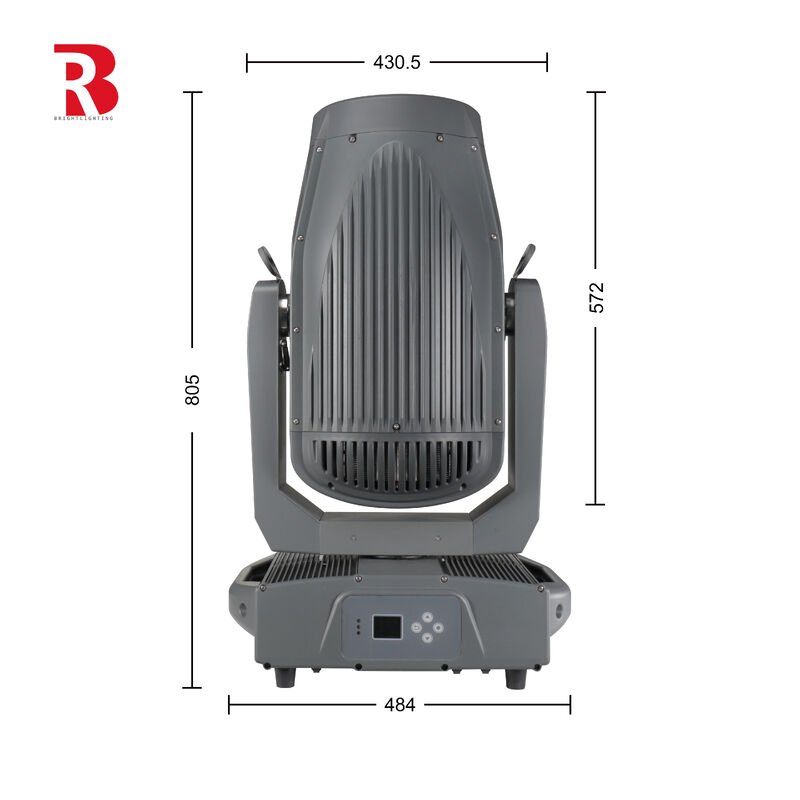

| Lamp body size | 484*376*805mm |
| Net weight | 38KG |
| Motherboard | supports RDM, display programming |
Technical Principle
This moving head light uses a 260W laser module as the light source, and uses a high-density glass optical lens to achieve an electronic linear high-definition focal length and a beam angle of 0-1.8°. At the same time, it supports 16/20 international standard DMX512 channel control and has IP66 waterproof rating.
Working Principle
The moving head light achieves precise control of light source, color, pattern, focus, brightness, etc. through DMX512, autonomous operation and master-slave autonomous operation control modes. Additionally, it supports RDM and display programming.
Stage performances: Moving head lights can be used in concerts, stage plays and dance performances to provide performers with colorful lighting effects.
Concerts: At large concerts, moving head lights can create stunning visual effects for the audience based on the rhythm and emotional changes of the music.
Service:
Provide after-sales service
