6500K LED Framing Ellipsoidal DMX512 CMY CTO LED Stage Light For Concert

6500K LED Framing Ellipsoidal DMX512 CMY CTO LED Stage Light For Concert

DMX512 LED Framing Ellipsoidal

CTO LED Framing Ellipsoidal

6500K LED Framing Ellipsoidal

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE

Model Number:

BR-Mini680

Contact Us
Request A Quote
Product Details
Material:
Aluminum Alloy
Type:
Framing Light
Rated Power:
950W
LED Life:
20,000 Hours
Signal Interface:
Three-pin XLR (five-pin XLR Optional)
Control Mode::
DMX512, RDM, Auto Mode, Master-slave, Sound Activation
IP Rate:
IP20
Display System::
2.8-inch Touch LCD Display, Chinese And English Display, 180-degree Rotation
Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Carton Package FlightCase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
300PCS
Product Description
6500K LED Framing Ellipsoidal DMX512 CMY CTO LED Stage Light for Concert

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power: 950W
Light source: 600W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 130mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 41CHs
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 7 plug-in fixed gobos with an outer Rotating gobo Wheel: 8 gobos (pluggable),
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product net weight: 30KG





Product Detail:



1.The products can be refined and customized

2.Strong signal and easy to connect

3.Perfect after-sales service

4.For Party / All kinds of show

5.Working Position: Any safe working position





Working principle:



1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.





Display:

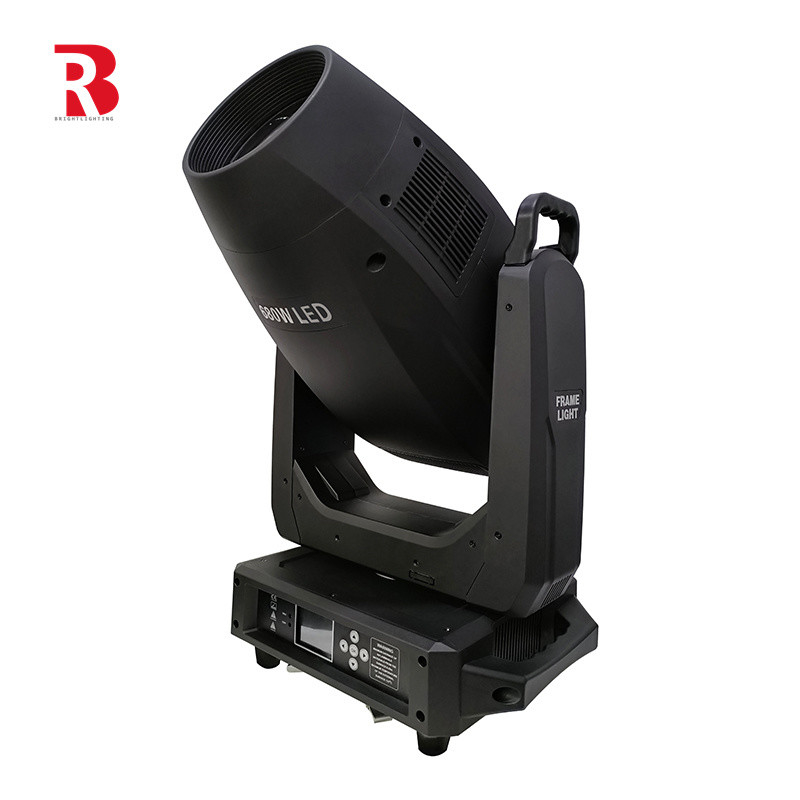

6500K LED Framing Ellipsoidal  DMX512 CMY CTO LED Stage Light For Concert 0

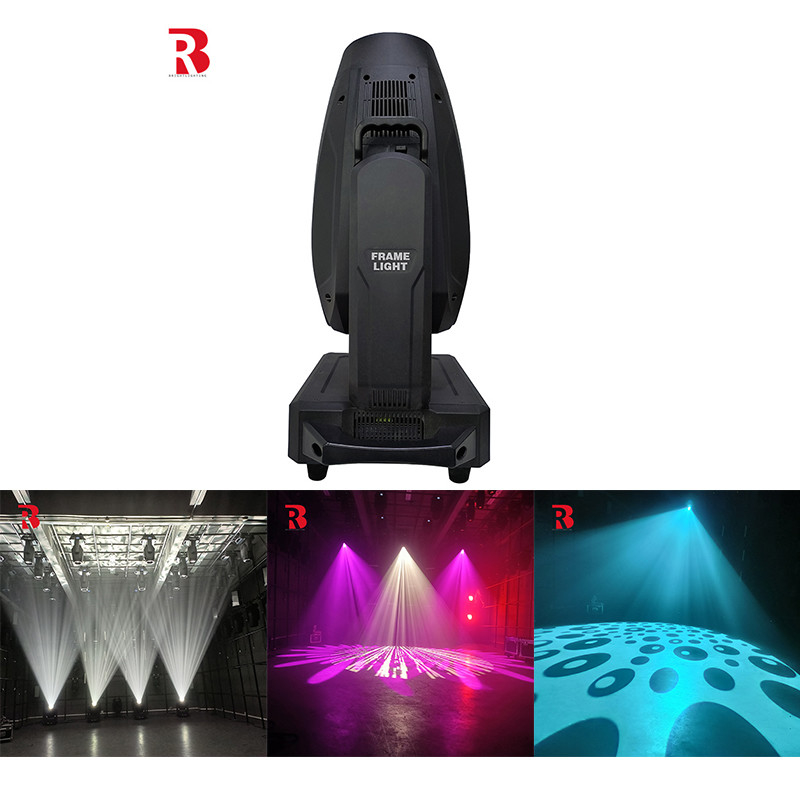

6500K LED Framing Ellipsoidal  DMX512 CMY CTO LED Stage Light For Concert 1

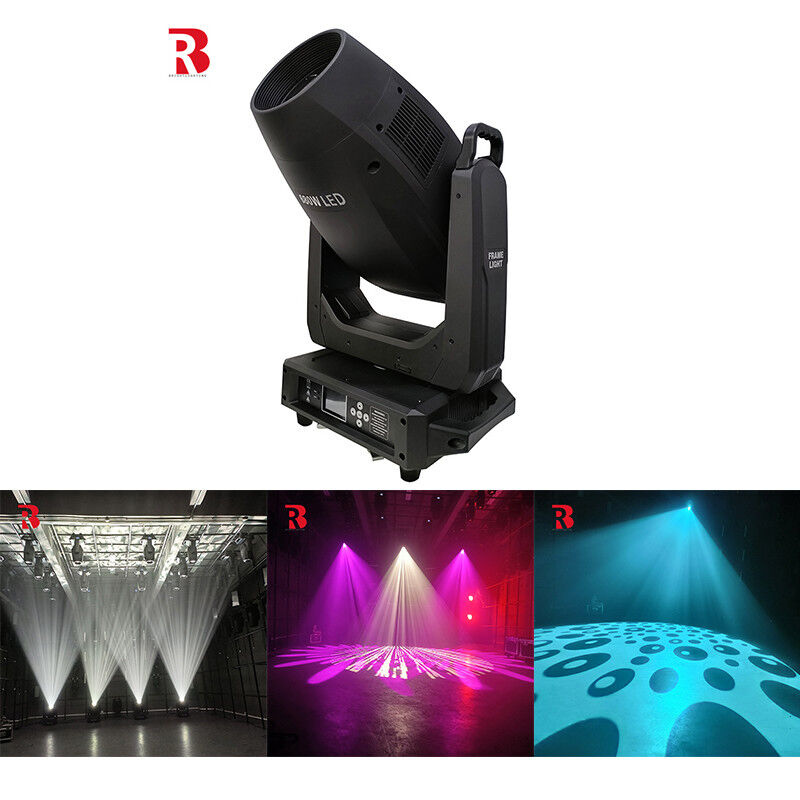

6500K LED Framing Ellipsoidal  DMX512 CMY CTO LED Stage Light For Concert 2



6500K LED Framing Ellipsoidal  DMX512 CMY CTO LED Stage Light For Concert 3
