LED Framing Gobo CMY+CTO LED Moving Stage Light For Professional Stage

LED Framing Gobo CMY+CTO LED Moving Stage Light For Professional Stage

Professional Stage LED Framing Gobo

Professional Stage LED Framing Gobo Light

Place of Origin:


Brand Name:

Bright lighting



Model Number:


Contact Us
Request A Quote
Product Details
Nput Voltage:
AC100-240V, 50/60Hz
Fixed Color:
6 Colors + Open Position
Color Mixing System:
Independent CMY Color Mixing System
Aluminum Alloy
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton Package FlightCase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
Product Description
DMX512 Framing Moving Head 6 colors+open position LED Stage Light For Party

Technical principle:

LED wash stage light uses LED light source to achieve color richness and change through mixing and modulation. Through the professional control system, the LED light source is dimmed, toning and other operations, so as to present different lighting effects





Application :


1.Applied in shopping malls, trade shows, and product launches to attract attention and highlight brand image.
2.Interior Decor: Used for home decoration, restaurants, and clubs to add artistic lighting and a sense of style.



Input voltage: AC100-240V, 50/60Hz
Rated power: 900W
Light source: 600W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>72, high CRI mode Ra>90
Luminous flux: 24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 3-faced prism
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 7 fixed gobos+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 22.9mm, effective diameter 16mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 424*286*770(mm)
Carton size: 730*690*590 (mm)
Product net weight: 35KG
Product gross weight: 4.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp

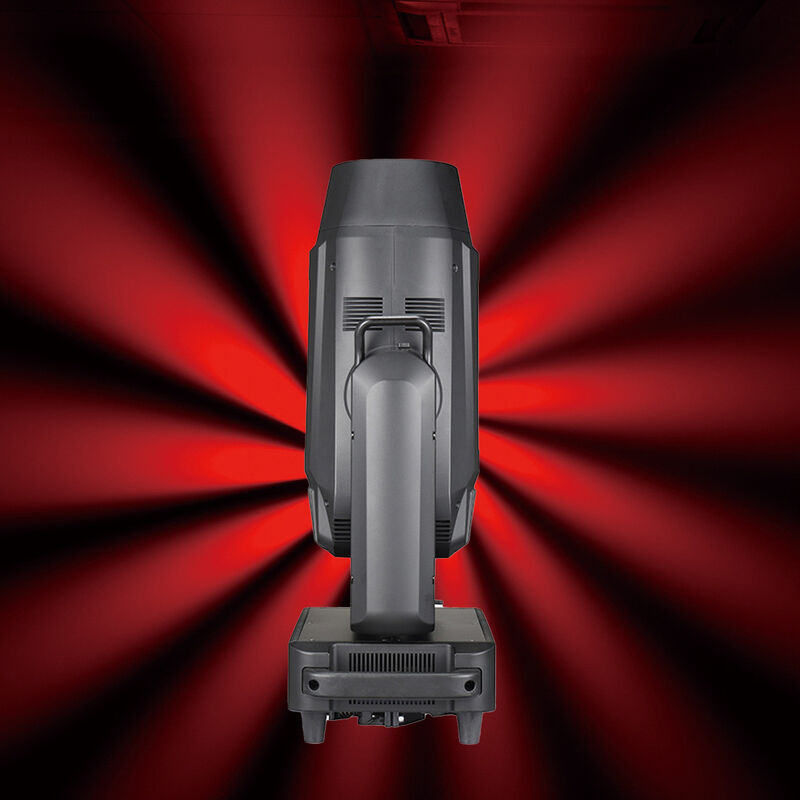

LED Framing Gobo CMY+CTO LED Moving Stage Light For Professional Stage 0

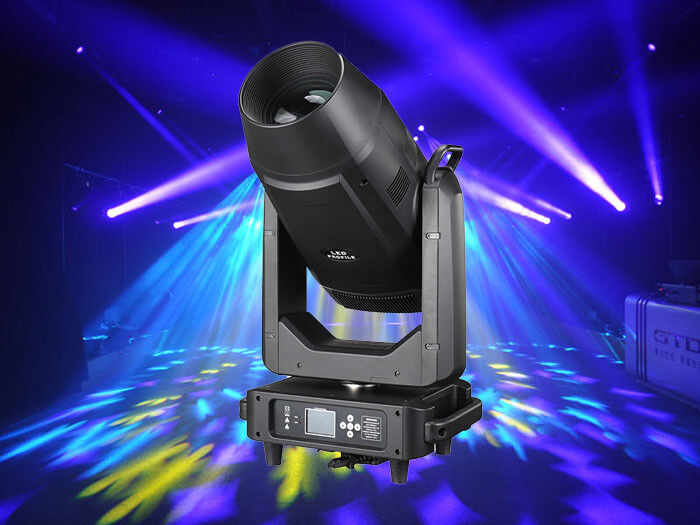

LED Framing Gobo CMY+CTO LED Moving Stage Light For Professional Stage 1

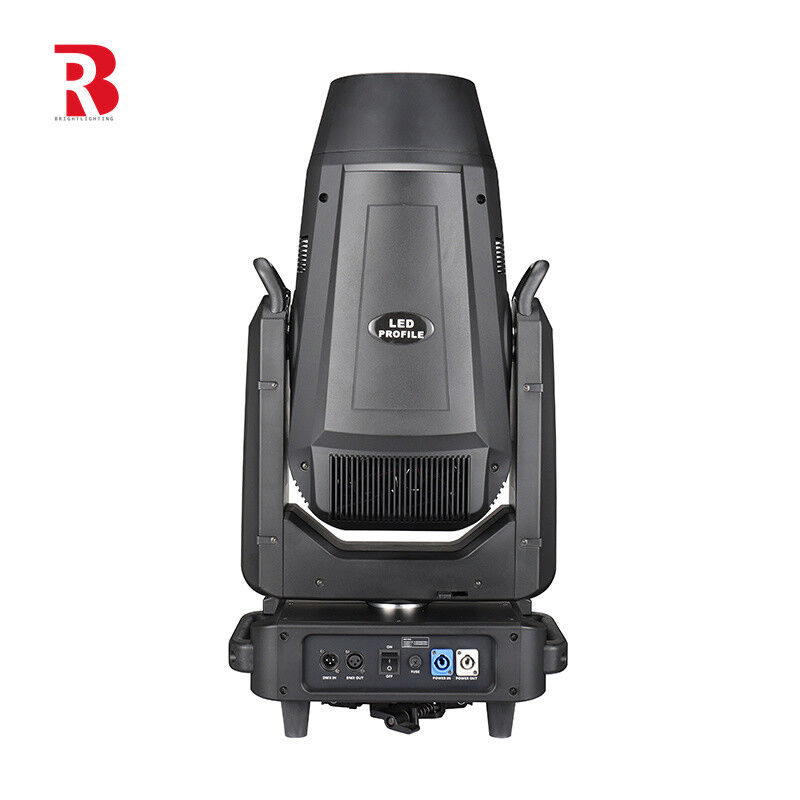

LED Framing Gobo CMY+CTO LED Moving Stage Light For Professional Stage 2
