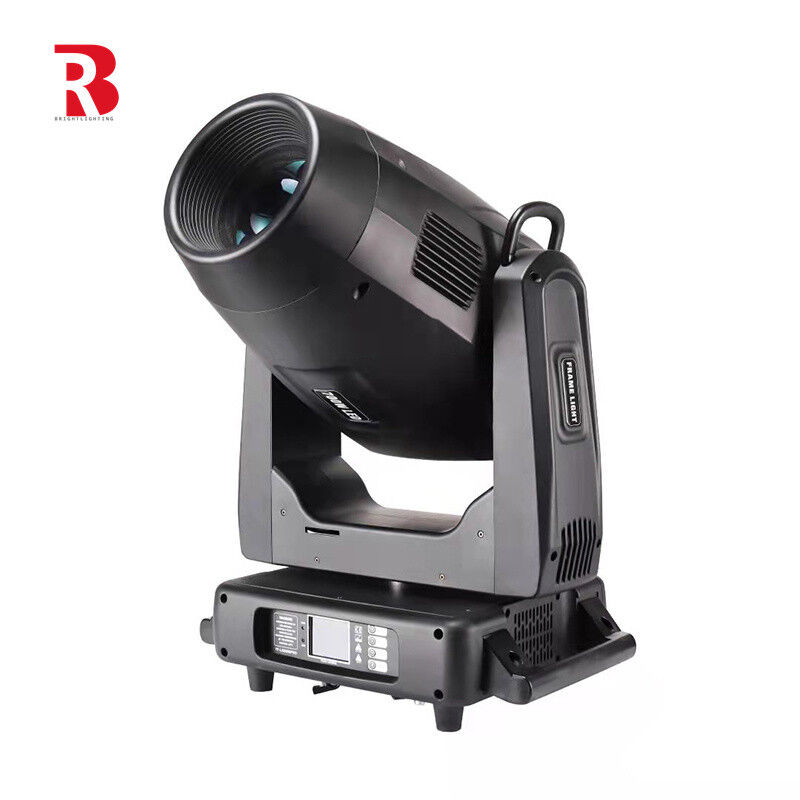

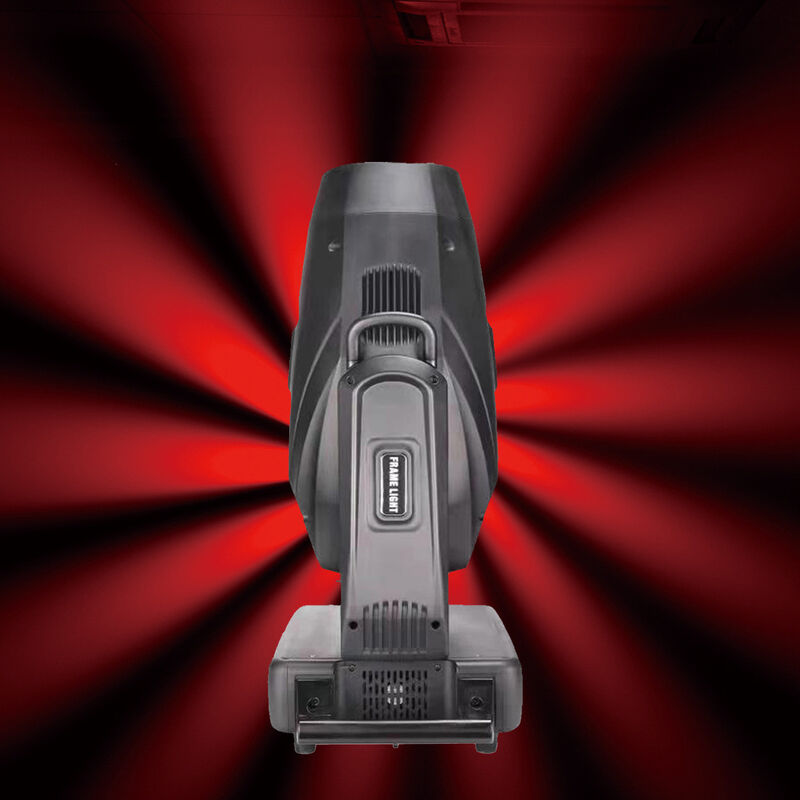

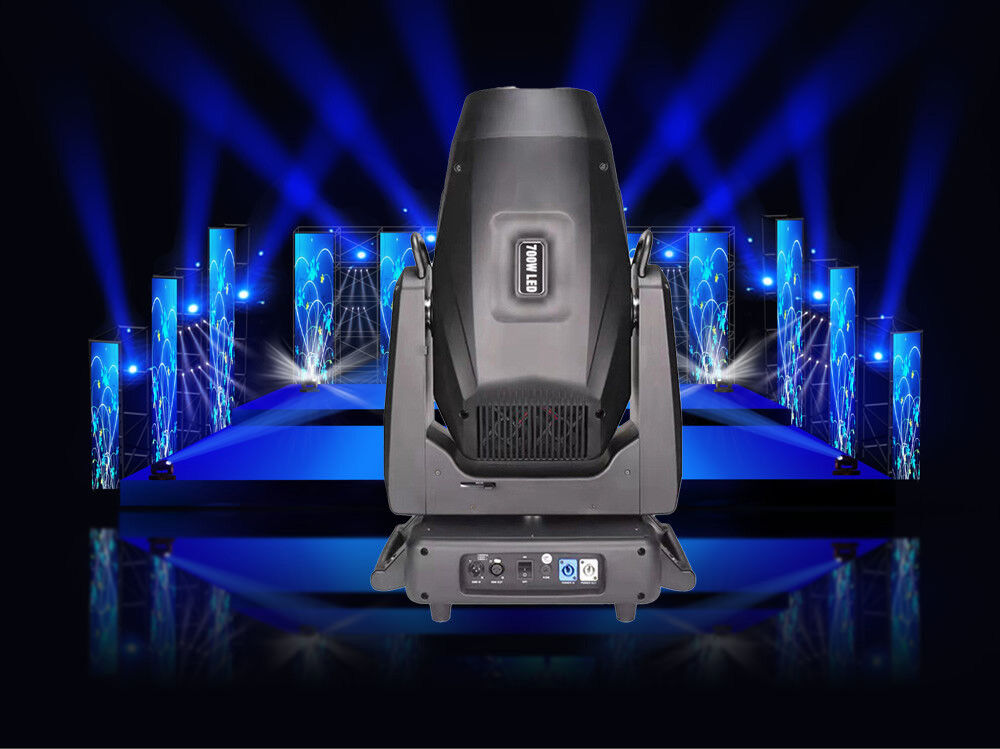

6800K Framing Stage Light CMY CTO 8 Fixed Gogo Mixing LED Stage For Party

6800K Framing Stage Light CMY CTO 8 Fixed Gogo Mixing LED Stage For Party

CTO Framing Stage Light

6800K Framing Stage Light

Party Framing Stage Light

Place of Origin:


Brand Name:

Bright lighting



Model Number:


Contact Us
Request A Quote
Product Details
Beam Aperture:
4.5°~50° Fast Motorized Linear Zoom
Nput Voltage:
AC100-240V, 50/60Hz
Light Source:
700W LED Module
LED Life:
20,000 Hours
Pan / Tilt:
540 ° / 270 °
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton Package FlightCase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
LED 700W 6800K Framing Outdoor Moving Head Stage Light for Event Wedding
Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: : flame retardant, high temperature resistance, folding clamp


Technical principle:

LED wash stage light uses LED light source to achieve color richness and change through mixing and modulation. Through the professional control system, the LED light source is dimmed, toning and other operations, so as to present different lighting effects



Our Services:


1 . We are professional led stage lighting factory for Thirteen years , technology in the industry is come out in


2 . We have rich experience R&D engineer and we have strong ability for OEM projects.

3 . We have wee-trained and professional sales&after- sale services.

4 . For all your inquires about us or our products , we will reply you in detail within 24 hours.

5 . Our advantage are quick delivery , competitive price , high quality and long term service to our customer.

6 . There is as long- term cooperation with the shipping company , can make the goods more quickly and efficiently so that can delivered safely to the designated place.
