36CH LED Framing BSWF Moving Head Profile Light For Professional Stage

36CH LED Framing BSWF Moving Head Profile Light For Professional Stage

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE

Model Number:

BR-1000F

Contact Us
Request A Quote
Product Details
Housing Mat:
ABS
IP Rate:
IP20
Light Source:
1000W LED Module
LED Life:
20,000 Hours
Color Temperature:
6500K
Caliber:
150mm Frontal Lens For Greater Performance
Color Rendering Index:
Standard Mode Ra>75, High CRI Mode Ra>90
Application:
Concert
Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Carton Package FlightCase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
300PCS
Product Description
36CH LED Framing BSWF Moving Head Profile Light For Professional Stage





Matters needing attention:



1:Avoid using in high temperature and high humidity environment for a long time, so as not to affect the life of the lamp.
2:Clean the surface of lamps and cooling fans regularly to ensure smooth heat dissipation.
3:Check the fixed installation before use to ensure that the beam lamp is in a stable state.


Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power: 1050W
Light source: 1000W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 32000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5~~60~ fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540~ (16 bit precision scanning)
Tilt: 270~ (16 bit precision scanning)
Pan/Tilt : Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45⊥
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp




Company introduction:



Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.







Display:

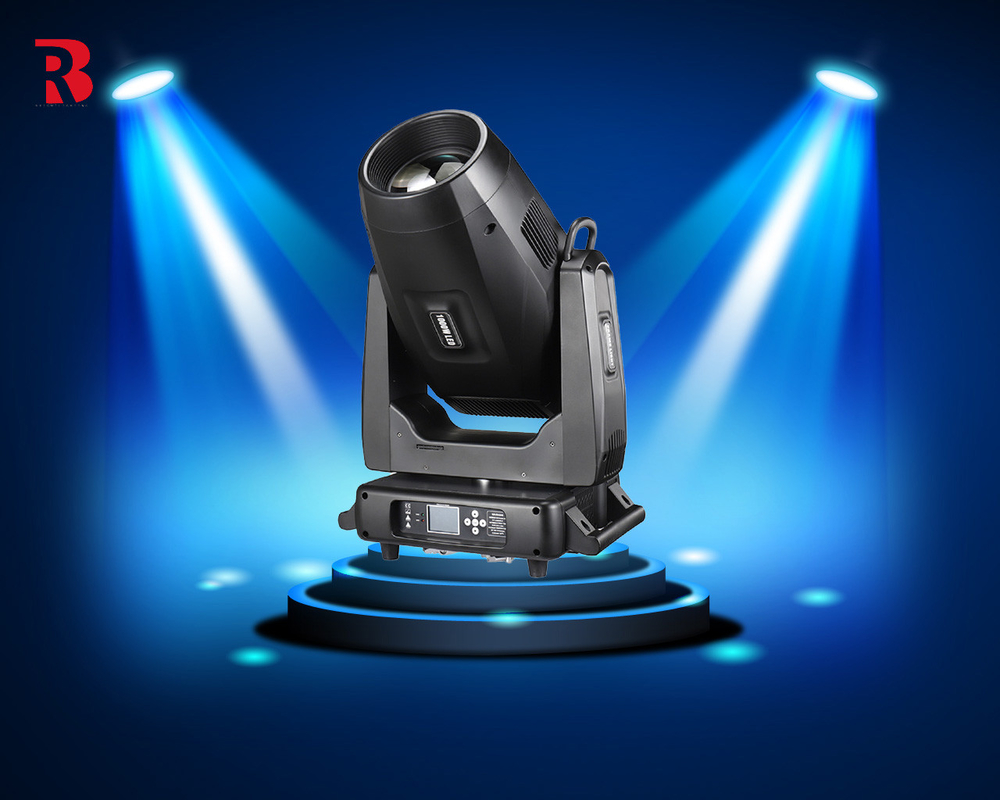

36CH LED Framing BSWF Moving Head Profile Light For Professional Stage 0

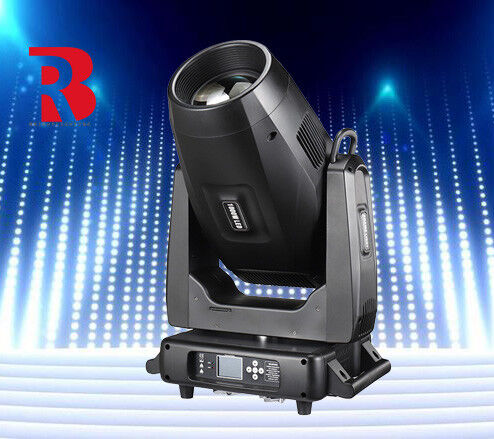

36CH LED Framing BSWF Moving Head Profile Light For Professional Stage 1

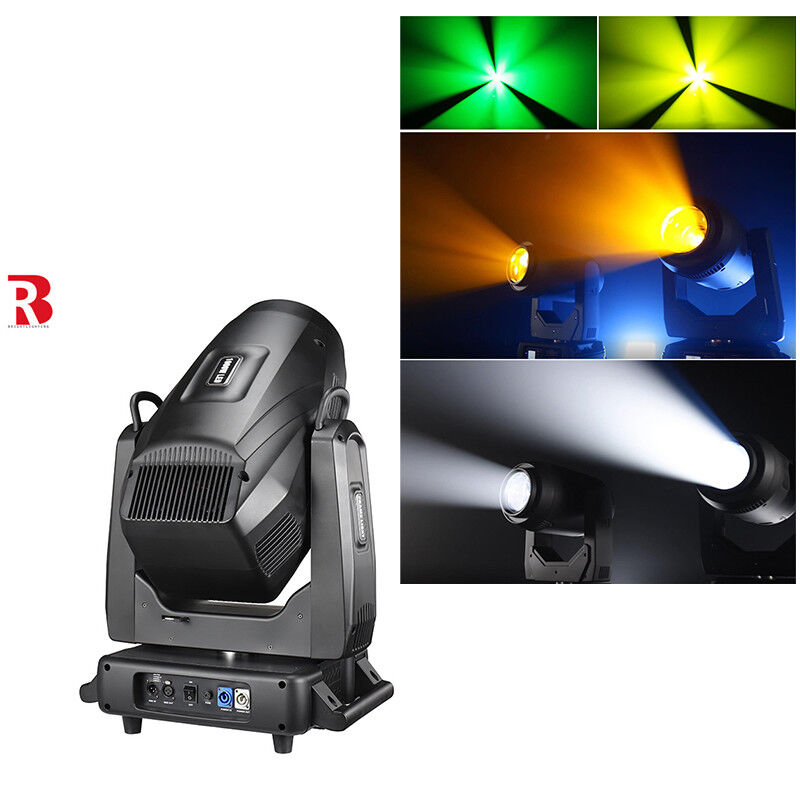

36CH LED Framing BSWF Moving Head Profile Light For Professional Stage 2
