LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display

LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE

Model Number:

BR-1200F

Contact Us
Request A Quote
Product Details
Pan/Tilt:
540°/270°
Dimming:
0-100% Linear
Light Source:
1200W LED Module
LED Life:
20,000 Hours
Color Temperature:
6500K
Caliber:
150mm Frontal Lens For Greater Performance
Color Rendering Index:
Standard Mode Ra>72, High CRI Mode Ra>90
IP Rate:
IP20
Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Carton Package FlightCase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
300PCS
Product Description
LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display




Our Services:



1 . We are professional led stage lighting factory for Thirteen years , technology in the industry is come out in

front.

2 . We have rich experience R&D engineer and we have strong ability for OEM projects.

3 . We have wee-trained and professional sales&after- sale services.

4 . For all your inquires about us or our products , we will reply you in detail within 24 hours.

5 . Our advantage are quick delivery , competitive price , high quality and long term service to our customer.

6 . There is as long- term cooperation with the shipping company , can make the goods more quickly and efficiently so that can delivered safely to the designated place.





Product Detail:



1.The products can be refined and customized

2.Strong signal and easy to connect

3.Perfect after-sales service

4.For Party / All kinds of show

5.Working Position: Any safe working position




Specifications:

Input voltage: AC100-240V, 50/60Hz
Rated power: 1400W
Light source: 1200W LED module
LED life: 20,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 38000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm,thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5°~60° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp





Application :


1.Applied in shopping malls, trade shows, and product launches to attract attention and highlight brand image.
2.Interior Decor: Used for home decoration, restaurants, and clubs to add artistic lighting and a sense of style.



Display:

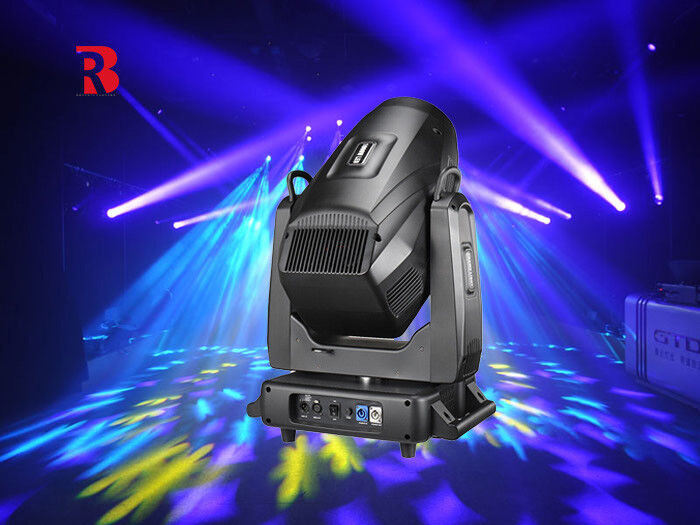

LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display 0

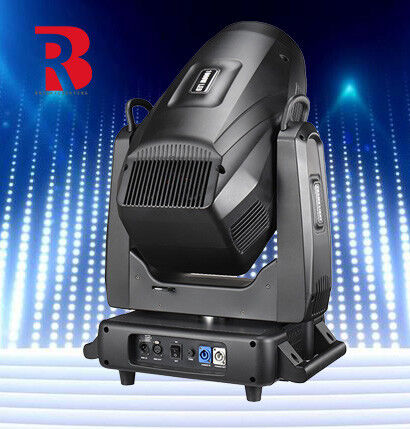

LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display 1

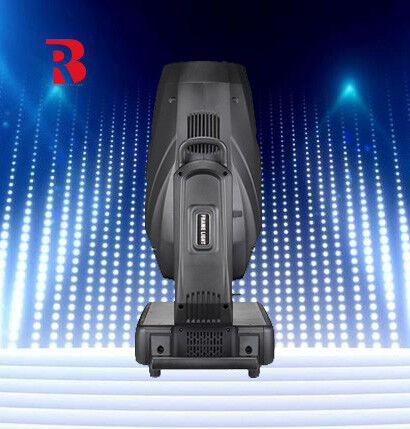

LED Framing 6 Colors+open position Fixed Gobo 2.8-inch Touch LCD Display 2
