700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light

700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light

700w Framing Stage Light

Disco Theater Framing Stage Light

4-in-1 Framing Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-700F

Contact Us
Request A Quote
Product Details
Input Voltage:
AC100-240V, 50/60Hz
Rated Power:
980W
Light Source:
700W LED Module
LED Life:
20,000 Hours
Product Net Weight:
40KG
Product Gross Weight:
48.5KG
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: Protection rate:
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: : flame retardant, high temperature resistance, folding clamp

Additional details:

Technical principle
The cutting light uses a high-brightness LED module as the light source, with an independent CMY color mixing system and CTO color temperature adjustment to achieve precise color and color temperature control. At the same time, a variety of light and shadow effects are produced by rotating the prism and fixed/rotating Gobo wheel. The electric linear zoom and positionable shutter blades further enhance the flexibility and performance of the light.

Working principle
The cutting light is controlled by receiving DMX512 or RDM signals, and can also be set to automatic mode, master-slave mode or sound activation mode. The control system transmits instructions to each component, adjusts parameters such as beam angle, color, effect, etc., to achieve the desired light effect.


Application:

Dance performance: Dance performances require exquisite lighting effects to highlight the dancers' movements and emotions. Cutting lights can present a colorful dance scene on stage through flexible colors and light and shadow effects.

Hotel banquet: Used for lighting decoration in hotel banquet halls or banquet venues, adding a sense of luxury and atmosphere to the banquet and enhancing the dining experience of guests.



Company introduction

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.



Service:
Provide after-sales service

display:

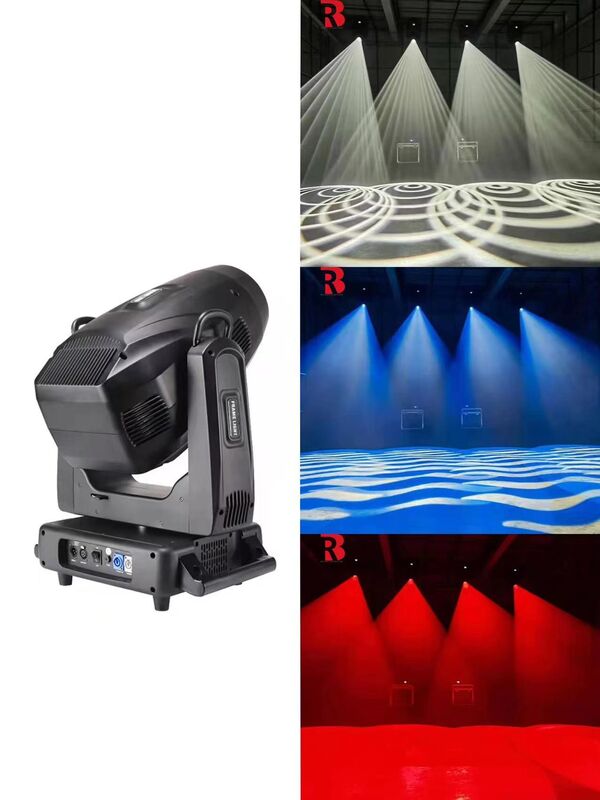

700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light 0

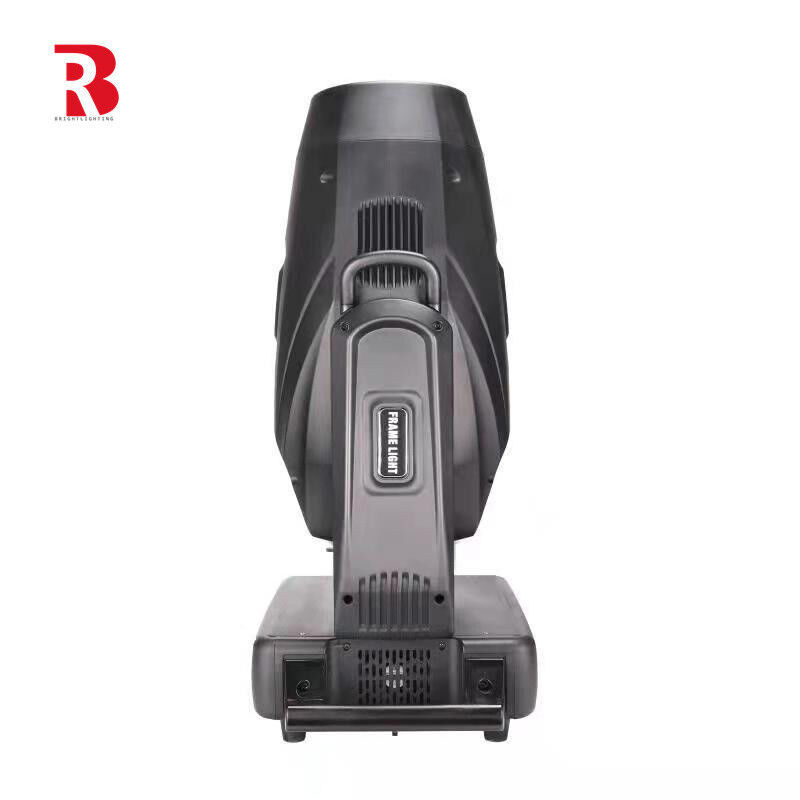

700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light 1

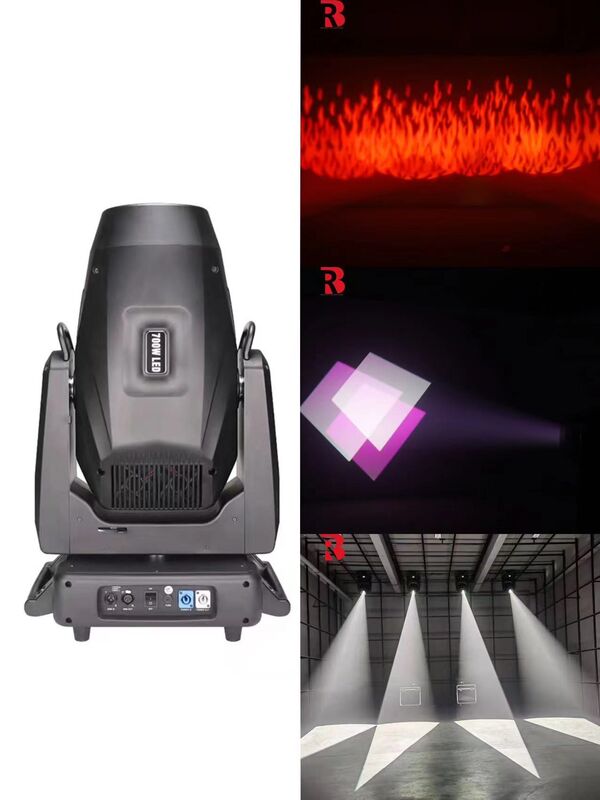

700w Framing BSWF 4-in-1 LED Moving Head Profile DJ Disco Theater Stage Light 2
