DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light

DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light

700w LED Framing Stage Light

28000LM LED Framing Stage Light

DMX512 LED Framing Stage Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-700F

Contact Us
Request A Quote
Product Details
Luminous Flux:
28000LM
Control Mode:
DMX512, RDM, Auto Mode, Master-slave, Sound Activation
Channel Mode:
36CHs
Display System:
2.7-inch Touch LCD Display, Chinese And English Display, 180-degree Rotation
Fixed Color:
7 Colors + Open Position
Color Mixing System:
Independent CMY Color Mixing System
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light

Specifications:
Input voltage: AC100-240V, 50/60Hz
Rated power 980W
Light source: 700W LED module
LED life: 20,000 hours
Color temperature: 6800K
Caliber: 138mm Frontal lens for greater performance
Color rendering index Standard mode Ra>75, high CRI mode Ra>90
Luminous flux: 28000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 7 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2700K-7000K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 8 fixed gobos+open position
Rotating gobo Wheel: 6 gobos (pluggable), outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: 0~100% linear atomization
Iris system: 5%~100% smooth adjustment
Beam Aperture: 4.5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: Protection rate:
Working environment: 0-45
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 40KG
Product gross weight: 48.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp

Additional details:

Production process The cutting lamp is made of high-quality materials, precision-processed and rigorously tested to ensure product stability and reliability. During the production process, the process flow is strictly controlled to ensure product quality.



Application:

Stage performance: Suitable for stage performances, concerts and theaters, it can create a rich audio-visual experience for actors and audiences through precise beam control and diverse light and shadow effects.

Film and television production: In film, TV series and advertising production, cutting lights can be used to create lighting effects, such as simulating dynamic flames or flowing water, to enhance the realism and drama of the scene.



Company introduction

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.



Service:
Provide after-sales service

display:

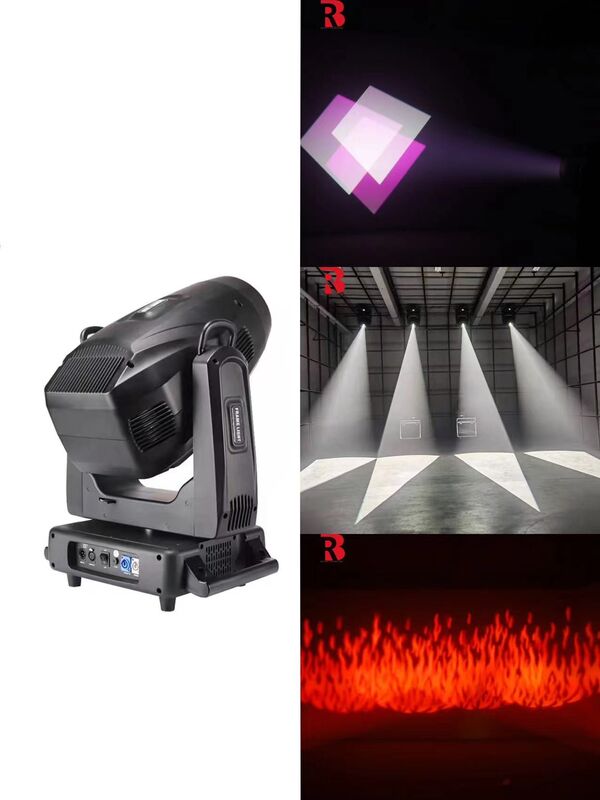

DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light 0

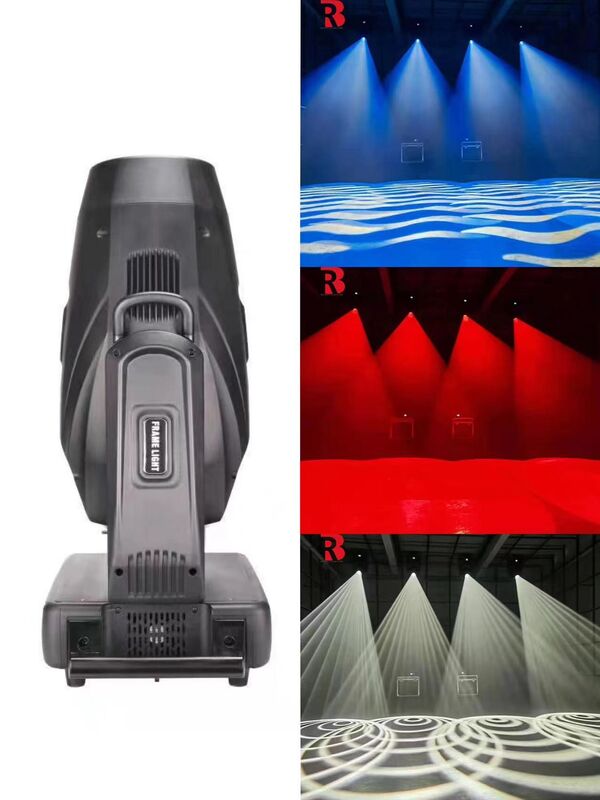

DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light 1

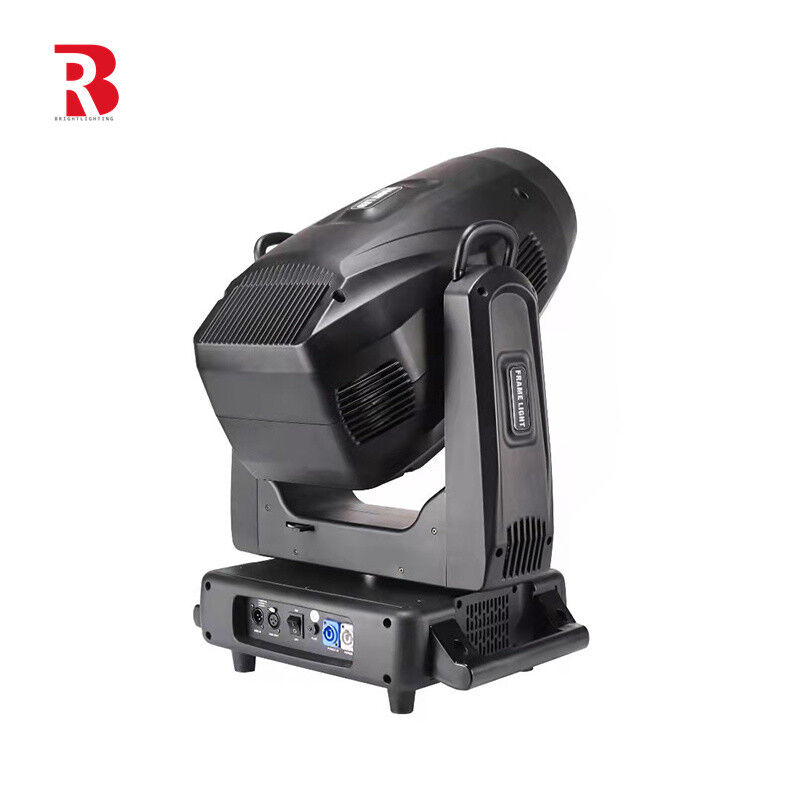

DMX512 28000LM BSWF Effect 700w Framing LED Moving Head Profile Stage Light 2
