DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party

DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party

Outdoor LED Beam Moving Head

380W LED Beam Moving Head

Stage LED Beam Moving Head

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-B380

Contact Us
Request A Quote
Product Details
Channel Mode:
18 International Standard DMX512 Channels
Light Source:
OSRAM SIRIUS HRI 371
Prism Disc 1:
18+16 Prism
Exposure Angle:
2.2° Or 2.3°
Prism Disc Ii:
A Straight Line With 8 Prisms
Voltage:
110-240 - V, 50/60 Hz
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description

DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party

Specifications:
Channel mode: 18 international standard DMX512 channels
Light source: OSRAM SIRIUS HRI 371
Voltage: 110-240 - v, 50/60 hz
Power: 650 w
Beam angle parallel beam angle 1.9 degrees
High-speed strobe pulse strobe, strobe speed 1-20 times per second
Color disc: 1 fixed color wheel, including 13 color chips with white light, colorful effect, half color effect
Colorful 1 independent seven-color rainbow effect
Color chip quality imported from Italy, special high temperature resistant raw materials, to achieve strong and bright vividness
Fixed pattern disc: a fixed pattern plate, containing 14 patterns + 1 flowing pattern
Prism: one sixteen prism and one (8+16+24) prism, prisms can be overlapped
Prism disc 1: 18+16 prism
Prism disc ii: a straight line with 8 prisms
Exposure Angle: 2.2° or 2.3°
Dimming: independent dimming device, 0-100% linear
Focusing high-precision glass optical lens, electronic linear high-definition adjustment
Atomization 1 independent atomization effect, the light spot is soft and natural
IP protection grade: IP65
Horizontal/Vertical Horizontal scanning angle 540 degrees (16BIT precision scanning), vertical scanning angle 270 degrees (16BIT precision scanning)
XY Motor Three-phase motor. Three-phase motor drive, powerful, faster, smoother and quieter
Beam diameter: 165mm
Bulb function: channel switch bulb and turn-on bulb function
Appearance: High temperature resistant cast aluminum shell, adopts wind direction drainage and temperature intelligent monitoring technology

Additional details:

Features and technical principles
The light source uses OSRAM SIRIUS HRI 371, with a power of 650 watts and an operating voltage range of 110-240V, 50/60Hz. The beam angle is extremely narrow, at 1.9 degrees, which is conducive to the formation of precise parallel beams. It has a high-speed flash function, with a maximum speed of 20 times per second, which is suitable for the performance of dynamic effects.

In terms of color, there is a fixed color wheel, including 13 colors and white light, which can achieve rich color effects and half-color effects. In addition, there is an independent colorful rainbow effect, which makes the color transition smoother and more natural.

The fixed pattern plate has 14 patterns plus 1 flow pattern built in, which can achieve high-definition projection through precise electronic linear adjustment. It is also equipped with a variety of prism options, including a combination of 16 prisms and (8+16+24) prisms. The prism effect can be displayed in a superimposed manner to increase the visual layering.


Application:

Art installations and exhibitions: Special lighting effects for art installations and exhibitions, presenting unique visual effects of artworks through advanced color and pattern selection.

Shopping malls and shopping centers: Used for decoration and promotion activities in commercial spaces, it can attract customers' attention and increase the attractiveness and effect of product displays.



Service:
Provide after-sales service

Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.


Display:

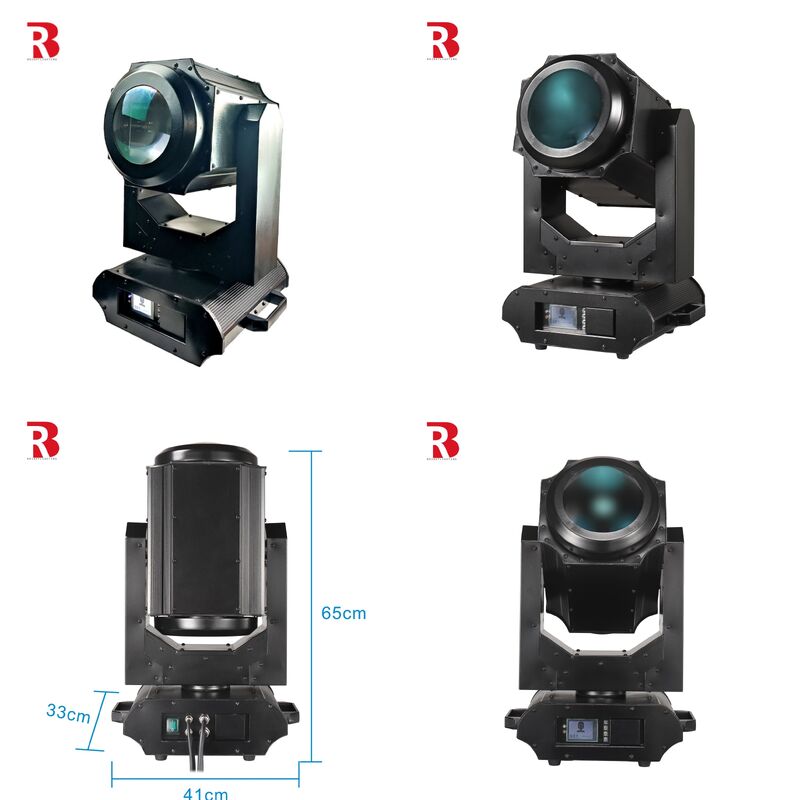

DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party 0

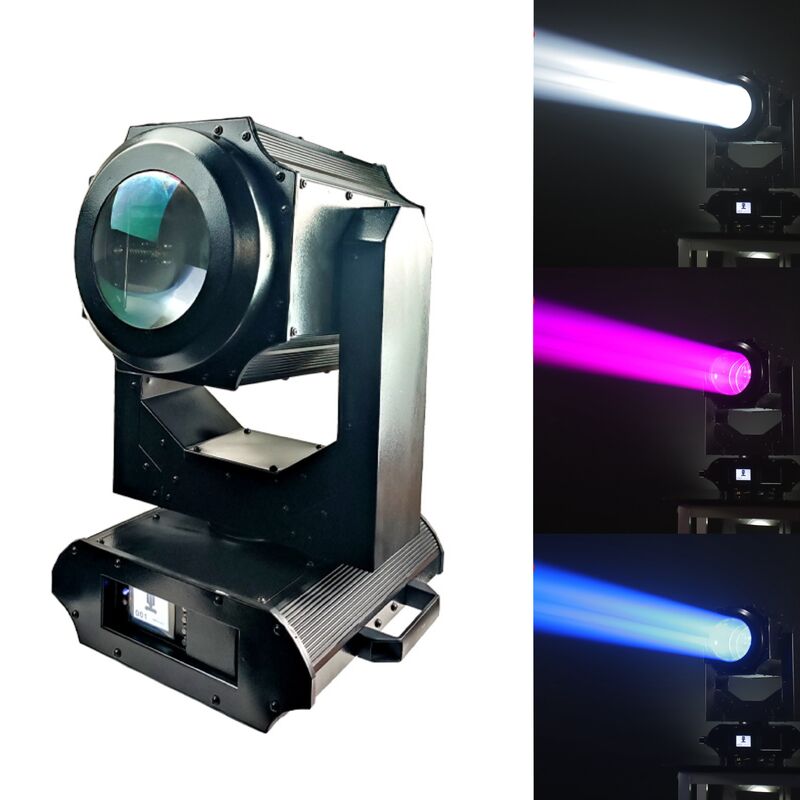

DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party 1
DMX512 LED 380W Beam Moving Head Stage Outdoor Light For The Stage Party 2
