Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-B380
Video
| Channel mode: | 18 international standard DMX512 channels |
| Light source: | OSRAM SIRIUS HRI 371 |
| Voltage: | 110-240 - v, 50/60 hz |
| Power: | 650 w |
| Beam angle | parallel beam angle 1.9 degrees |
| High-speed strobe | pulse strobe, strobe speed 1-20 times per second |
| Color disc: | 1 fixed color wheel, including 13 color chips with white light, colorful effect, half color effect |
| Colorful | 1 independent seven-color rainbow effect |
| Color chip quality | imported from Italy, special high temperature resistant raw materials, to achieve strong and bright vividness |
| Fixed pattern disc: | a fixed pattern plate, containing 14 patterns + 1 flowing pattern |
| Prism: | one sixteen prism and one (8+16+24) prism, prisms can be overlapped |
| Prism disc 1: | 18+16 prism |
| Prism disc ii: | a straight line with 8 prisms |
| Exposure Angle: | 2.2° or 2.3° |
| Dimming: | independent dimming device, 0-100% linear |
| Focusing | high-precision glass optical lens, electronic linear high-definition adjustment |
| Atomization | 1 independent atomization effect, the light spot is soft and natural |
| IP protection grade: | IP65 |
| Horizontal/Vertical | Horizontal scanning angle 540 degrees (16BIT precision scanning), vertical scanning angle 270 degrees (16BIT precision scanning) |
| XY Motor | Three-phase motor. Three-phase motor drive, powerful, faster, smoother and quieter |

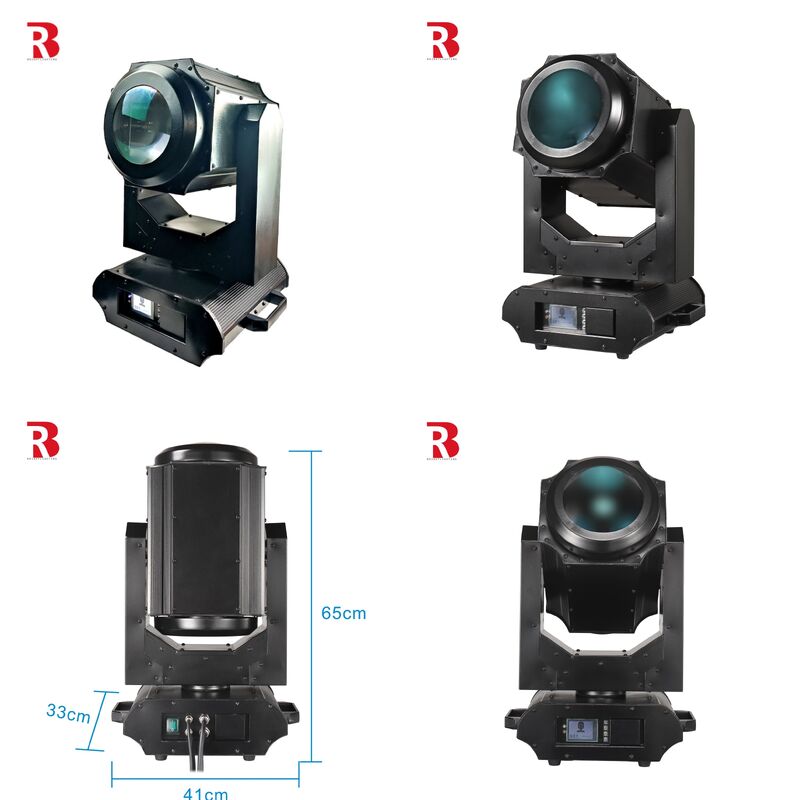

| Beam diameter: | 165mm |
| Bulb function: | channel switch bulb and turn-on bulb function |
| Appearance: | High temperature resistant cast aluminum shell, adopts wind direction drainage and temperature intelligent monitoring technology |
Working principle and advantages

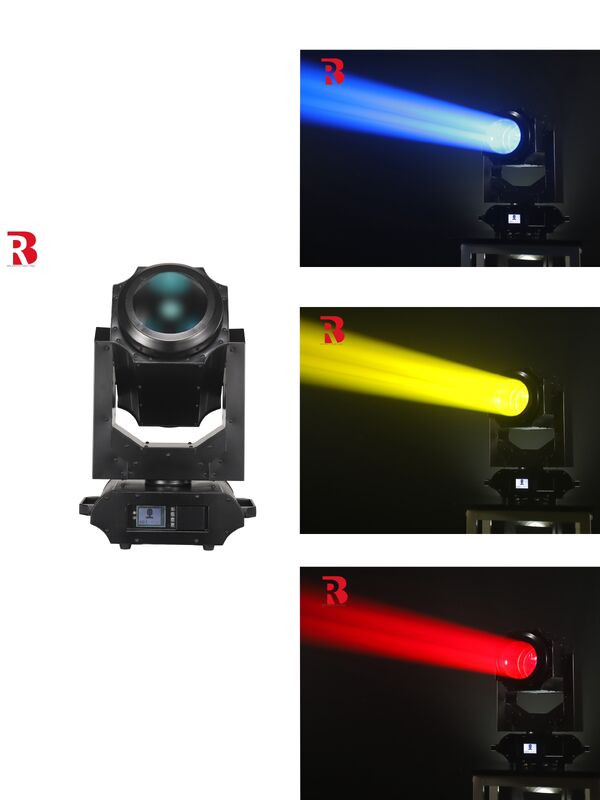

The beam moving head light is driven by a three-phase motor, with horizontal and vertical scanning angles of 540 degrees and 270 degrees respectively, and an accuracy of up to 16 bits, ensuring smooth and fast movement. The beam diameter reaches 165mm, equipped with a high-precision glass optical lens, capable of electronic linear high-definition focusing and independent dimming, ranging from 0% to 100%.
Application:
Stage performances: Suitable for all kinds of large-scale stage performances, such as concerts, stage plays and concerts. Its high-speed flash and colorful light effects can bring dynamic and visual impact to the performance.
Studio: In TV stations and recording scenes, the precision and dimmable function of the beam make it an ideal lighting choice for hosts or actors, which can enhance the clarity and artistic effect of the picture.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
