Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-B380
Video
| Channel mode: | 18 international standard DMX512 channels |
| Light source: | OSRAM SIRIUS HRI 371 |
| Voltage: | 110-240 - v, 50/60 hz |
| Power: | 650 w |
| Beam angle | parallel beam angle 1.9 degrees |
| High-speed strobe | pulse strobe, strobe speed 1-20 times per second |
| Color disc: | 1 fixed color wheel, including 13 color chips with white light, colorful effect, half color effect |
| Colorful | 1 independent seven-color rainbow effect |
| Color chip quality | imported from Italy, special high temperature resistant raw materials, to achieve strong and bright vividness |
| Fixed pattern disc: | a fixed pattern plate, containing 14 patterns + 1 flowing pattern |
| Prism: | one sixteen prism and one (8+16+24) prism, prisms can be overlapped |
| Prism disc 1: | 18+16 prism |
| Prism disc ii: | a straight line with 8 prisms |
| Exposure Angle: | 2.2° or 2.3° |
| Dimming: | independent dimming device, 0-100% linear |
| Focusing | high-precision glass optical lens, electronic linear high-definition adjustment |
| Atomization | 1 independent atomization effect, the light spot is soft and natural |
| IP protection grade: | IP65 |
| Horizontal/Vertical | Horizontal scanning angle 540 degrees (16BIT precision scanning), vertical scanning angle 270 degrees (16BIT precision scanning) |
| XY Motor | Three-phase motor. Three-phase motor drive, powerful, faster, smoother and quieter |

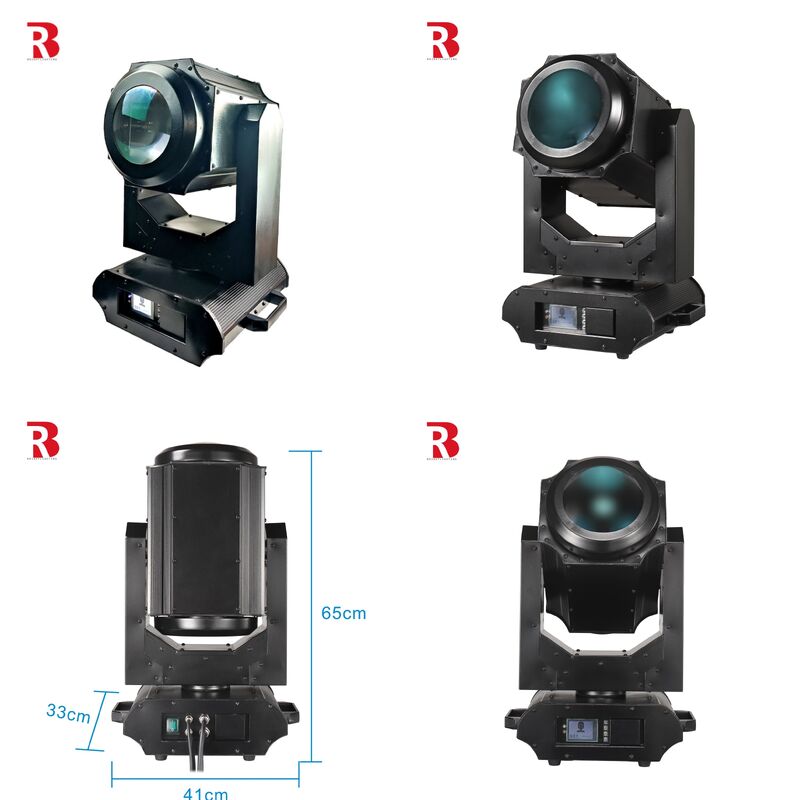

| Beam diameter: | 165mm |
| Bulb function: | channel switch bulb and turn-on bulb function |
| Appearance: | High temperature resistant cast aluminum shell, adopts wind direction drainage and temperature intelligent monitoring technology |
Precautions
Since the lamp has an IP65 protection level, it is suitable for indoor and outdoor use, but attention must be paid to waterproof and dustproof measures, especially in harsh weather conditions. During use, the cleaning and maintenance of the lamp and optical components need to be checked regularly to ensure performance and life.
Overall, this beam moving head light is suitable for large-scale stage performances and professional lighting design needs due to its powerful functions and exquisite manufacturing technology. It is an important tool in modern stage lighting.
Application:
Conference and Exhibition: As the main lighting equipment for conference halls and exhibition halls, it supports multiple preset modes and custom options to meet the lighting needs of different conferences or exhibitions.
Outdoor Events and Celebrations: The IP65 protection rating makes it suitable for various indoor and outdoor events and celebrations, whether it is a city festival celebration or an outdoor event stage, it can perform well.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
