Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-B480
| Features: | The latest third-generation motherboard, support RDM, display programming. With built-in program. |
| Voltage: | AC100V-240V, 50/60HZ |
| Light source: | OSRAM461 |
| Total power: | 800W |
| Beam angle: | parallel beam angle 1.9 degrees, linear dimming: independent dimming device, 0-100% linear dimming |
| High-speed strobe: | pulse strobe, strobe speed 1-20 times per second |
| Fixed color: | 1 fixed color wheel, including 13 color chips with white light, colorful effect, half color effect, linear color conversion and bidirectional variable speed rotating rainbow effect |
| Static pattern: | a fixed pattern plate, containing 14 patterns + 1 flowing pattern |
| Prism: | one sixteen prism and one (8+16+24) prism, prisms can be overlapped |
| Focusing: | high-precision glass optical lens, electronic linear high-definition adjustment |
| Atomization: | 1 independent atomization effect, the light spot is soft and natural |
| Colorful: | 1 independent seven-color rainbow effect |
| Color chip quality: | imported from Italy, special high temperature resistant raw materials, to achievestrong and bright vividness. |
| Horizontal/Vertical: | Horizontal scanning angle 540 degrees (16BIT precision scanning), vertical scanning angle 270 degrees (16BIT precision scanning) |
| XY Motor: | Three-phase motor. Three-phase motor drive, powerful, faster, smoother and quieter |
| Channel mode: | 18 international standard DMX512 channels |
| Beam diameter: | 165mm |
| Bulb function: | channel switch bulb and turn-on bulb function |
| Appearance: | High temperature resistant cast aluminum shell, adopts wind direction drainage and temperature intelligent monitoring technology |
| Protection level: | IP65 |
Working principle and advantages

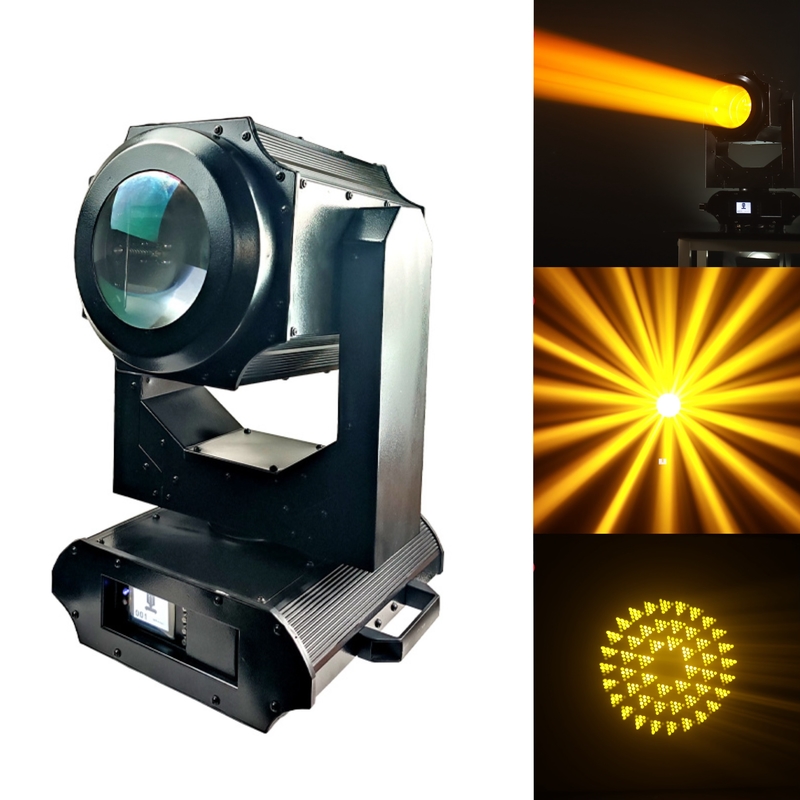

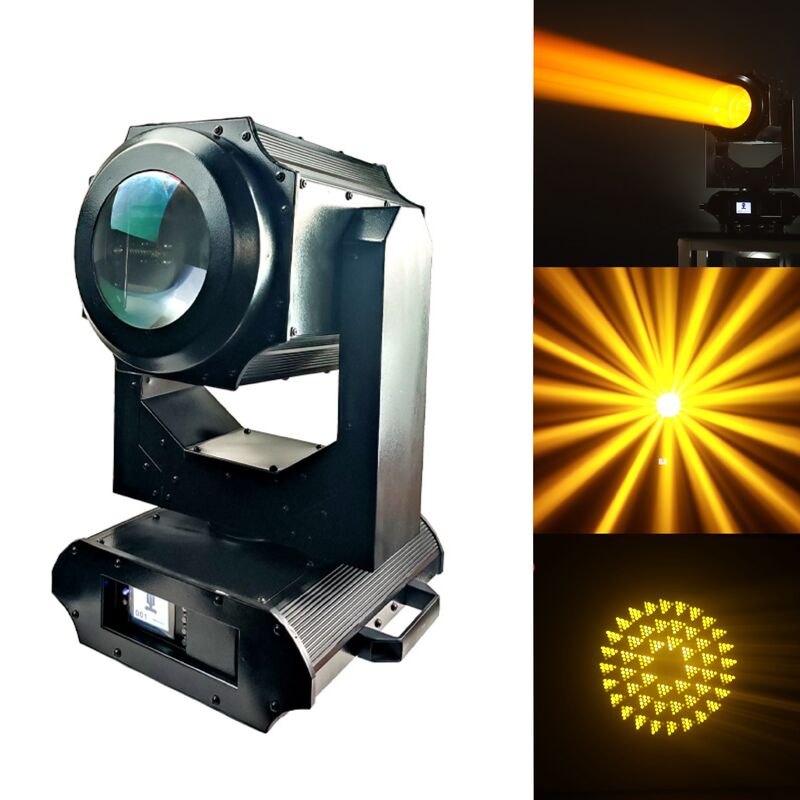

This 480W beam moving head light uses advanced optical design and electronic control technology to accurately adjust the movement and light effect of the beam through the DMX512 control system, which is suitable for all kinds of stages and performances. Its advantages lie in its diverse optical effects and dynamic performance capabilities, and it can provide high-quality and high-stability lighting effects to meet the needs of professional stage lighting design.
Optical system:
Equipped with high-precision glass optical lens and electronic linear high-definition adjustment function, it can achieve precise focal length adjustment to ensure the clarity and projection effect of the light beam.
Special effects:
Independent atomization effect module can make the light spot soft and natural, adding to the stage atmosphere.
Separate colorful rainbow effect, through colorful light and shadow effects, enrich the stage performance.
Application:
Banquets and weddings: Used for lighting decoration in banquet halls and wedding venues to create a romantic and warm atmosphere for the event.
Art exhibitions: In art exhibitions, the display effect and appreciation of artworks are enhanced through the projection and effect display of lights.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
