DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco

DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco

IP65 LED Beam Stage Light

480W LED Beam Stage Light

DMX512 LED Beam Stage Light

Place of Origin:


Brand Name:

Bright lighting


CE ISO9000

Model Number:


Contact Us
Request A Quote
Product Details
Light Source:
One Sixteen Prism And One (8+16+24) Prism, Prisms Can Be Overlapped
Fixed Color:
1 Fixed Color Wheel, Including 13 Color Chips With White Light, Colorful Effect, Half Color Effect, Linear Color Conversion And Bidirectional Variable Speed Rotating Rainbow Effec
1 Independent Seven-color Rainbow Effect
Protection Level:
Color Chip Quality:
Imported From Italy, Special High Temperature Resistant Raw Materials, To Achievestrong And Bright Vividness.
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Packaging Details
Carton Flightcase
Delivery Time
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description

DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco


Features: The latest third-generation motherboard, support RDM, display programming. With built-in program.
Voltage: AC100V-240V, 50/60HZ
Light source: OSRAM461
Total power: 800W
Beam angle: parallel beam angle 1.9 degrees, linear dimming: independent dimming device, 0-100% linear dimming
High-speed strobe: pulse strobe, strobe speed 1-20 times per second
Fixed color: 1 fixed color wheel, including 13 color chips with white light, colorful effect, half color effect, linear color conversion and bidirectional variable speed rotating rainbow effect
Static pattern: a fixed pattern plate, containing 14 patterns + 1 flowing pattern
Prism: one sixteen prism and one (8+16+24) prism, prisms can be overlapped
Focusing: high-precision glass optical lens, electronic linear high-definition adjustment
Atomization: 1 independent atomization effect, the light spot is soft and natural
Colorful: 1 independent seven-color rainbow effect
Color chip quality: imported from Italy, special high temperature resistant raw materials, to achievestrong and bright vividness.
Horizontal/Vertical: Horizontal scanning angle 540 degrees (16BIT precision scanning), vertical scanning angle 270 degrees (16BIT precision scanning)
XY Motor: Three-phase motor. Three-phase motor drive, powerful, faster, smoother and quieter
Channel mode: 18 international standard DMX512 channels
Beam diameter: 165mm
Bulb function: channel switch bulb and turn-on bulb function
Appearance: High temperature resistant cast aluminum shell, adopts wind direction drainage and temperature intelligent monitoring technology
Protection level: IP65
Additional details:

Production process and operation method
During the production process, high-temperature cast aluminum technology and high-quality raw materials are used to ensure that the product has good durability and stability. During operation, it is necessary to keep the equipment dry and clean to prevent water vapor and foreign matter from entering the interior of the lamp to ensure its long-term stable operation.

Control and scanning:

The horizontal scanning angle reaches 540 degrees, the vertical scanning angle is 270 degrees, 16-bit precision scanning is adopted, and high-performance three-phase motor is equipped to ensure smooth, accurate and low-noise operation.

Protection and design:

The protection level reaches IP65, the shell is made of high-temperature cast aluminum, and the design takes into account temperature monitoring and wind direction drainage technology to meet the use needs under various harsh environmental conditions.


Large events: It can be used for stage layout and lighting design of large events, such as exhibitions, celebrations, etc., to add atmosphere and visual effects to the venue.

Clubs and nightclubs: It is suitable for stage lighting effects in clubs and nightclubs, adding dynamics and live atmosphere to nightlife venues.


Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.

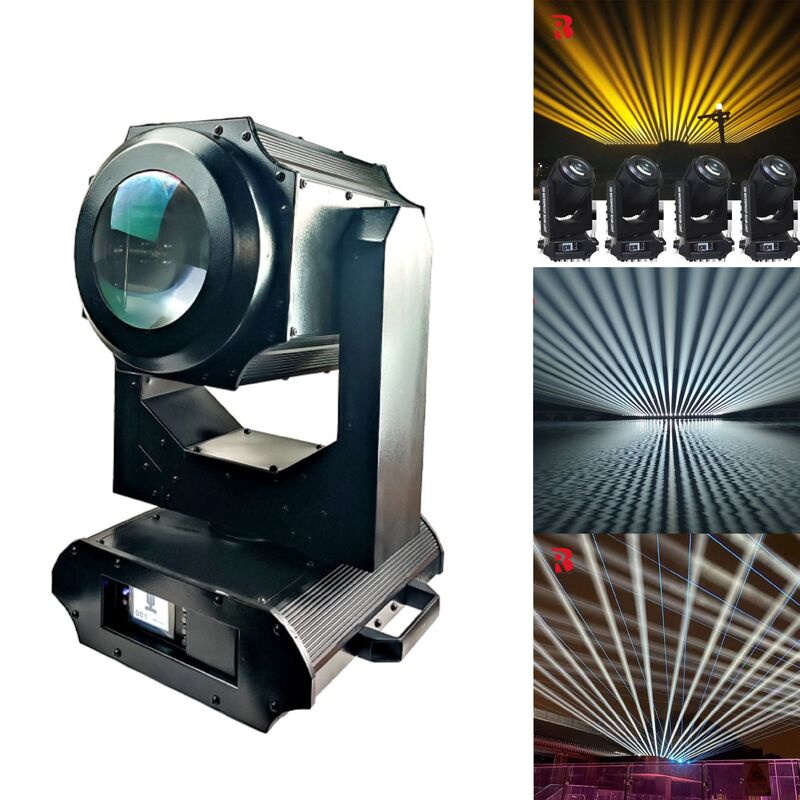

DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco 0

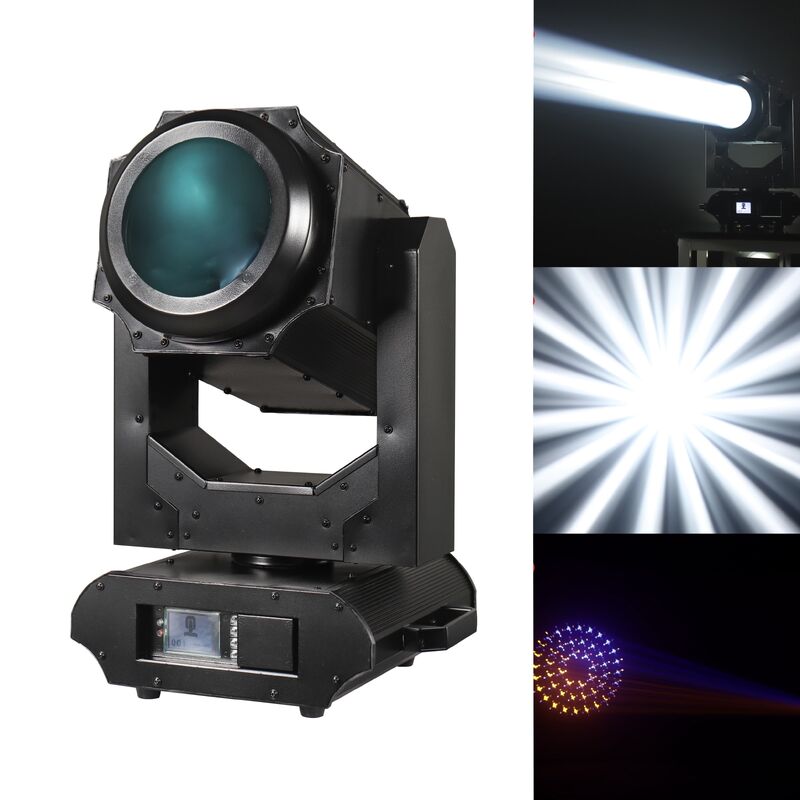

DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco 1

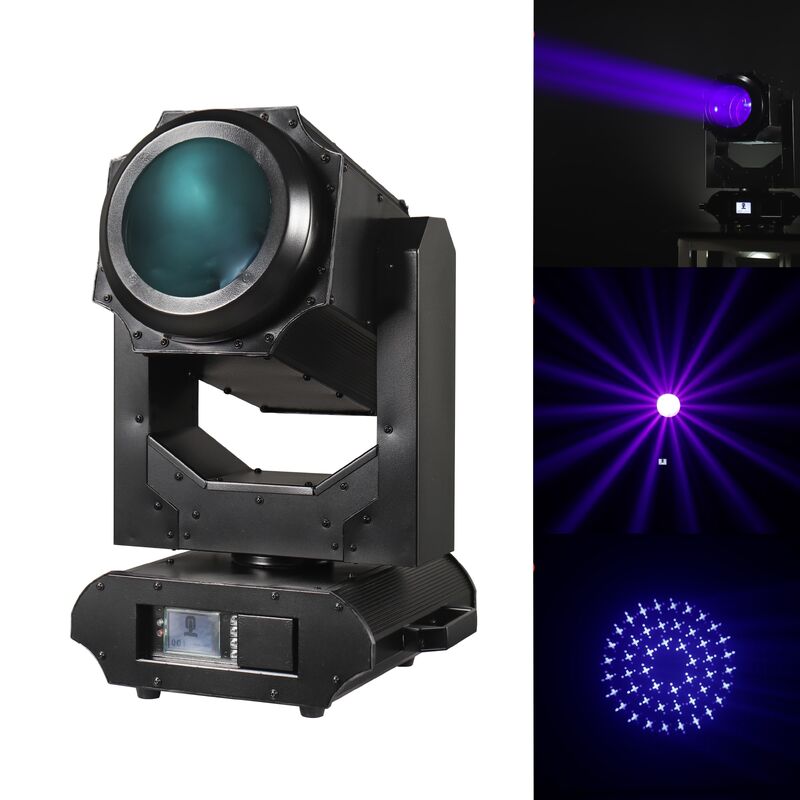

DMX512 Waterproof IP65 LED 480W Moving Head Stage Beam Spot Light For DJ Disco 2
