Place of Origin:
China
Brand Name:
Brightlighting
Certification:
CE
Model Number:
BR-640W

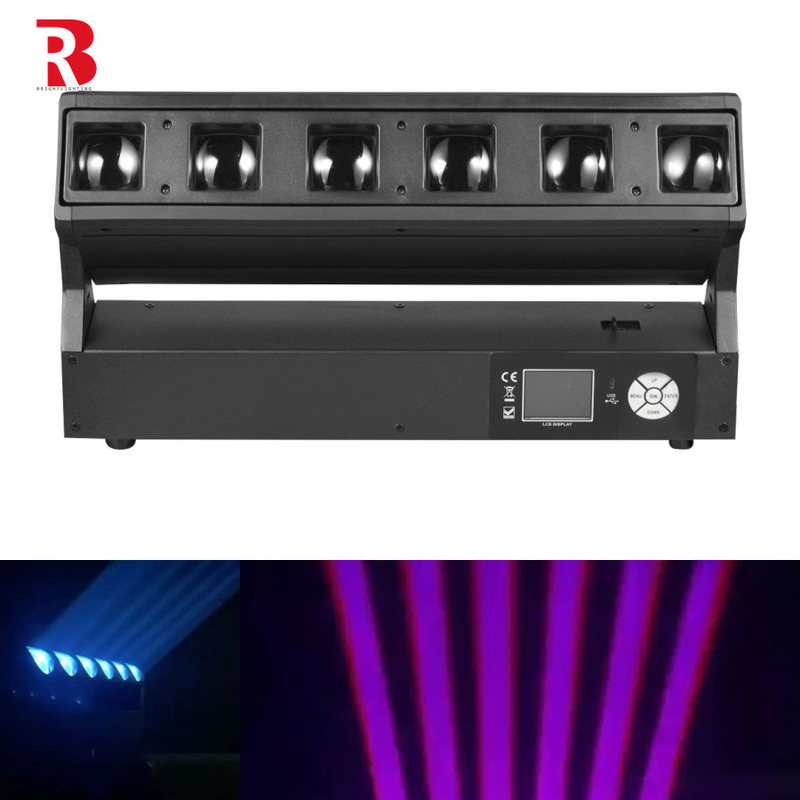

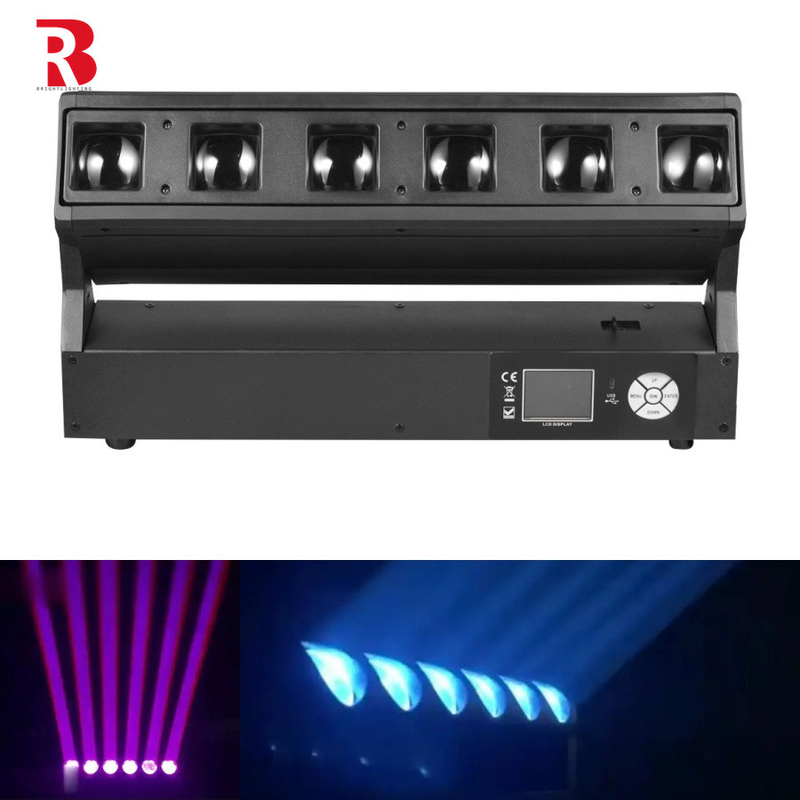

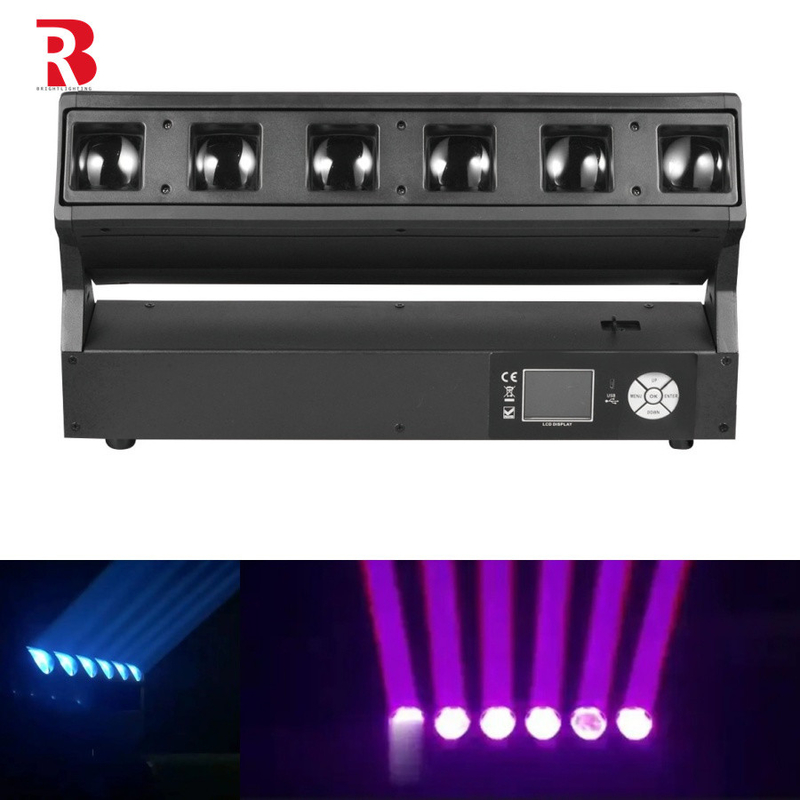

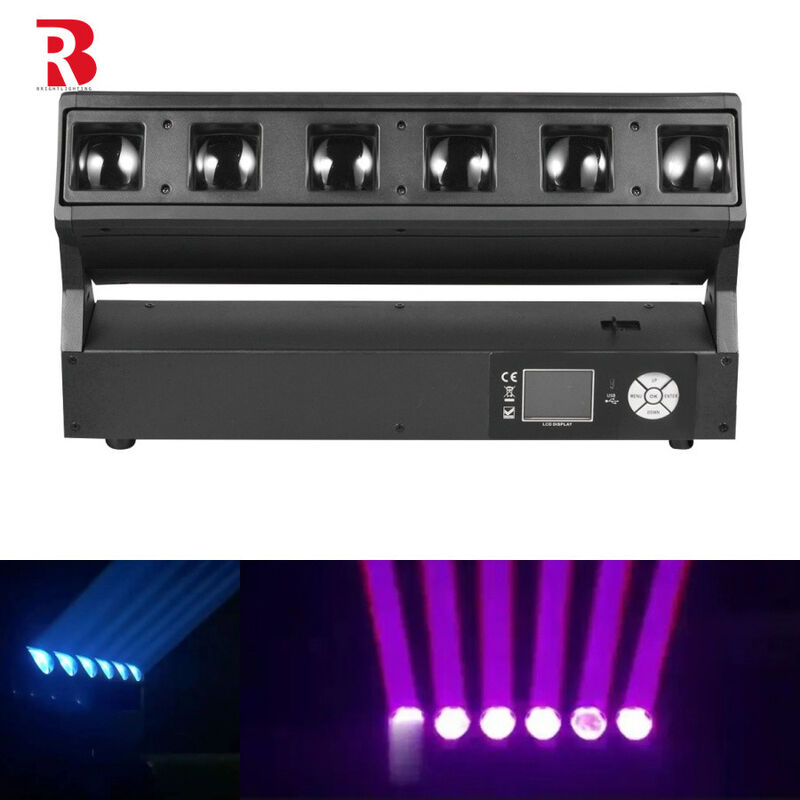

LED Technology RGBW 4in1 Moving Head Light LED 6*40W For Versatile Performance
key principles:
Control System: Operates under DMX control, a digital communication protocol widely used in lighting systems. DMX enables seamless integration with lighting consoles to manage parameters such as color, movement, strobe effects, and intensity.
Strobe Functionality: Includes a strobe effect feature characterized by rapid light pulses. This effect adds dynamics to the lighting display, ideal for creating energetic moments synchronized with music beats or enhancing visual impact during performances.
Cooling and Safety: Incorporates an efficient cooling system to manage heat dissipation generated by the LEDs and moving parts. This ensures stable operation and extends the lifespan of the fixture.
Application: Designed for professional use in DJ performances, disco parties, clubs, and stage productions where dynamic lighting effects are essential for creating ambiance and engaging audiences.
Here's a breakdown of its technical principles:
DMX Control: It likely utilizes DMX (Digital Multiplex) control, a standard protocol used for controlling stage lighting and effects. This allows for precise control over the fixture's color, movement, intensity, and other parameters.
Strobe Effect: The fixture is capable of producing a strobe effect, which is a rapid flashing of light. This effect can be used to create dramatic moments or to synchronize with the beat of music.Cooling System: Given the power output of the LEDs and the moving parts, the fixture likely includes a cooling system to prevent overheating and ensure optimal performance over extended periods.
LED Technology: The light employs LEDs (Light Emitting Diodes) as its light source. LEDs offer advantages over traditional bulbs, including energy efficiency, longer lifespan, and the ability to produce a wide range of colors.
RGBW Color Mixing: The fixture features red, green, blue, and white LEDs that can be mixed to create a vast array of colors. This RGBW (Red, Green, Blue, White) color mixing allows for rich and saturated hues as well as subtle pastel shades.
Moving Head Design: The fixture is a moving head light, meaning it can pan (move horizontally) and tilt (move vertically), allowing for dynamic lighting effects that can cover a wide area or focus on specific points.
Specifications:
Voltage | AC110-240V 50/60Hz |
Max Power | 300W |
Source | 6pcs 40W RGBW 4in1 led |
Beam degree | 1:7 zoom range from 5°-35 |
Tilt | 220 degree+ fine |
LED Lifetime | Average 50,000 hours |
LED | pixel control |
Strobe | 20 times one second |
Dimmer | 0-100% linear dimmer |
Channel | 14/18/32 three channel mode |
Control mode | DMX-512,Auto-run, Sound activated |
Cooling system | fan forced cooling system |
Working environment | indoor |
Net weight | 9.2 KG |
Fixture size | 51*10*30 cm |
