Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE
Model Number:
BR-FX1000
Specifications:
LED Type: 5050 1.5W RGB 3in1 LEDs
LED Count: 480
LED Colors: RGB
LED Segments: 20 (2 x 10)
Strobe Tube LEDs
LED Type: 3535 5W LEDs
LED Count: 144
LED Colors: Cool-White+Amber
LED Segments: 8+8
Resolution: 8-16 Bit
Tilt (Degrees): 185°
Control Modes: 10CH / 20CH / 77CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Cooling: Temperature controlled, overheating protection
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects

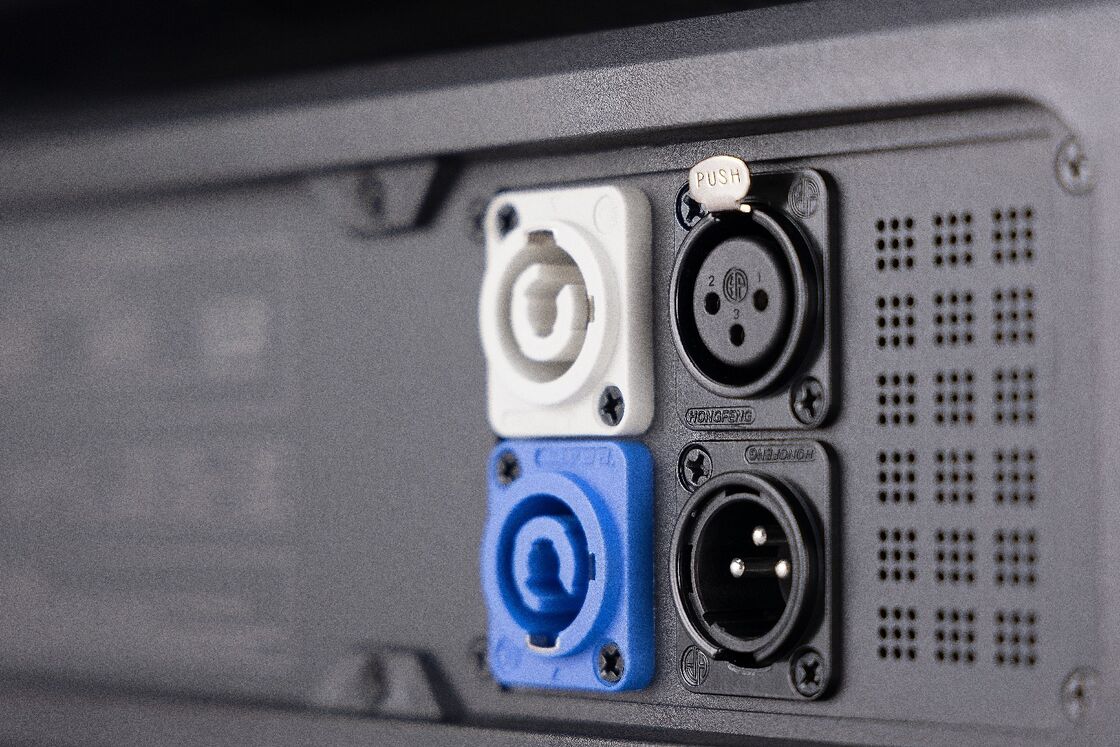

Signal connection: XLR 5-Pin or 3-Pin In/Out
Power Input: PowerCON In/Out
Operating Conditions
Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
Operating Position: any
Mounting Options
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets
Shipping
Single fixture: cardboard
Tourpack: 4-way Flight Case
Housing Colors
Standard colors: black
Weight & Size
Size: 58x36x19cm (carton)
Weight: 10KG (carton)
Size: 94x50x49cm (4in1 flight case)
G.W.: 57KG (4in1 flight case)
Working principle:
1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.
Application :
1.Applied in shopping malls, trade shows, and product launches to attract attention and highlight brand image.
2.Interior Decor: Used for home decoration, restaurants, and clubs to add artistic lighting and a sense of style.
