Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE
Model Number:
50*50 dance floor

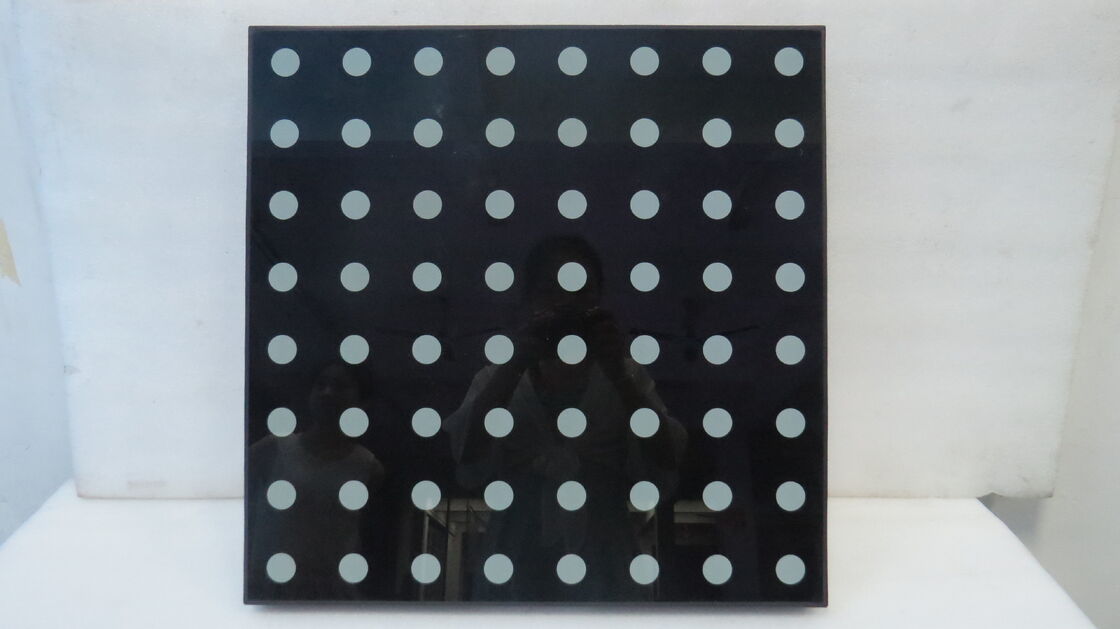

Product Overview:
1, This product is the latest development of the LED digital dance floor, with high brightness.
2, With 5050 SMD 3IN1 high brightness LED lamp board.
3, SD control or PC software control are both available, to achieve gorgeous effects. With optional of Remote control, audio control and DMX control.

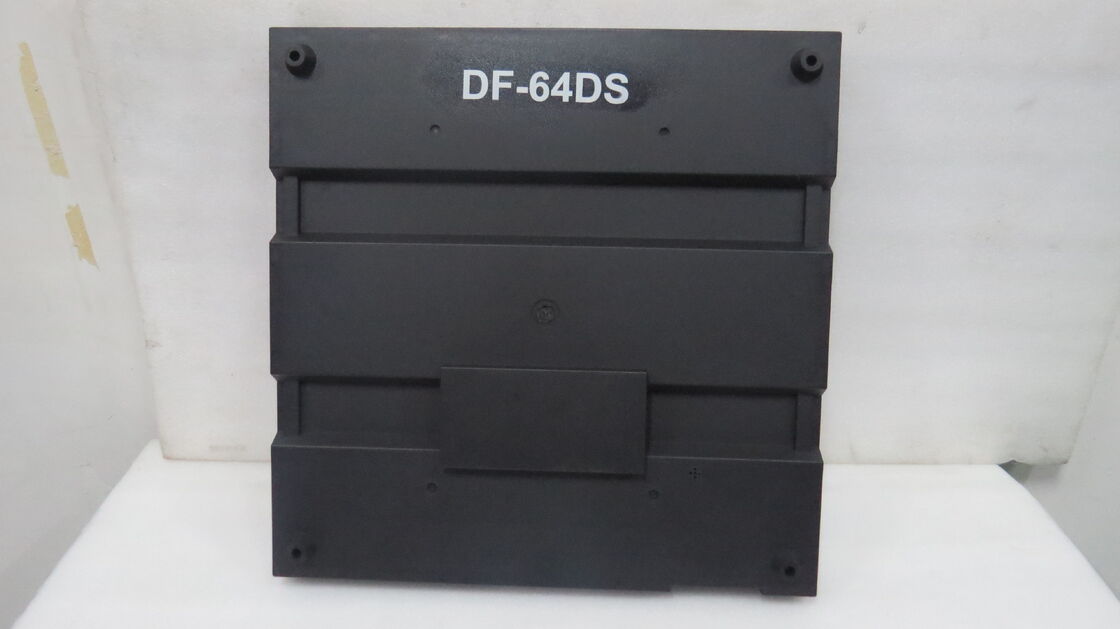

4, With metal housing base, tempered glass. Advantage are light weight, ultra-thin, sophisticated, high-end.
5, With wireless magnetic connection, very simple, convenient, fast and safe to install.
| Control mode | SD control with DMX512, sounds active PC control ( Madrix acceptable) |
| Dimension(mm) | L500*W500*H70mm |
| LED quantity(pcs/unit) | 64 |
| Light source | 5050 SMD 3in 1 |
| Max power | 10W |
| Input voltage | DC24V |
| Net Weight | 7.5KG |
| Brightness | Hight Brightness |
| Resolution(L*W) | 8*8 |
| Surface material | Tempered glass |
| Base housing material | metal |
| Bearing weight | 500KG/m2 |
| Protection level | IP55 |
| Visual angle | 120° |
| Working temperature | -20~ +45℃ |
| Lifespan | ≥50,000 hours |
| Insulation grade | CLASSE II |
Module installation method:
Note:
Be careful in installation,avoid bump and damage, please take the light when the stitching.
Do not power and signal when splicing. After splicing and then power and communication.

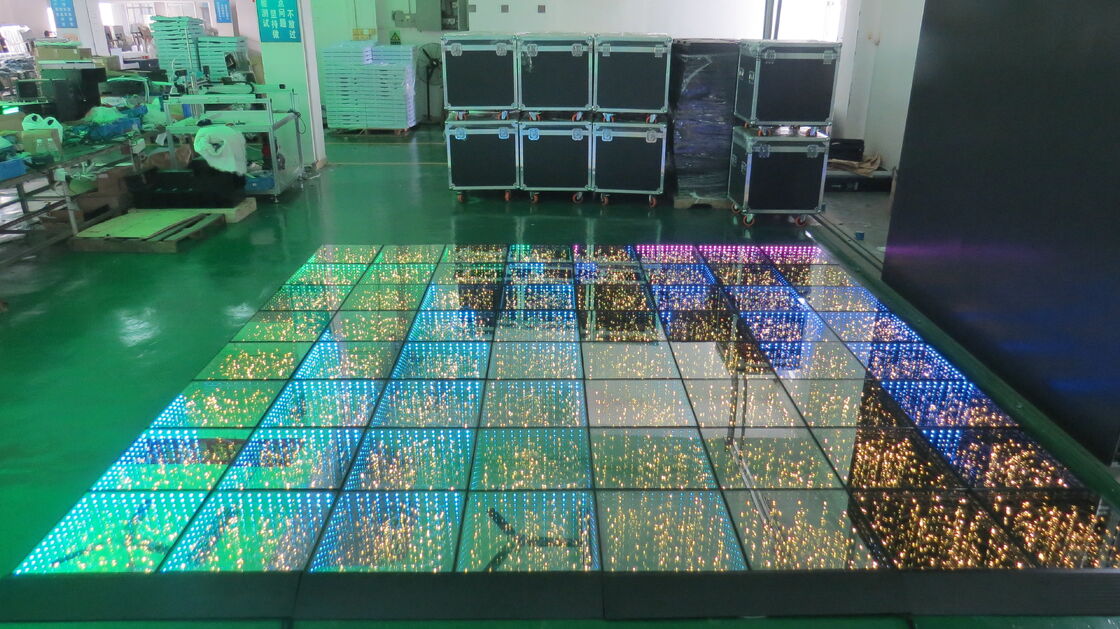

Display:
