Place of Origin:
China
Brand Name:
Brightlighting
Certification:
CE
Model Number:
BR-326T

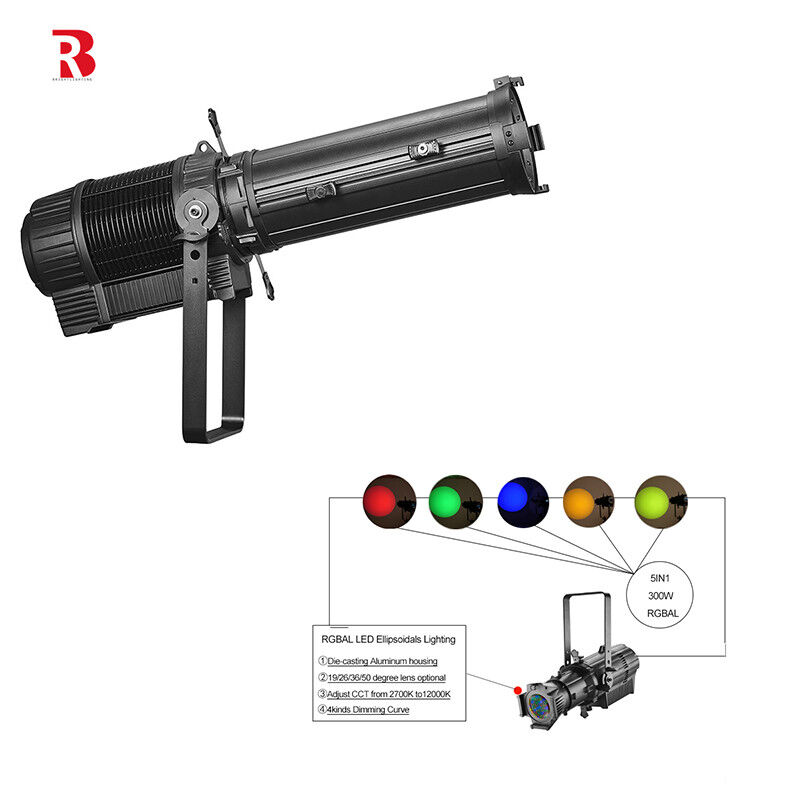

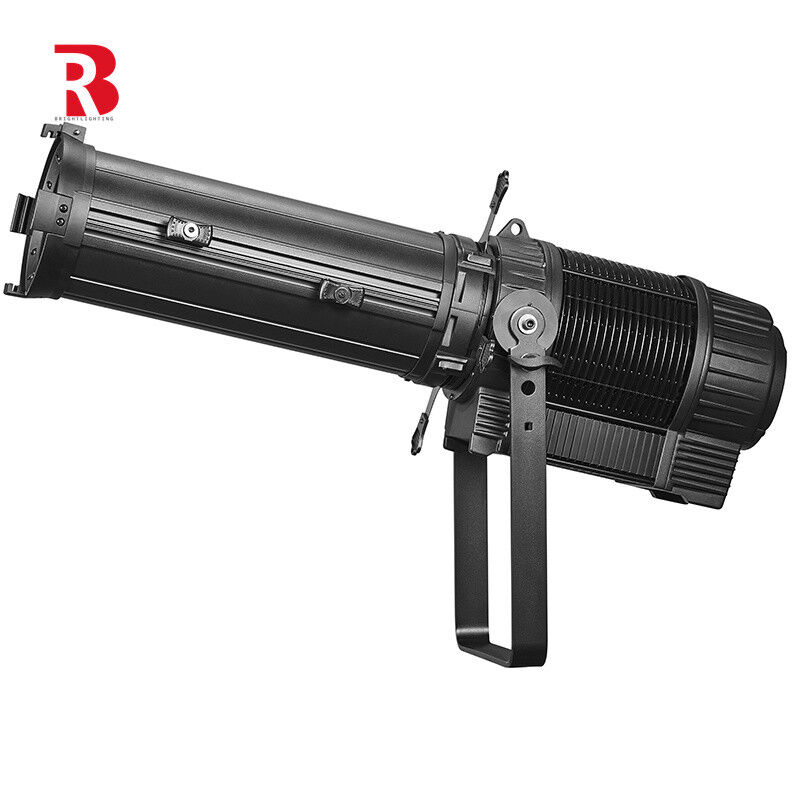

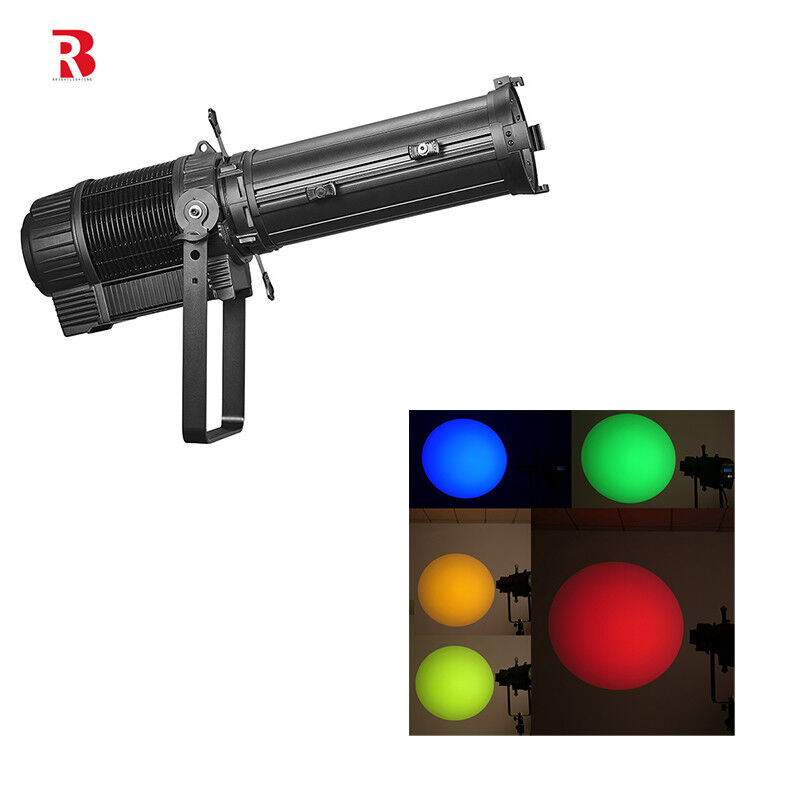

240V 300W LED Strobe Warm White Colorful LED Stage Light For Concert
Specifications:
| LED POWER: | 200W/300W |
| LED Color: | RGBAL 5in1(300W),RGBW 4in1(200W), CW or WW (200W/300W) COB LED |
| Color temperature(300W 5in1): | Fully Tuneable from 2,700 to 12,000K |
| LED Life Time: | over 50,000 hours |
| Voltage: | AC100-240V |
| Max.power : | 200W/300W |
| Zoom Functin: | Manual zoom |
| Beam Angle: | 12°to 30° or 25°to 50° |
| Focus: | Can be adjusted by hand |
| Housing: | Die-casting Aluminum |
| Dimming Curve: | 4 kinds |
| Dimming Frequency: | 500HZ - 25000HZ optional |
| Strobe : | 1-25times/sec |
| Technology: | High-quality optical system, glass aspherical |
| Touch screen: | LCD with touch screen |
| Control Protocol: | RDM / DMX |
| Control System: | DMX, Auto run and Master/Slave |
| DMX Channels: | 1/2CH(single color), 4/7(RGBW),5/10CH(RGBAL) |
| Working Temperature: | -10°C~40°C |
| Cooling System: | Fan-less no noise |
| Thermal Sensor Monitoring: | Over-temperature Protection |
| IP Grade: | IP65 |
| Net Weight: | 14.5 kgs |
| Gross Weight: | 16 kgs |
| Packing Size: | 99.5*37.5*36 cm (12-30 degree) |
| 86*35*36 cm(25-50 degree) |
Matters needing attention:
1:Avoid using in high temperature and high humidity environment for a long time, so as not to affect the life of the lamp.
2:Clean the surface of lamps and cooling fans regularly to ensure smooth heat dissipation.
3:Check the fixed installation before use to ensure that the beam lamp is in a stable state.
Working principle:
1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.
Display:
