Place of Origin:
China
Brand Name:
Brightlighting
Certification:
CE , ISO9000
Model Number:
BR-BY1940ZR
Video

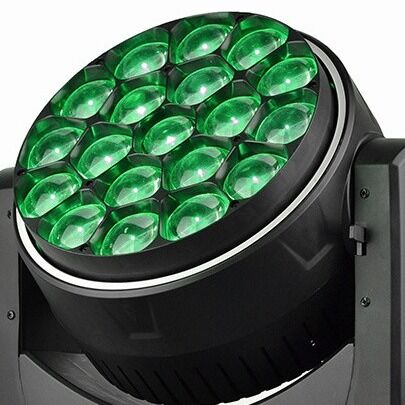

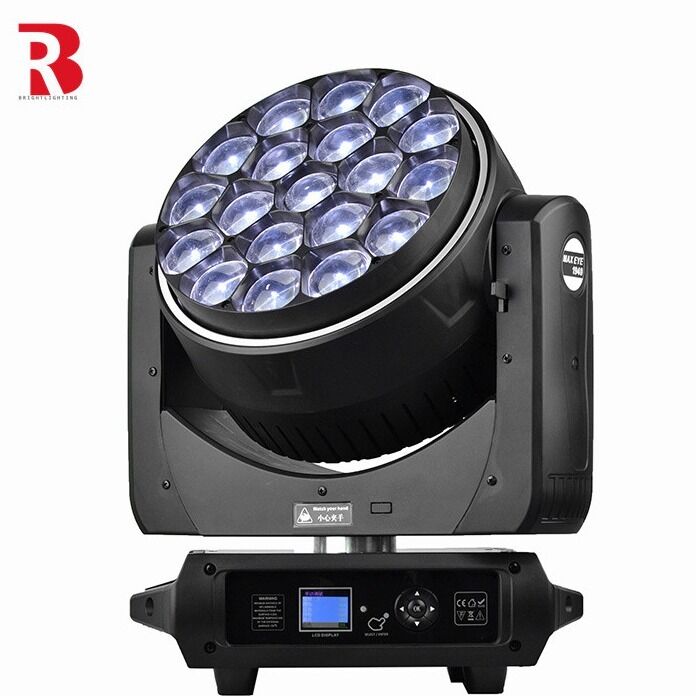

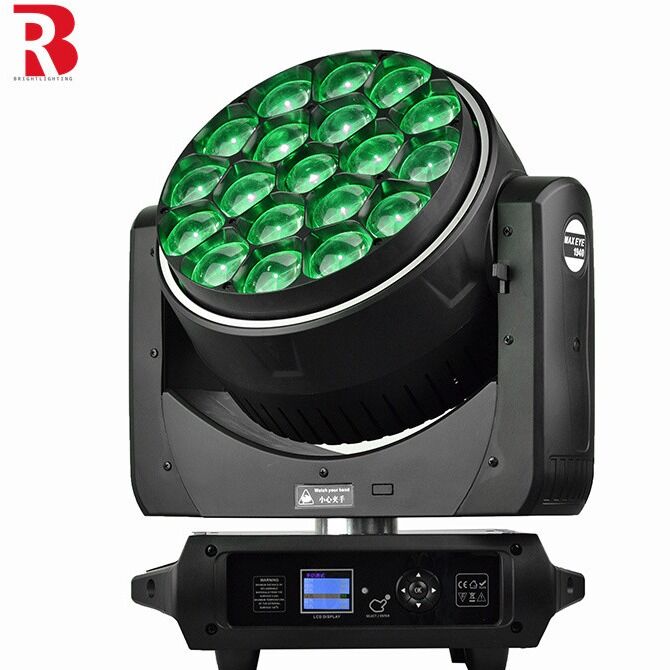

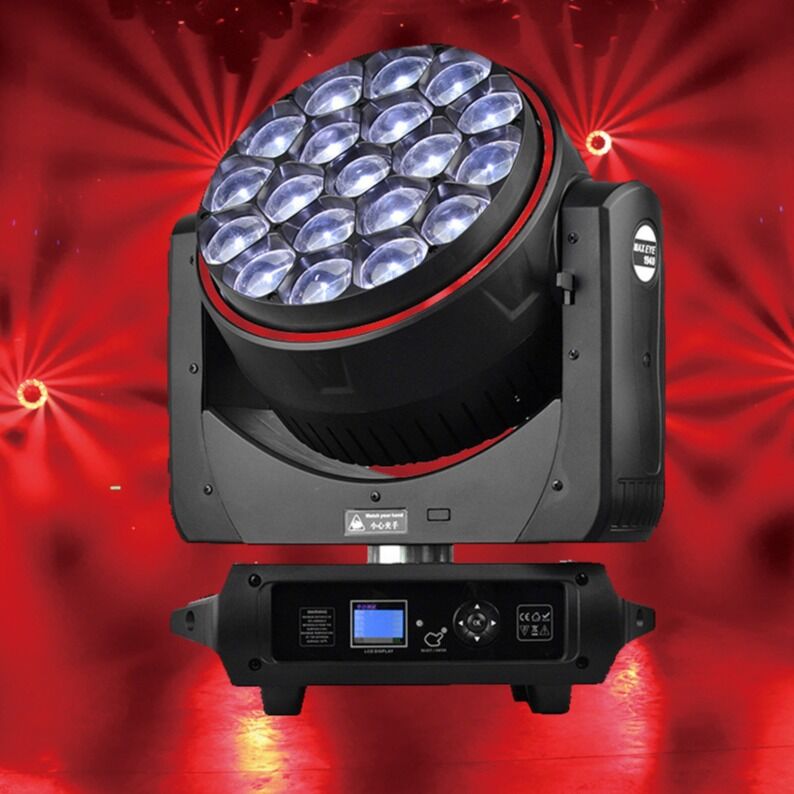

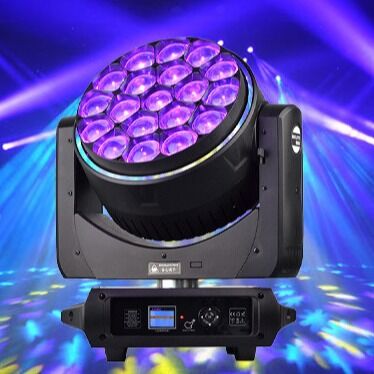

850W DMX512 Outdoor RGBW 4in1 LED Moving Head Stage Light For Entertainment
Matters needing attention:
1:Avoid using in high temperature and high humidity environment for a long time, so as not to affect the life of the lamp.
2:Clean the surface of lamps and cooling fans regularly to ensure smooth heat dissipation.
3:Check the fixed installation before use to ensure that the beam lamp is in a stable state.
Specifications:
| Voltage: | AC100V～240V 50-60HZ |
| Rated Power: | 850W |
| LED Source: | 19x40W high power RGBW 4 in 1 LEDs |
| Zoom: | 7°-45° |
| Strobe: | 0-25Hz |
| Control Mode: | DMX512,Sound -actived,Master/slave |
| DMX Channels: | 21/26/36/43/78/119 six channel mode |
| Dimmer: | 0-100% linear dimmer with 4 kinds of dimmer curve. |
| Pan: | 540°+16 bit fine |
| Tilt: | 220°+16 bit fine |
| Display: | LCD display with touch buttons. |
| IP: | IP20 |
| Fixture dimension: | 434*260*577mm |
| N.W: | 15.2Kg |
| G.W: | 18.7Kg(Carton) |
| Package dimension: | 48*38*51CM (1pc/ctn) |
Display:
Working principle:
1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.
