Name: DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal
Brand: Guangzhou Bright Electronic Co.Ltd
SKU: BR-Mini680
Availability: InStock

Home > products > LED Framing Stage Light >

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

Model Number:

BR-Mini680

Request A Quote

Product Details

Display System::

2.8-inch Touch LCD Display, Chinese And English Display, 180-degree Rotation

Control Mode::

DMX512, RDM, Auto Mode, Master-slave, Sound Activation

IP Rate:

IP20

Material:

Aluminum Alloy

Type:

Framing Light

Rated Power:

950W

LED Life:

20,000 Hours

Signal Interface:

Three-pin XLR (five-pin XLR Optional)

Payment & Shipping Terms

Minimum Order Quantity

5PCS

Price

Negotiable

Packaging Details

Carton Package FlightCase

Delivery Time

7-15days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

300PCS

Laser 3 in 1 China Manufacturers For Event

Get Best Price

Video

New High Quality 3 in 1 Laser light China Manufacturers For Event

Get Best Price

Video

New High Quality Magic ball 3 in 1 Laser light China Manufacturers For Event

Get Best Price

Video

New High Quality Magic ball 3 in 1 Laser light China Manufacturers

Get Best Price

Contact Now

Product Description

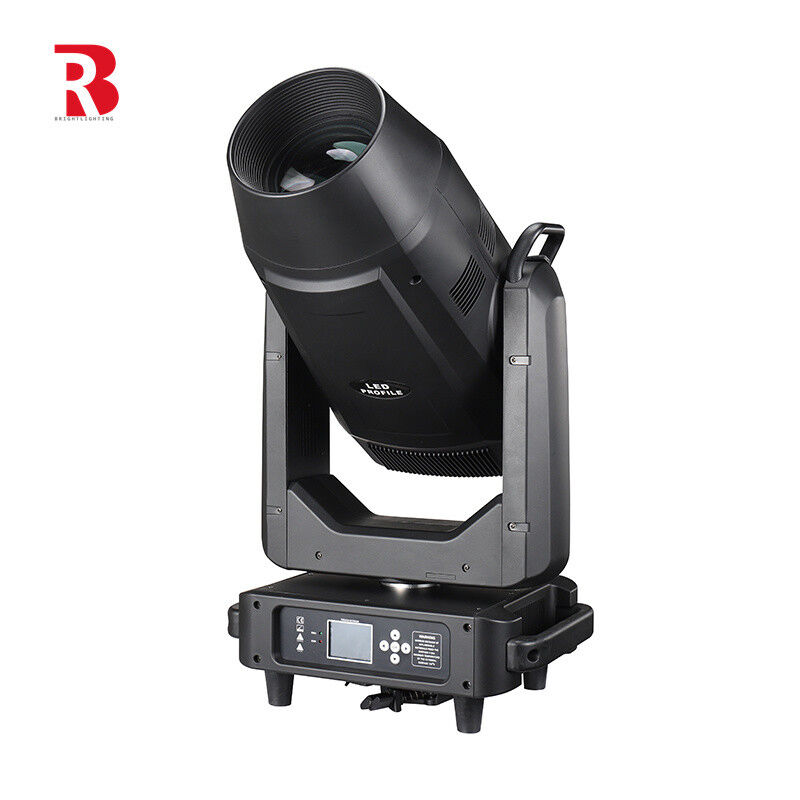

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal

Specifications:

Input voltage:	AC100-240V, 50/60Hz
Rated power:	950W
Light source:	600W LED module
LED life:	20,000 hours
Color temperature:	6500K
Caliber:	130mm Frontal lens for greater performance
Color rendering index:	Standard mode Ra>75, high CRI mode Ra>90
Luminous flux:	24000LM
Signal interface:	three-pin XLR (five-pin XLR optional)
Control mode:	DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode:	41CHs
Display system:	2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color:	6 colors + open position
Color mixing system:	independent CMY color mixing system
Color temperature adjustment:	independent CTO 2500K-7000K linear adjustment
Prisms:	Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel:	dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel:	7 plug-in fixed gobos with an outer Rotating gobo Wheel: 8 gobos (pluggable),
Framing system:	4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system:	0~100% linear atomization
Iris system:	6%~100% smooth adjustment
Beam Aperture:	5°~50° fast motorized linear zoom
Dimming system:	0-100% linear adjustment
Strobe system:	the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan:	540° (16 bit precision scanning)
Tilt:	270° (16 bit precision scanning)
Pan/Tilt:	Five-phase motor with magnetic encoding positioning function
Protection rate:	IP20
Working environment:	0-45℃
Product net weight:	30KG

Product Detail:

1.The products can be refined and customized

2.Strong signal and easy to connect

3.Perfect after-sales service

4.For Party / All kinds of show

5.Working Position: Any safe working position

Working principle:

1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.

Display:

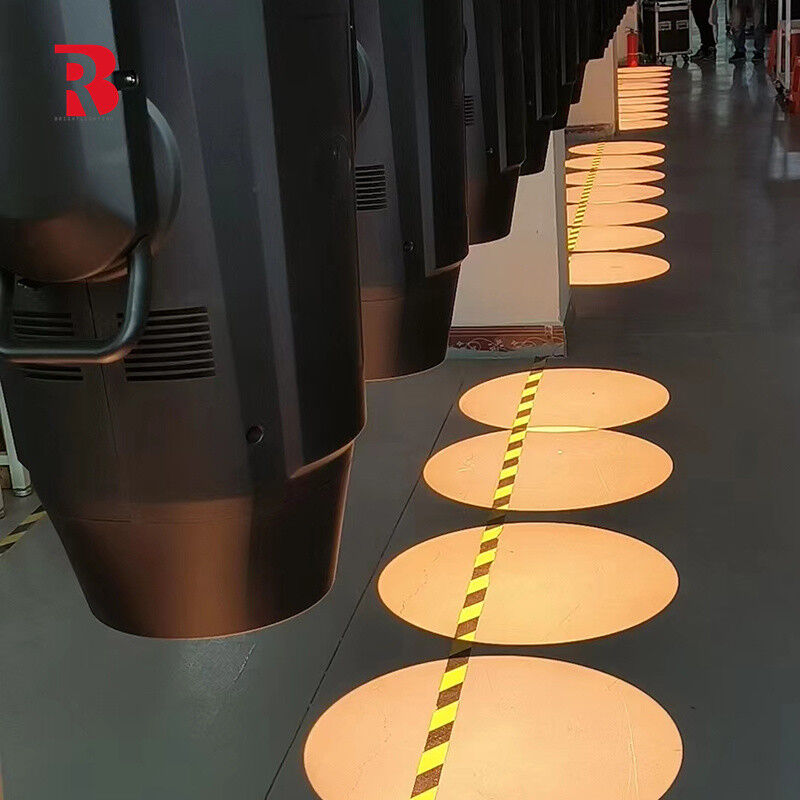

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal 2

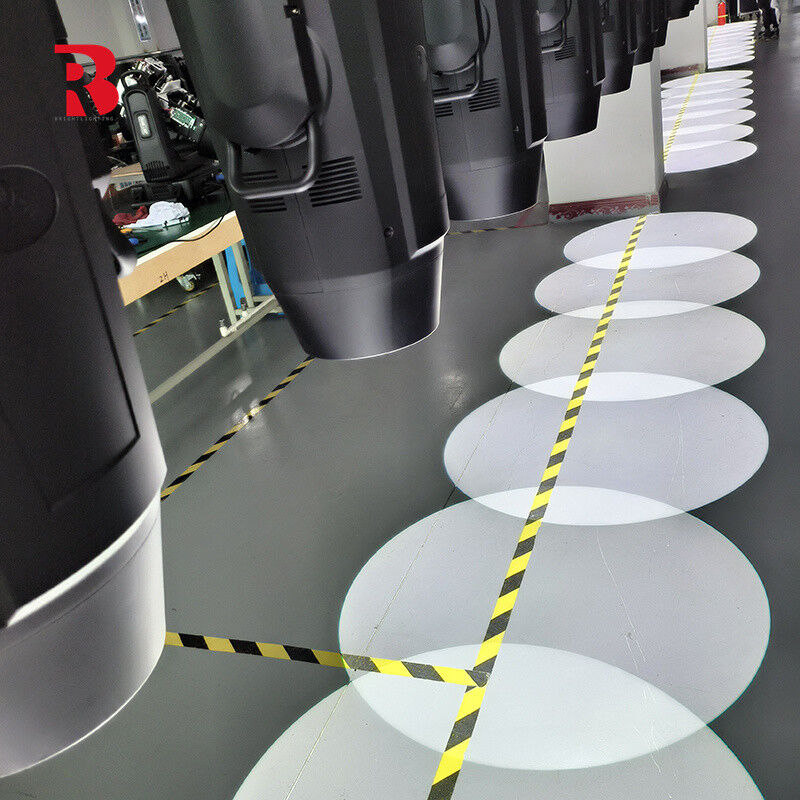

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal 3

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal 4

DMX512 CMY CTO LED Stage Light For Concert LED Framing Ellipsoidal 5
