Animation Patterns High-end Beam Moving Head Light With RGB Laser

Animation Patterns High-end Beam Moving Head Light With RGB Laser

High end Moving Head Light

Animation Patterns Moving Head Light

RGB Laser Moving Head Light

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-10W Laser

Contact Us
Request A Quote
Product Details
Laser Light Source:
R3w/638nm G3w/525nm B4w/447nm
Product Name:
Moving Head Laser + LED Wash Light
Laser Pattern:
256 Laser Animation Patterns
Laser Color:
RGB Full Color
Rated Voltage:
AC110-220V
Laser Power:
RGB 10W
Rated Frequency:
50~60Hz
Rated Power:
300W
Payment & Shipping Terms
Minimum Order Quantity
2 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15 days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description

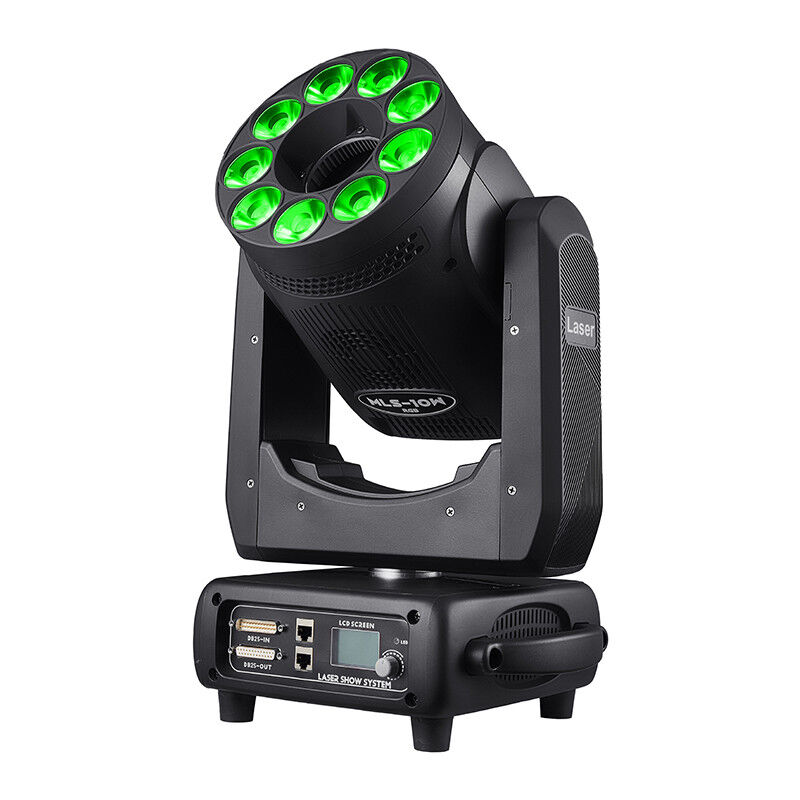

Animation Patterns High-end Beam Moving Head Light With RGB Laser



Specifications:

Modulation signal

TTL modulation (analog modulation)



Scanning system

galvanometer scanning 30KPPS



Scanning angle

plus or minus 20 degrees



Stepper motor

2 two-phase 57 motors



Horizontal / Vertical

540 degrees / 270 degrees



LED wash configuration

9 20W four-in-one high-brightness LED lamp beads



Control method

DMX512, voice control, self-propelled, computer ILDA interface, network cable Art-Net



Control channel

30 DMX512 control channels

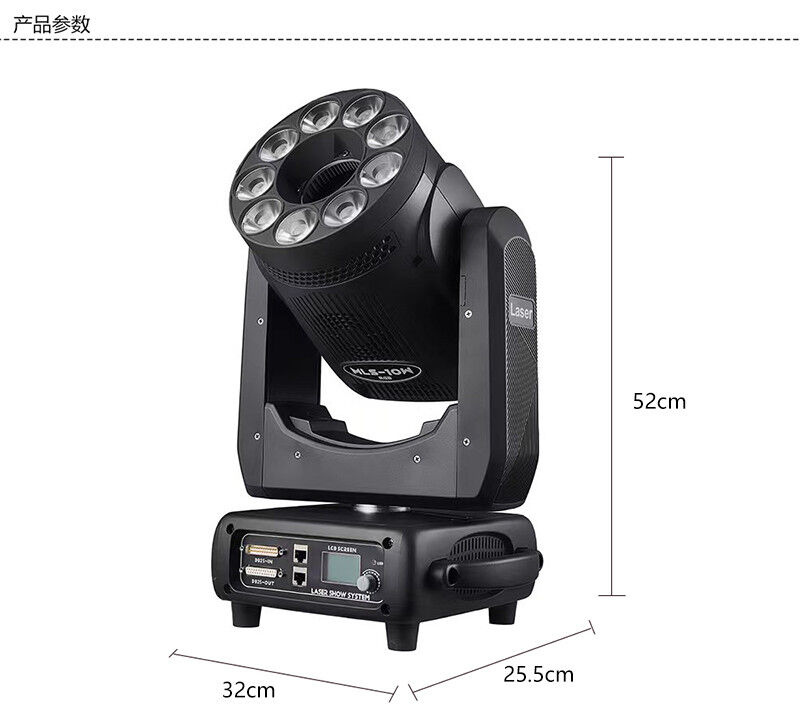

Bare lamp size / Packing size

32*25.5*52cm / 55.5*38*43cm



Net weight / Gross weight

11KG / 14KG







Additional details:

  • DMX special effects,single pattern mode, can be broken, strobe, rotate, move, roll, split, gradually draw, change color, change size and other functions.
  • Can be controlled by Pangolin QSFB3/FB4 or Phoenix laser software.
  • ilda control uses automatic electronic conversion switch, with scanning system error protection and laser light protection.
  • The ambient temperature is controlled at 0~35℃, and the dry and dust-free environment can reduce the laser power attenuation and extend the life of the lamp.
  • Fan forced cooling Shaking head laser +LED dye light.



Application:



  • Studio and film production: In studio and film production, this lamp can meet the high requirements for lighting effect accuracy and variety. Its wide range of lighting parameter adjustment and lighting effects selection can add three-dimensionality and visual impact to film and television works.
  • Ballroom and hotel lobby: For decorative lighting in banquet halls and hotel lobbies, the 10W laser stage light can create gorgeous and unique light and shadow effects , enhancing the beauty and vitality of the space.



Provide after-sales service



Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.



Display:

Animation Patterns High-end Beam Moving Head Light With RGB Laser 0

Animation Patterns High-end Beam Moving Head Light With RGB Laser 1

Animation Patterns High-end Beam Moving Head Light With RGB Laser 2

Animation Patterns High-end Beam Moving Head Light With RGB Laser 3

Animation Patterns High-end Beam Moving Head Light With RGB Laser 4
