Place of Origin:
China
Brand Name:
Brightlighting
Certification:
CE , ISO9000
Model Number:
BR-348T

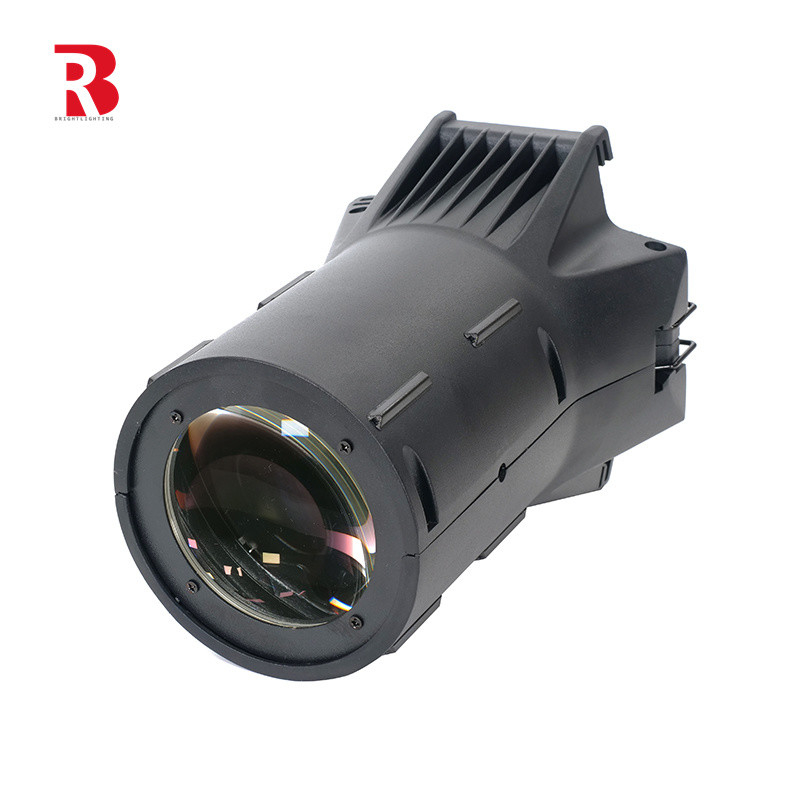

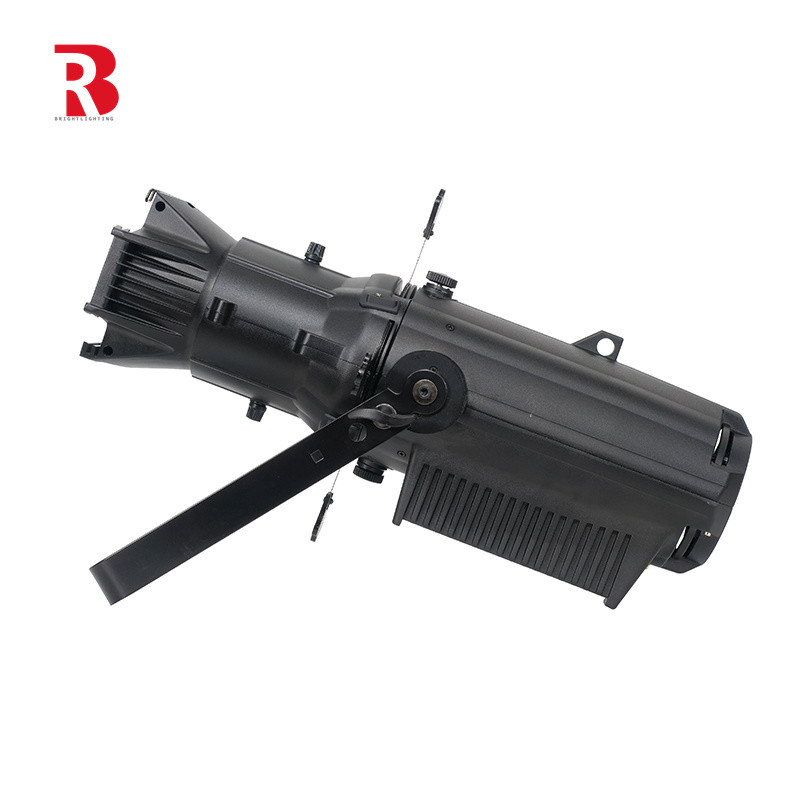

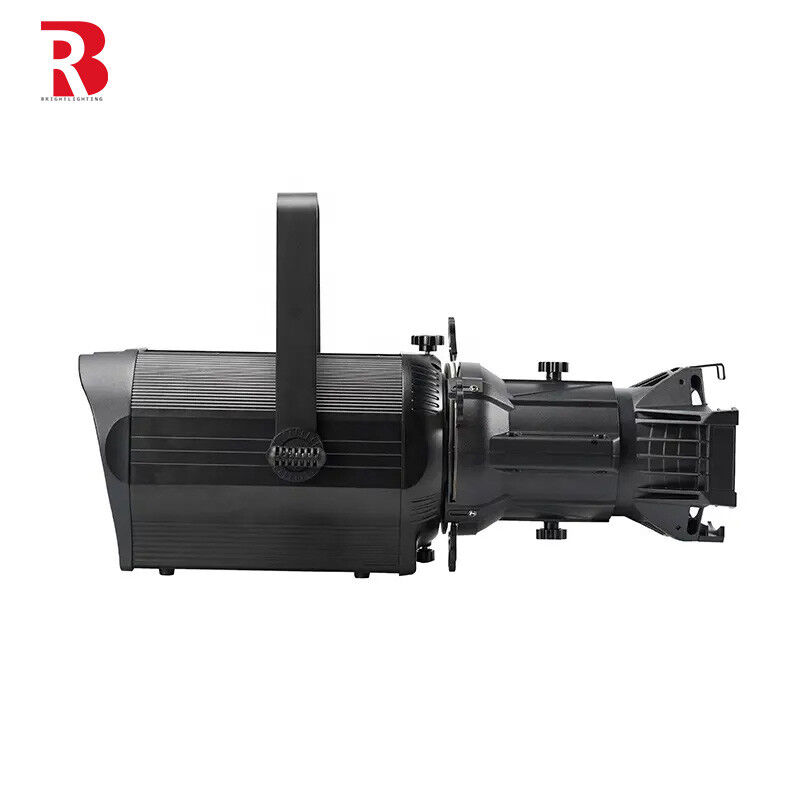

High Quality 100V 240V 4in1 Die-casting Aluminum LED Profile Spot Light For DJ Disco
Technical principle:
LED wash stage light uses LED light source to achieve color richness and change through mixing and modulation. Through the professional control system, the LED light source is dimmed, toning and other operations, so as to present different lighting effects
Working principle:
1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.
Specifications:
LED POWER: | 300W / 350W |
LED Color: | RGBW 4IN1 (350W) COB LED,RGBAL 5IN1 (300W) COB LED,Fully Tuneable from 2,700 to 12,000K (RGBAL 5IN1) |
LED Life Time: | over 50,000 hours |
Voltage: | AC100-240V |
Max.power: | 300W / 350W |
Fixed Lens: | 19°/26°/36°/50°(optional) |
Focus: | Can be adjusted by hand |
Iris: | optional |
Dimming Curve: | 4 kinds |
Dimming Mode Frequency: | 500HZ - 25000HZ optional |
Strobe : | 1-25times/sec |
Technology: | High-quality optical system ,glass aspherical |
Light body: | Die casting Aluminum |
Touch screen: | LCD with touch screen |
Feature of housing: | High quality fireproof ,corrosion-resistance, Oxidation resistance |
Control Protocol: | RDM / DMX |
Control System: | DMX, Auto run and Master/Slave |
DMX Channels: | 4/7CH(RGBW) / 5/10CH(RGBAL) |
Working Temperature: | -10~40℃ |
Cooling system: | No noise fan (copper tube) |
IP Grade: | IP20 |
Net Weight : | 10.5kgs |
Gross Weight: | 12.5 kgs |
Packing Size: | 72*33*31.5 cm (1pc/carton) |
Display:
