DMX512 MA Full Size Stage Controller System For Party Wedding Performance

DMX512 MA Full Size Stage Controller System For Party Wedding Performance

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-M3

Contact Us
Request A Quote
Product Details
Coder:
7 Imported Industrial Grade Wear-resistant Encoders (with Push Function)
Ethernet Port:
2 Gigabit Ethernet Ports, Support MA NET, ARTNET, Etc
USB Port:
5 USB Ports, 1 Backup USB Port
Interface And Display:
2 Work Light Interfaces,MIDI Input And Output Interface,2 DVI Interfaces, Expandable Two Displays
Built -in And Keyboard:
Built-in 2 Drawers, Built-in Yellow Backlit Mechanical Keyboard (backlight Brightness Adjustable)
Work Power:
Wide-voltage Industrial Power Supply 100V-240V 50/60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
DMX512 MA Full Size Stage Controller System For Party Wedding Performance

Specifications:
System: Linux operating system
Touch screen: Built-in 3 electric lifting 15.4-inch industrial full-view touch screen, 1 9-inch touch screen
Configuration: powerful i5CPU, 4G memory, built-in solid state drive
DMX: 6 DMX output ports, 1 composite DMX input port (can be set as output)
Connection: Up to 65536 channels can be connected to the NPU
Button: 30 electric replay faders with sensor function (60mm), 80 executive buttons
Control: 1 total control putter • 1 dimming wheel
Trajectory ball: 1 controllable XY axis high precision imported trackball
Electric push rod: 2 A/B field electric push rods (100mm)
Coder: 7 imported industrial grade wear-resistant encoders (with Push function)
Ethernet port: 2 Gigabit Ethernet ports, support MA NET, ARTNET, etc.
USB port: 5 USB ports, 1 backup USB port
Interface and display: 2 work light interfaces,MIDI input and output interface,2 DVI interfaces, expandable two displays
Built -in and keyboard: Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)
Work power: Wide-voltage industrial power supply 100V-240V 50/60Hz
Power: Built-in high power UPS uninterruptible power supply
Function: Support RDM function



Additional details:

Production Process:
The controller undergoes rigorous manufacturing processes to ensure high-quality components, assembly, and testing, meeting industry standards for durability and performance. Each unit is meticulously assembled and tested to guarantee consistent functionality and reliability.



Application:

Television and Film Production: In studio and on-location shoots, the controller helps achieve specific lighting moods and effects for TV shows, films, and commercials.

Architectural Lighting: It is integrated into architectural lighting systems for public spaces, buildings, and landmarks to showcase their design features and create visually appealing environments.



Service:

Provide after-sales service



Company introduction:

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.


display:

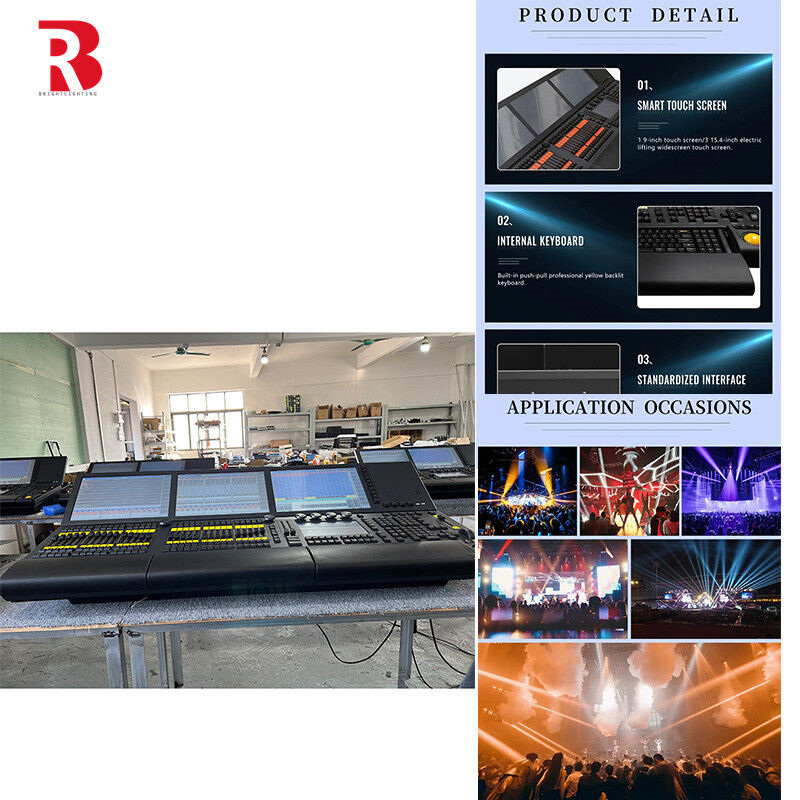

DMX512 MA Full Size Stage Controller System For Party Wedding Performance 0

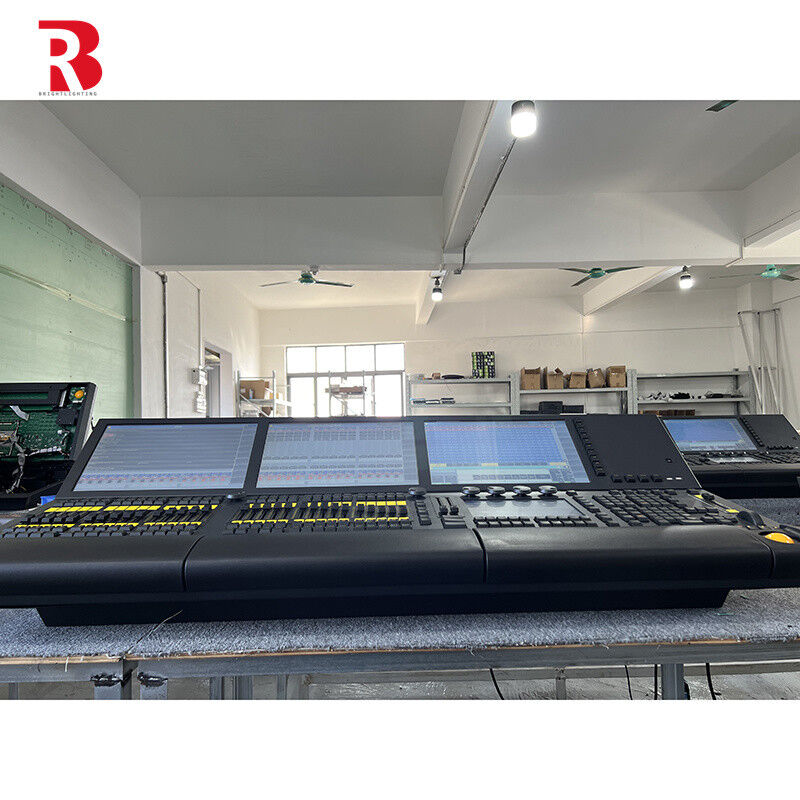

DMX512 MA Full Size Stage Controller System For Party Wedding Performance 1

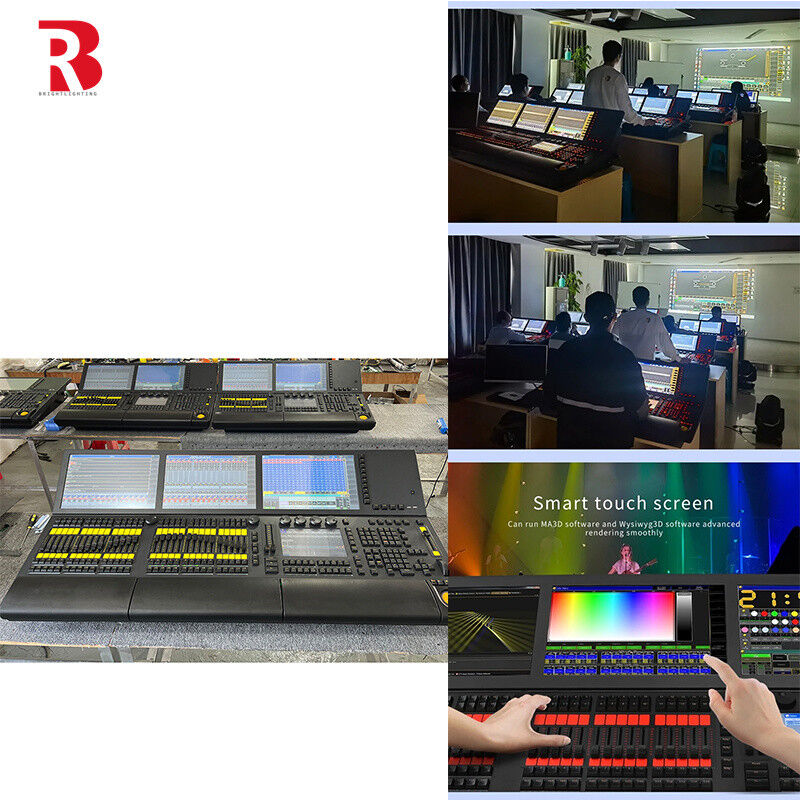

DMX512 MA Full Size Stage Controller System For Party Wedding Performance 2
