Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-M3

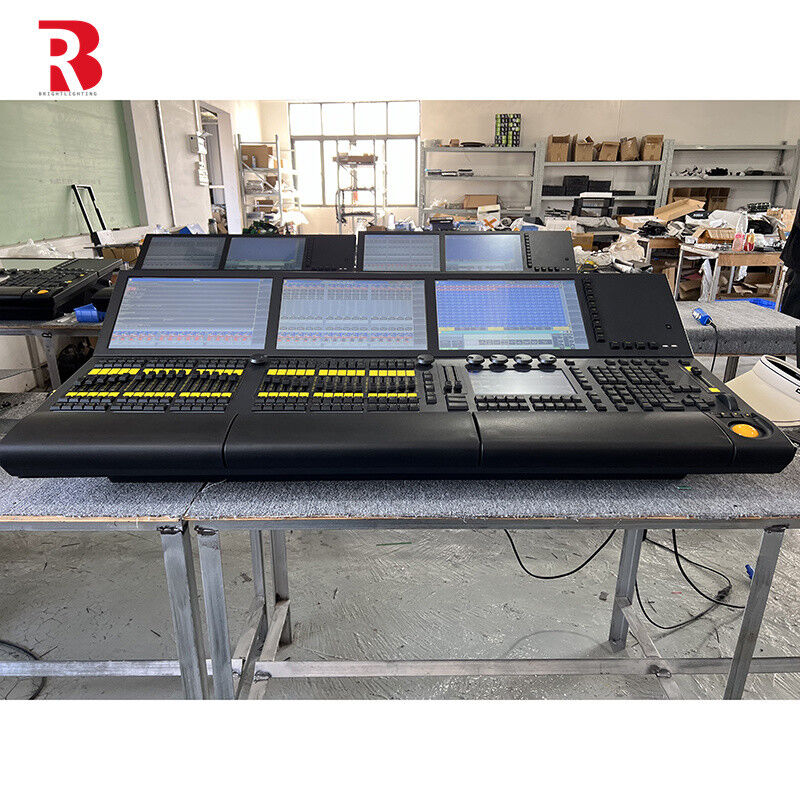

| System: | Linux operating system |
| Touch screen: | Built-in 3 electric lifting 15.4-inch industrial full-view touch screen, 1 9-inch touch screen |
| Configuration: | powerful i5CPU, 4G memory, built-in solid state drive |
| DMX: | 6 DMX output ports, 1 composite DMX input port (can be set as output) |
| Connection: | Up to 65536 channels can be connected to the NPU |
| Button: | 30 electric replay faders with sensor function (60mm), 80 executive buttons |
| Control: | 1 total control putter • 1 dimming wheel |
| Trajectory ball: | 1 controllable XY axis high precision imported trackball |
| Electric push rod: | 2 A/B field electric push rods (100mm) |
| Coder: | 7 imported industrial grade wear-resistant encoders (with Push function) |
| Ethernet port: | 2 Gigabit Ethernet ports, support MA NET, ARTNET, etc. |
| USB port: | 5 USB ports, 1 backup USB port |
| Interface and display: | 2 work light interfaces,MIDI input and output interface,2 DVI interfaces, expandable two displays |
| Built -in and keyboard: | Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable) |
| Work power: | Wide-voltage industrial power supply 100V-240V 50/60Hz |
| Power: | Built-in high power UPS uninterruptible power supply |
| Function: | Support RDM function |
Operation Methods and Considerations: Users can interact with the controller through its touch screens, faders, buttons, encoders, and other input devices. Care should be taken to configure the controller correctly, connect compatible lighting fixtures, and follow industry best practices for safe and effective operation. Regular maintenance and firmware updates are recommended to ensure optimal performance and compatibility with evolving lighting technologies.
Application:
Theme Parks and Attractions: The controller is deployed to manage intricate lighting displays and effects in theme park rides, attractions, and themed entertainment areas.
Sports Events: It is used to illuminate sports arenas, stadiums, and outdoor events, accentuating the action and engaging the audience through impactful lighting designs.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
