MA Two Size Stage light DMX512 Controller System electronic touch screen

MA Two Size Stage light DMX512 Controller System electronic touch screen

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-M3

Contact Us
Request A Quote
Product Details
System:
Linux Operating System
Configuration:
Powerful I5CPU, 4G Memory, Built-in Solid State Drive
Connection:
Up To 65536 Channels Can Be Connected To The NPU
Control:
1 Total Control Putter • 1 Dimming Wheel
Electric Push Rod:
2 A/B Field Electric Push Rods (100mm)
Ethernet Port:
2 Gigabit Ethernet Ports, Support MA NET, ARTNET, Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
MA Two Size Stage Light DMX512 Controller System Electronic Touch Screen

Specifications:
System: Linux operating system
Touch screen: Built-in 2 electric lift 15.4 inch industrial full-view touch screen, 1 9-inch touch screen
Configuration: powerful i5CPU, 4G memory, built-in solid state drive
DMX: 6 DMX output ports, 1 composite DMX input port (can be set as output)
Connection: Up to 65536 channels can be connected to the NPU
Button: 15 electric replay faders with sensor function (60mm), 50 executive buttons
Control: 1 total control putter • 1 dimming wheel
Trajectory ball: 1 controllable XY axis high precision imported trackball
Electric push rod: 2 A/B field electric push rods (100mm)
Coder: 7 imported industrial grade wear-resistant encoders (with Push function)
Ethernet port: 2 Gigabit Ethernet ports, support MA NET, ARTNET, etc.
USB port: 5 USB ports, 1 backup USB port
Interface and display: 2 work light interfaces,MIDI input and output interface,2 DVI interfaces, expandable two displays
Built -in and keyboard: Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)
Work power: Wide-voltage industrial power supply 100V-240V 50/60Hz
Power: Built-in high power UPS uninterruptible power supply
Function: Support RDM function



Additional details:

Technical principle:
The controller uses a Linux-based operating system and achieves powerful computing capabilities through the built-in i5CPU, memory and solid-state drive. Connected to the NPU through the DMX output port, it supports control of up to 65536 channels. In addition, it supports multiple protocols such as MA NET and ARTNET, and has RDM function.



Working principle:
Users can perform lighting control operations through touch screens, buttons, control mice, dimmer wheels, etc. At the same time, input and control can be performed via the built-in keyboard.



Application:

Drama performances and drama performances: The stage lighting can be finely adjusted through the controller, allowing the audience to better immerse themselves in the performance.

Cultural and Art Center: Suitable for indoor and outdoor cultural and artistic activity venues, such as art galleries, museums and sculpture gardens, to enrich and highlight the display effect of artworks.



Service:

Provide after-sales service



Company introduction:

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.


display:
MA Two Size Stage light DMX512 Controller System electronic touch screen 0

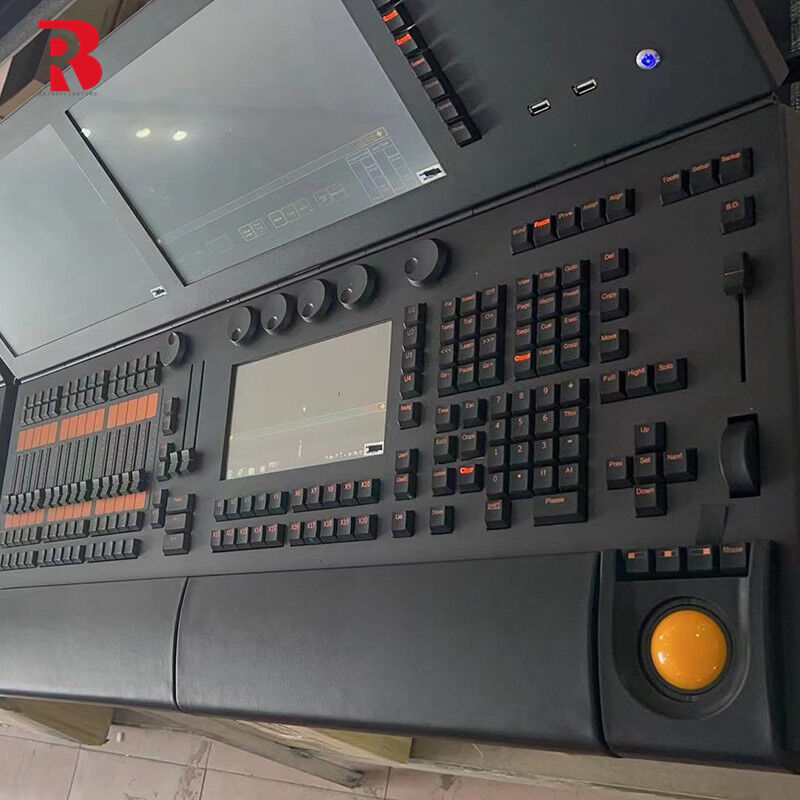

MA Two Size Stage light DMX512 Controller System electronic touch screen 1
MA Two Size Stage light DMX512 Controller System electronic touch screen 2
