Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System for show

Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System for show

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-TIGER TOUCH II

Contact Us
Request A Quote
Product Details
Screen:
14.1-inch Screen
System:
9.1 10.0 10.1 11.0 11.1 Five-system Free Switching System With Ups Power Supply.
Output:
The Default Output Is 4 512, The Network Can Output 12 512
Hardware:
Intel Core I5 Processor, 120G Solid State Hard Disk, 4GB Running Memory, 90 Minutes Ups Power.
DMX:
Built-in 4 DMX Output Ports, 2048 Channels;DMX Outputs Through The Network
Support:
Support Art-net Network Output, Which Can Be Expanded To 12 Universe; Titan-net Protocol, Support Headphone Output
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System For Show

Specifications:
Screen: 14.1-inch screen
System: 9.1 10.0 10.1 11.0 11.1 Five-system free switching system with ups power supply.
Output: The default output is 4 512, the network can output 12 512
Hardware: Intel Core I5 processor, 120G solid state hard disk, 4GB running memory, 90 minutes ups power.
DMX: Built-in 4 DMX output ports, 2048 channels;DMX outputs through the network
Support: Support Art-net network output, which can be expanded to 12 Universe; Titan-net protocol, Support headphone output
Expandable: expandable to 64 Universe DMX outputs
Faders: 10 mechanical page turning playback faders;
Function keys: 20 custom macro function keys
Built-in: Built-in 14.1-inch highlight touch screen, which can be extended by a Titan Fader wing,20 playback faders, 30 custom macro functions, USB powered)
Interface: 1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocols,Compatible with other TITAN system console performance files
Carton size: 59x54x36
Carton weight: 13.3KG
Air box size: 59x54x29
Air box weight: 22.8Kg



Additional details:

Technical principle:
Five-system free switching system: The console supports multiple operating system versions, and users can freely choose according to their needs and achieve smooth switching.
UPS power supply: Built-in UPS power supply ensures that the console can still work normally and protect data security in the event of power interruption or fluctuation.
DMX output: Built-in 4 DMX output ports, which can perform DMX output through the network, and support up to 2048 channels, providing flexible lighting control capabilities.
Network support: Supports Art-net network output and Titan-net protocol, which can expand more universes through the network. At the same time, it is compatible with the performance files of other TITAN system consoles to facilitate work collaboration and file sharing.



Application:

Performing arts performance venues: used for stage lighting control, supporting a large number of channel outputs and network transmission, suitable for various performances.

Large conference hall: can be used for lighting control and scenery effects, supports customized macro function keys, and is easy and efficient to operate.

Service:

Provide after-sales service



Company introduction:

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.


display:

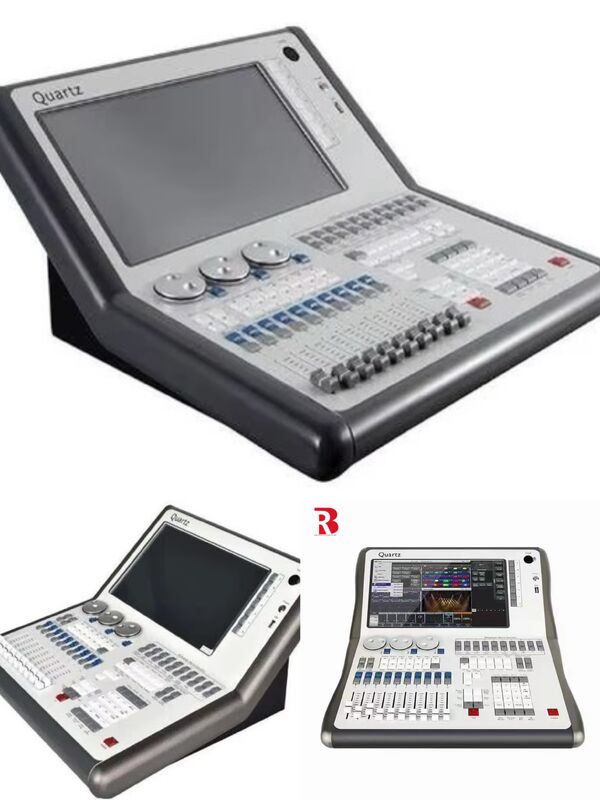

Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System for show 0

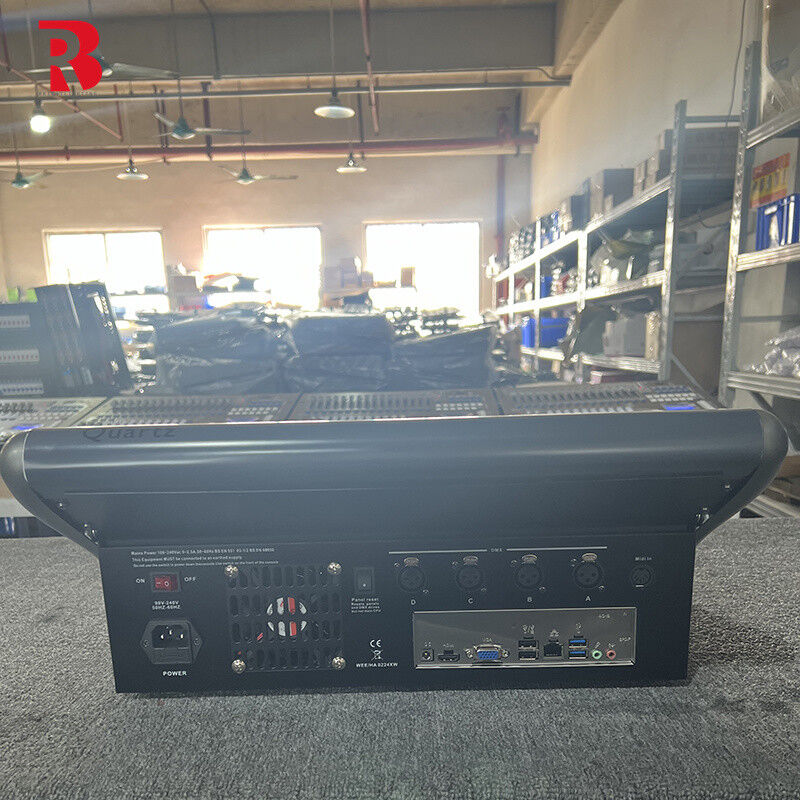

Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System for show 1

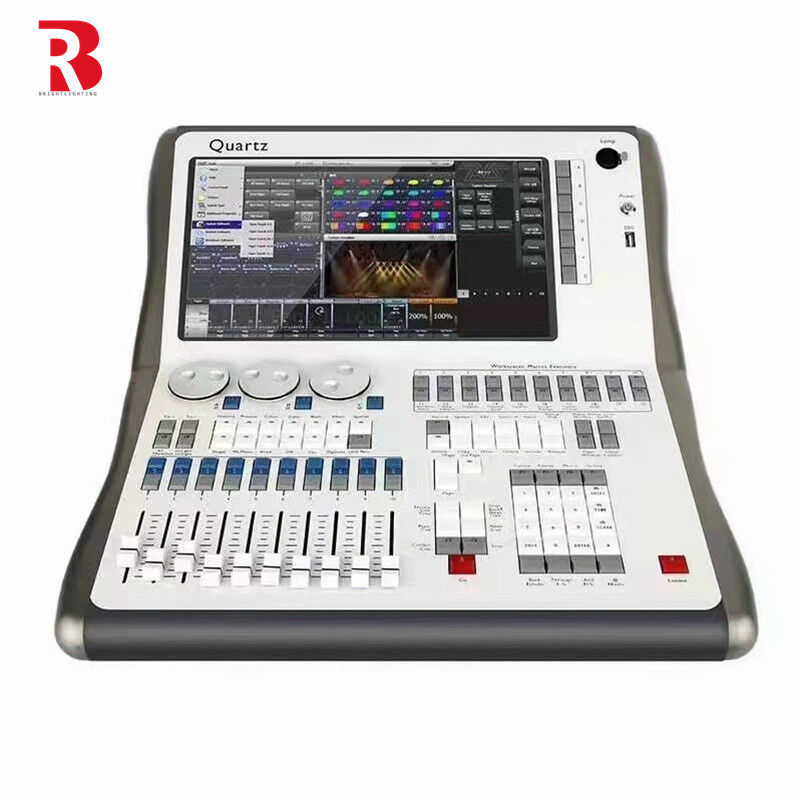

Top Quality Stage DMX512 Lighting Controller QUARTZ With Five System for show 2
