Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club

Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club

Place of Origin:

China

Brand Name:

Bright lighting

Certification:

CE ISO9000

Model Number:

BR-TIGER TOUCH II

Contact Us
Request A Quote
Product Details
Output:
The Default Output Is 4 512, The Network Can Output 12 512
Faders:
10 Mechanical Page Turning Playback Faders
Function Keys:
20 Custom Macro Function Keys
Built-in:
Built-in 14.1-inch Highlight Touch Screen, Which Can Be Extended By A Titan Fader Wing,20 Playback Faders, 30 Custom Macro Functions, USB Powered)
Interface:
1 Gigabit Network Interface, Support Art-net, Titan-net, Streaming CAN Protocols,Compatible With Other TITAN System Console Performance Files
DMX:
Built-in 4 DMX Output Ports, 2048 Channels;DMX Outputs Through The Network
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Carton Flightcase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS per month
Product Description
Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club

Specifications:
Screen: 14.1-inch screen
System: 9.1 10.0 10.1 11.0 11.1 Five-system free switching system with ups power supply.
Output: The default output is 4 512, the network can output 12 512
Hardware: Intel Core I5 processor, 120G solid state hard disk, 4GB running memory, 90 minutes ups power.
DMX: Built-in 4 DMX output ports, 2048 channels;DMX outputs through the network
Support: Support Art-net network output, which can be expanded to 12 Universe; Titan-net protocol, Support headphone output
Expandable: expandable to 64 Universe DMX outputs
Faders: 10 mechanical page turning playback faders;
Function keys: 20 custom macro function keys
Built-in: Built-in 14.1-inch highlight touch screen, which can be extended by a Titan Fader wing,20 playback faders, 30 custom macro functions, USB powered)
Interface: 1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocols,Compatible with other TITAN system console performance files
Carton size: 59x54x36
Carton weight: 13.3KG
Air box size: 59x54x29
Air box weight: 22.8Kg



Additional details:

Advantage:

Multi-system switching and UPS power backup ensure the stability and reliability of the system.
The powerful DMX output capability and number of supported channels meet the needs of complex lighting control.
Supports network output and multiple protocols, enabling flexible connection and collaborative work with other devices.
The design of the touch screen and custom macro function keys simplifies the operation process and improves work efficiency.
It is highly scalable and can achieve more universe numbers, playback bars and customized macro functions by expanding the device.



Application:

Large event venues: such as stadiums, exhibition centers, etc., used to control lighting and special effects equipment, supporting multi-channel output and strong scalability.

Large hotels/banquet halls: Used to control the lighting effects of banquet halls, supporting customized macro function keys and touch screen operations to meet the needs of different scenarios.



Service:

Provide after-sales service



Company introduction:

Guangzhou Bright Lighting Equipment Co.Ltd,

is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.

Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.


display:

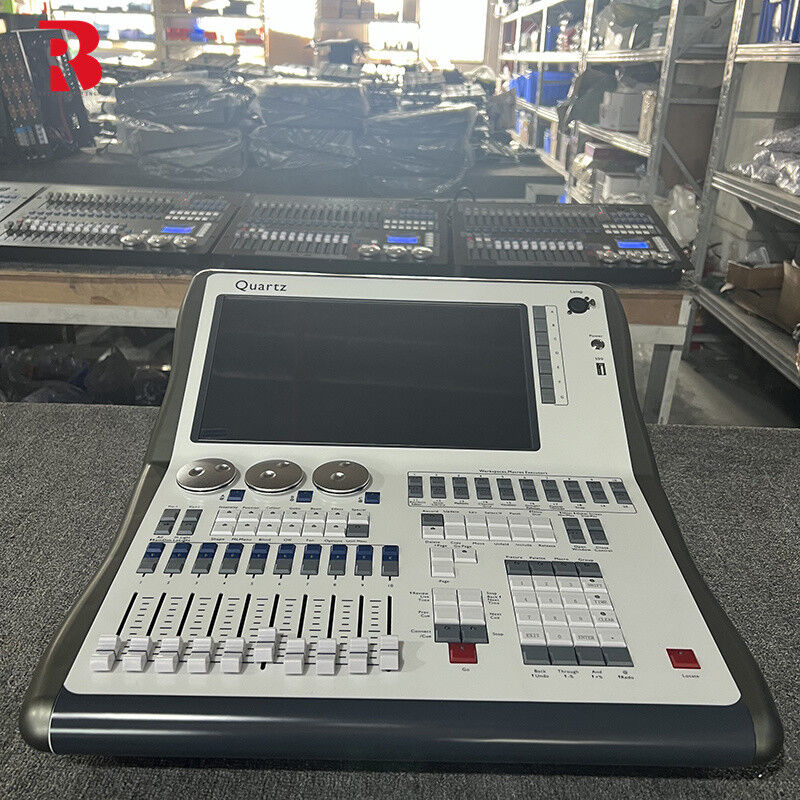

Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club 0

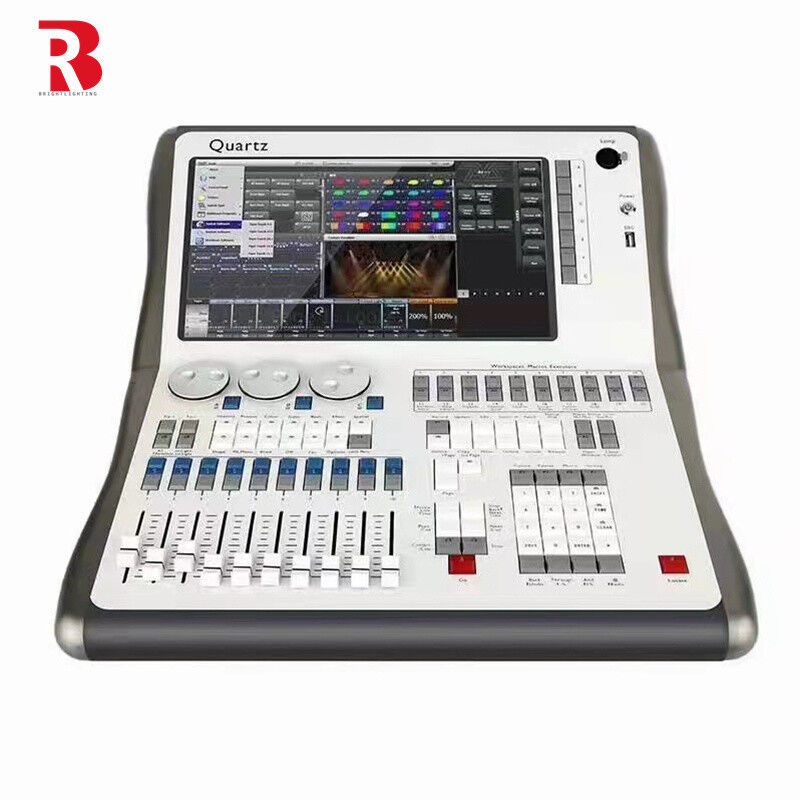

Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club 1

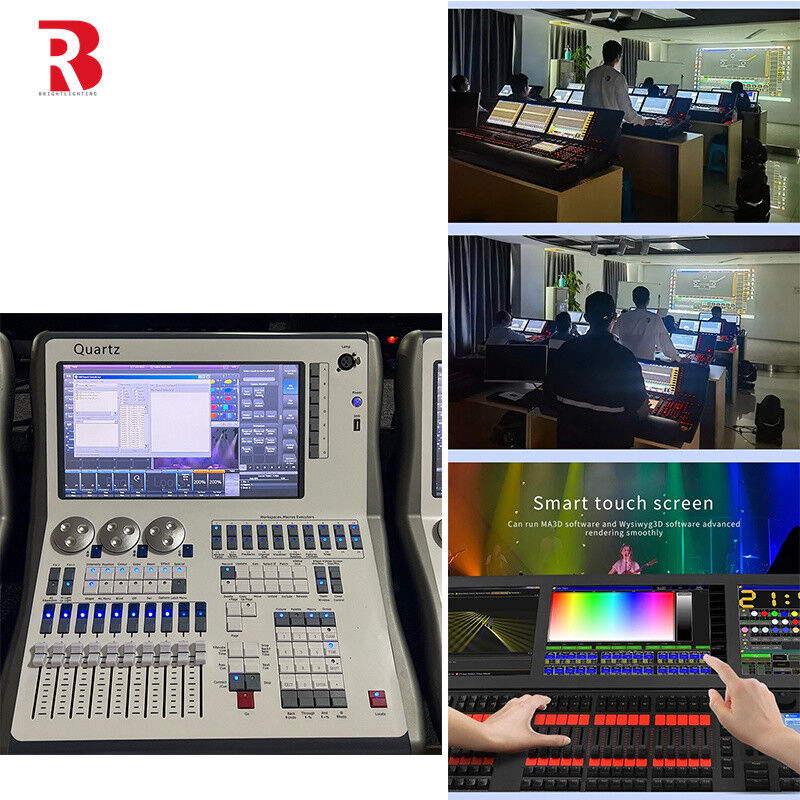

Led Stage Equipment Stage DMX512 Lighting Controller QUARTZ For The DJ Club 2
