240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco

High Brightness LED Stage Light

48CH LED Stage Light

Event Disco LED Stage Light

Place of Origin:

China

Brand Name:

Brightlighting

Certification:

CE

Model Number:

BR-W3715Z

Contact Us
Request A Quote
Product Details
Power:
600W
Pan/Tilt:
540°/270°
Channel:
20/60CH
Temperture:
-20℃~+40℃
Application:
Show
Lifespan:
50000 Hours
Housing Mat:
ABS
IP Rate:
IP20
Payment & Shipping Terms
Minimum Order Quantity
5
Price
Negotiable
Packaging Details
Carton Package FlightCase
Delivery Time
7-15days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000PCS
Product Description
240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco




Matters needing attention:



1:Avoid using in high temperature and high humidity environment for a long time, so as not to affect the life of the lamp.
2:Clean the surface of lamps and cooling fans regularly to ensure smooth heat dissipation.
3:Check the fixed installation before use to ensure that the beam lamp is in a stable state.


Specifications:


Special point: 1. With LED dimmer, scan position memory and auto reposition .
2. Built-in programs with macro effect.
3. 37pcs LED with7 areas controllable effect to bring more amazing effect.
4. With 3 phase motor on pan and tilt to make fast movement.
Voltage: AC90-240V 50-60HZ
Max Power: 600 w
Source: 37pcs 15w high brightness RGBW 4-in-1 leds
Dimmer: 0-100% linear dimming system
Strobe: 1-25 times/second
Pan: 540°with 16 bit fine
Tilt :270° with 16 bit fine
Zoom: 5-60°Smooth zoom system
LED working lifetime: Average 50,000 hours with low power consuption
Channel: 14/17/20/26/48 totally five DMX channel mode
Control: DMX512/master-slave/auto/sound
Color: RGBW infinite mixture
Display: LCD display
Fixture size: 386 mm*423 mm*263 mm
N.W: 13.2 kg
Protection: Auto temperature control system with big cooling fan,advanced cooling system





Working principle:



1:LED light source: LED light-emitting diodes generate high-brightness color light through current excitation.
2:Beam modulation: The LED light is diffused, focused or projected through the appropriate optical device to form the required beam shape and effect.
3:Color adjustment: By adjusting the brightness and color of the LED light source to achieve a variety of lighting effects, such as monochrome, multi-color mixing, color transformation, etc.





Display:

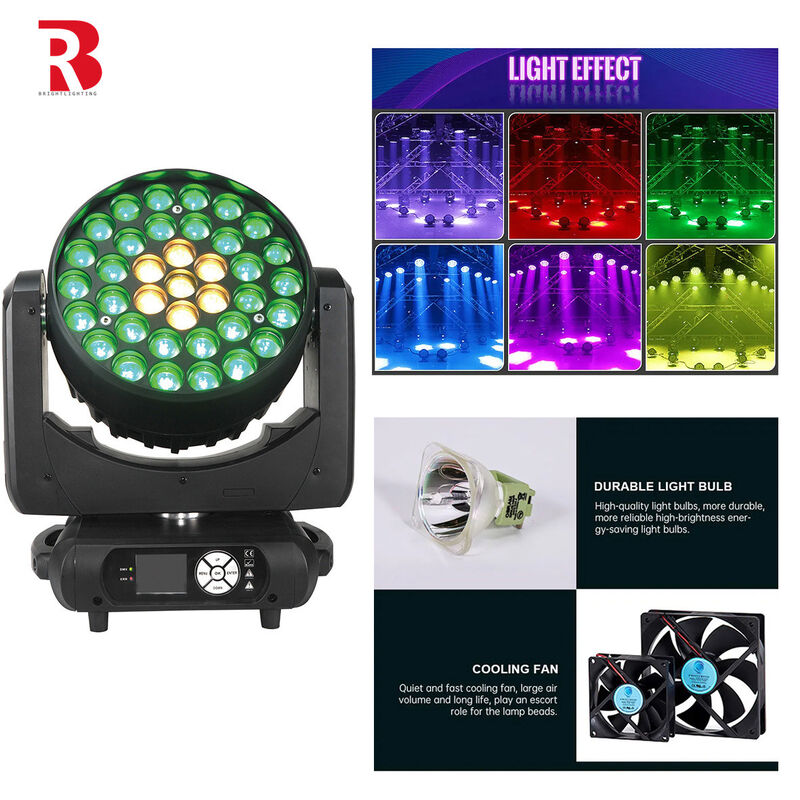

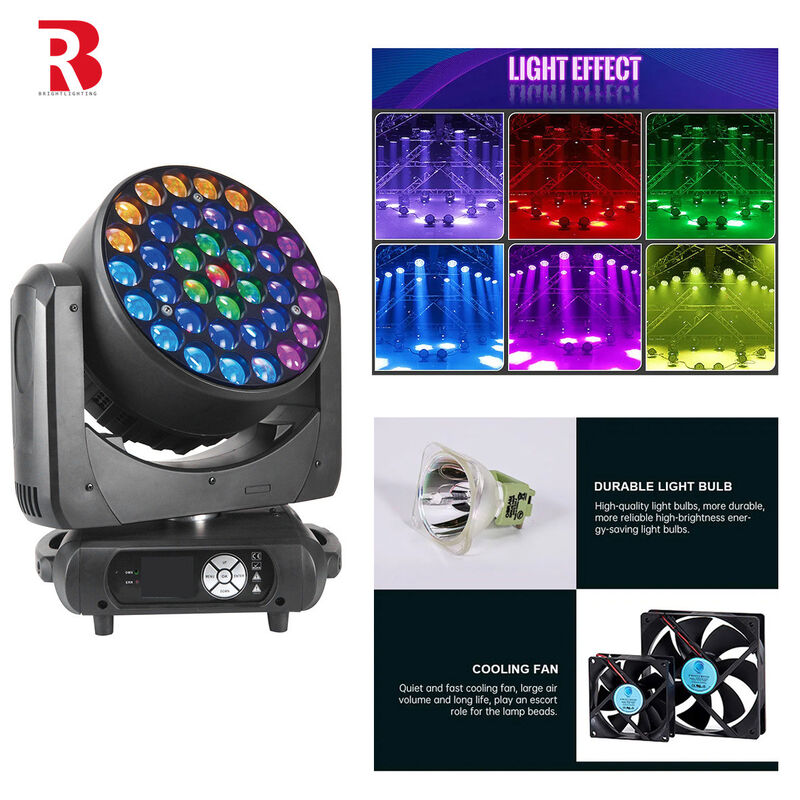

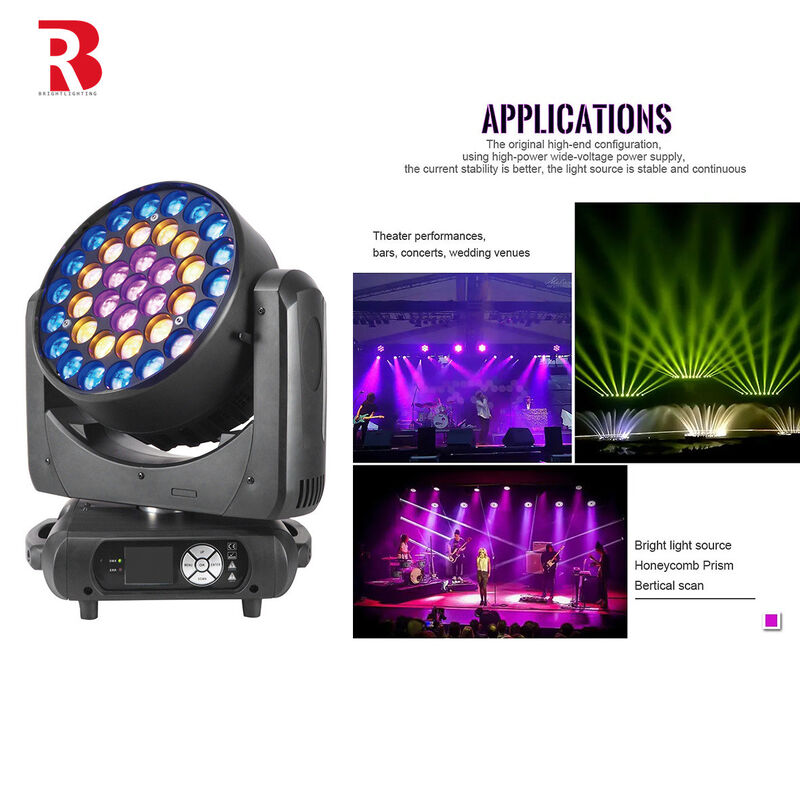

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco 0

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco 1

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco 2

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco 3

240V 37*15W High Brightness 48CH LCE Display LED Stage Light For Event Disco 4
