Place of Origin:
China
Brand Name:
Brightlighting
Certification:
CE
Model Number:
BR-BY1940F

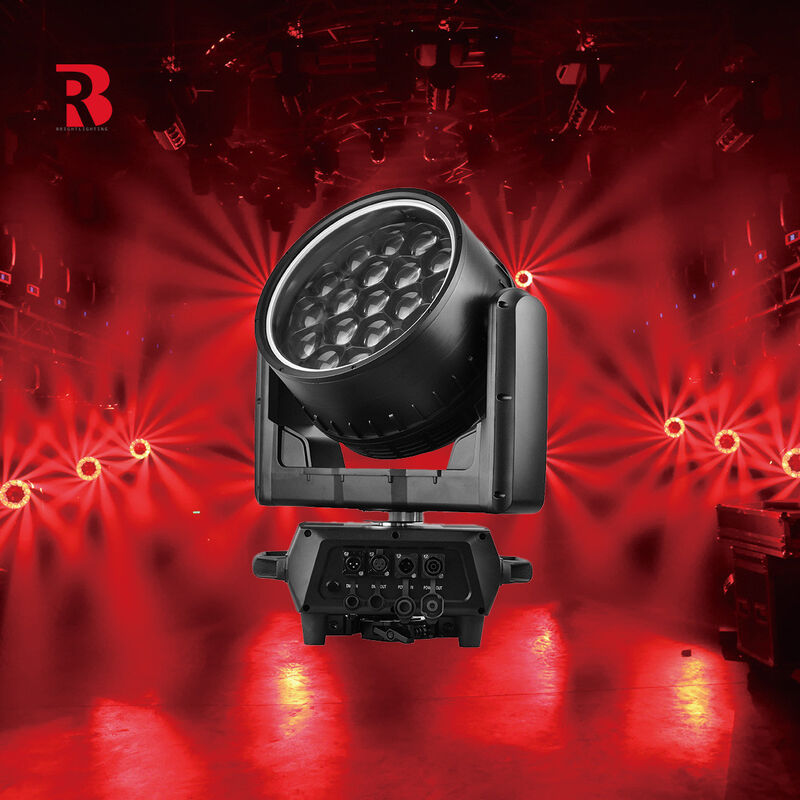

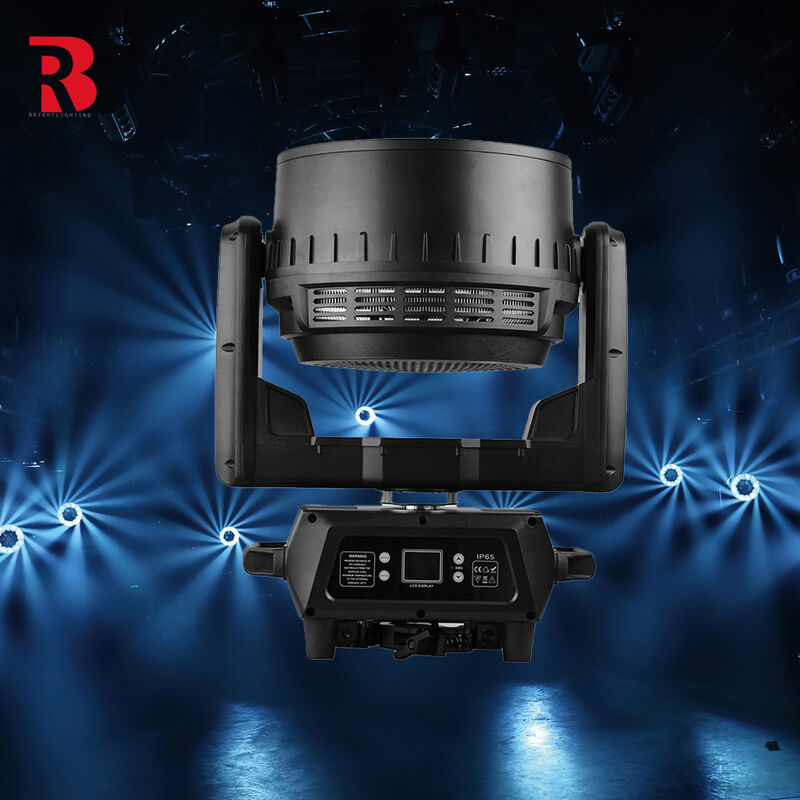

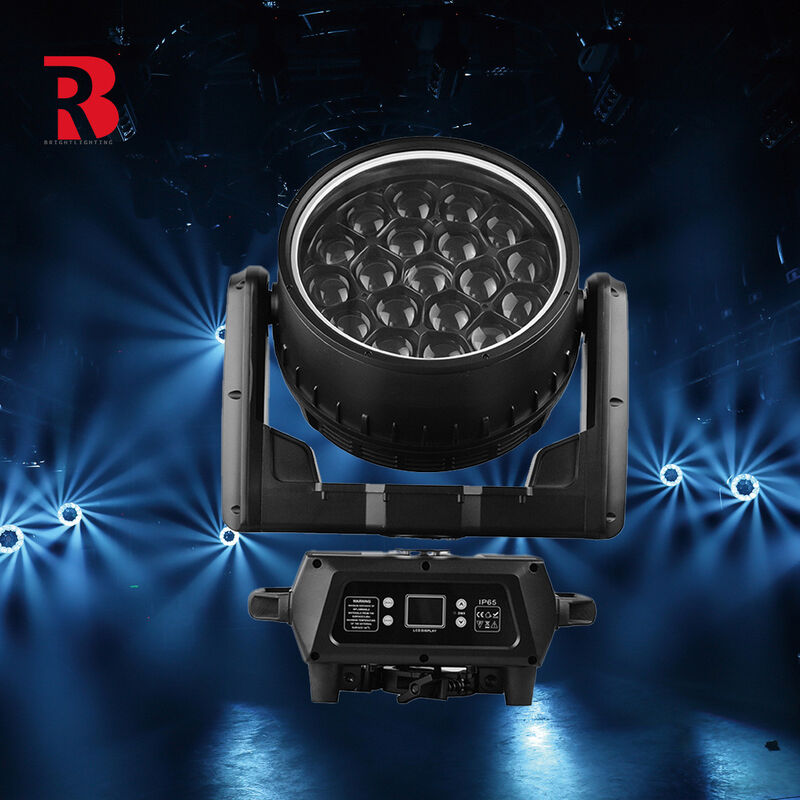

LED Zoom and Rotation 19*40W LED Moving Head For Professional Stage Event
Product Detail:
1.The products can be refined and customized
2.Strong signal and easy to connect
3.Perfect after-sales service
4.For Party / All kinds of show
5.Working Position: Any safe working position
Specifications:
| Special Points. | 1. Each LED can be controlled individually. With unique honeycomb designed lens |
| 2. The front lens can rotate without limitation in forward and reverse direction tocreate amazing effects | |
| 3. Can be used as beam, wash or effect light use (Kaleido effects) | |
| 4. With a extra LED ring for eye-candy effect, LED ring with macro effect | |
| 5. Pure aluminum casting waterproof housing, suitable for all kinds of environment. | |
| Voltage: | AC100V～240V 50-60HZ |
| Rated Power: | 850W |
| LED Source: | 19x40W high power RGBW 4 in 1 LEDs |
| Zoom: | 1:6 zoom range from 7 to 42 degree |
| Strobe: | 0-25Hz |
| Control Mode: | DMX512,Sound-actived,Master/slave |
| DMX Channels: | 21/26/36/43/78/119 six channel mode |
| Dimmer: | 0-100% linear dimmer with 4 kinds of dimmer curve. |
| Pan: | 540°+16 bit fine |
| Tilt: | 250°+16 bit fine |
| Display: | LCD display with touch buttons. |
| IP: | IP65 |
| Fixture dimension: | 434*260*577mm |
| N.W: | 22 Kg |
| G.W: | 26 Kg(1pc/ctn) |
| G.W: | 75 Kg(2pcs/case) |
| Package dimension: | 61*53*45 CM (1pc/ctn) |
| Flight case size: | 87*46*80 CM(2pcs/case) |
Technical principle:
LED wash stage light uses LED light source to achieve color richness and change through mixing and modulation. Through the professional control system, the LED light source is dimmed, toning and other operations, so as to present different lighting effects
Display:
