Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-W3715Z
| Special point: | 1. With LED dimmer, scan position memory and auto reposition . |
| 2. Built-in programs with macro effect. | |
| 3. 37pcs LED with7 areas controllable effect to bring more amazing effect. | |
| 4. With 3 phase motor on pan and tilt to make fast movement. | |
| Voltage: | AC90-240V 50-60HZ |
| Max Power: | 600 w |
| Source: | 37pcs 15w high brightness RGBW 4-in-1 leds |
| Dimmer: | 0-100% linear dimming system |
| Strobe: | 1-25 times/second |
| Pan: | 540°with 16 bit fine |
| Tilt | :270° with 16 bit fine |
| Zoom: | 5-60°Smooth zoom system |
| LED working lifetime: | Average 50,000 hours with low power consuption |
| Channel: | 14/17/20/26/48 totally five DMX channel mode |
| Control: | DMX512/master-slave/auto/sound |
| Color: | RGBW infinite mixture |
| Display: | LCD display |
| Fixture size: | 386 mm*423 mm*263 mm |
| N.W: | 13.2 kg |
| Protection: | Auto temperature control system with big cooling fan,advanced cooling system |
LED light source and dimming system: 37 15W high-brightness RGBW four-in-one LEDs are used to achieve precise 0-100% dimming control through a linear dimming system, which can achieve stepless adjustment and make the lighting effect softer and more natural.
Position control and motion system: The Pan and Tilt motion ranges of the moving head light reach 540° and 270° respectively, equipped with 16-bit fine control and a three-phase motor, which can achieve fast and accurate motion positioning to meet the needs of complex lighting design.
Beam characteristics: With a smooth zoom system of 5-60°, the beam angle can be adjusted according to needs, so as to flexibly control the coverage and focus concentration of the light.
Control method: Supports multiple control modes, including DMX512, master-slave mode, automatic mode and sound response mode, so that users can flexibly control the lighting effects according to different occasions and needs.
Application:

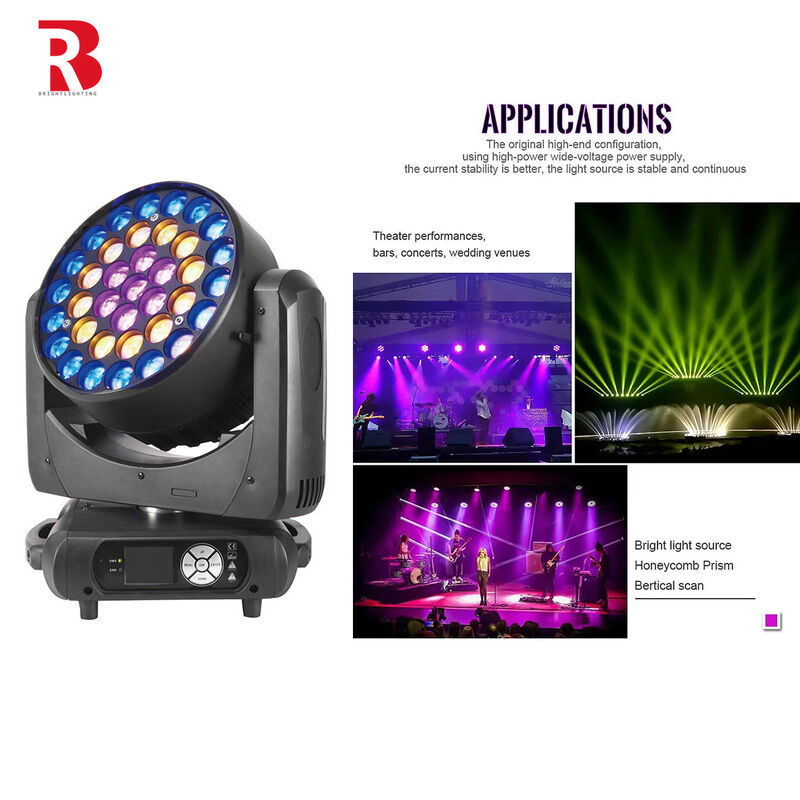

Large-scale events: Such as exhibitions, celebrations, banquets, etc., can use its multiple control modes and rich lighting effects to create personalized and stunning visual effects.
Theater/cinema: Used for background lighting on the stage or screen, it can be flexibly adjusted according to different scenes and plot requirements to enhance the audience's visual experience.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
