Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-Quartz
Video
| system | 14.1-inch screen, 9.1 10.0 10.1 11.0 11.1 Five-system free switching system with ups power supply. |
| DMX | The default output is 4 512, the network can output 12 512 |
| hardware | Intel Core I5 processor, 120G solid state hard disk, 4GB running memory, 90 minutes ups power. Built-in 4 DMX output ports, 2048 channels; |
| Support | Support Art-net network output, which can be expanded to 12 Universe DMX outputs through the network; |
| Extensions | Support Titan-net protocol, expandable to 64 Universe DMX outputs |
| faders | 10 mechanical page turning playback faders; |
| function key | 20 custom macro function keys |
| Built-in | Built-in 14.1-inch highlight touch screen, which can be extended by a Titan Fader wing |
| function | 20 playback faders, 30 custom macro functions, USB powered) |
| output | Support headphone output |
| interface | 1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocols |
| compatible | Compatible with other TITAN system console performance files |
| Carton size: | 59x54x36 |
| Carton weight: | 13.3KG |
| Air box size: | 59x54x29 |
| Air box weight: | 22.8Kg |
Technical principle:
The console uses advanced processors and large-capacity storage devices to achieve efficient communication and control with lighting equipment through supporting multiple protocols such as Art-net and Titan-net. Its hardware design and UPS power supply ensure stability and reliability in various environments.
Application:

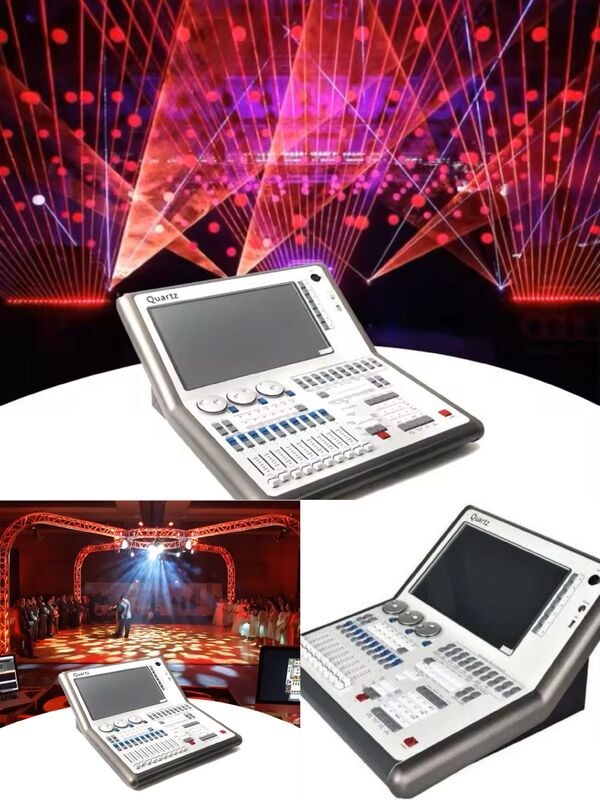

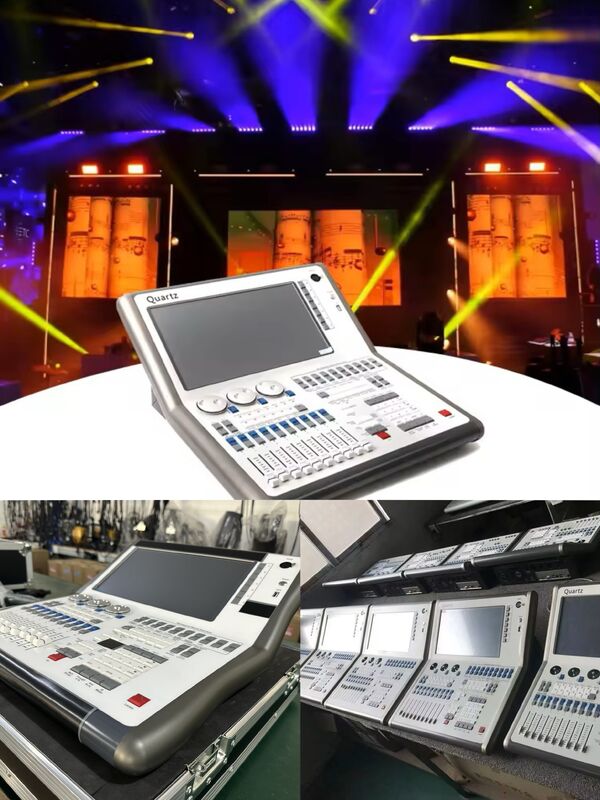

Stage performances: Suitable for all kinds of stage performances, including concerts, dramas and dance performances, it can accurately control various lighting effects on the stage and enhance visual expression.
Film and TV production: In the production of movies and TV programs, multiple DMX outputs and efficient control functions are used to achieve scene lighting adjustment and special effects display.
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
