Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-Quartz
Video

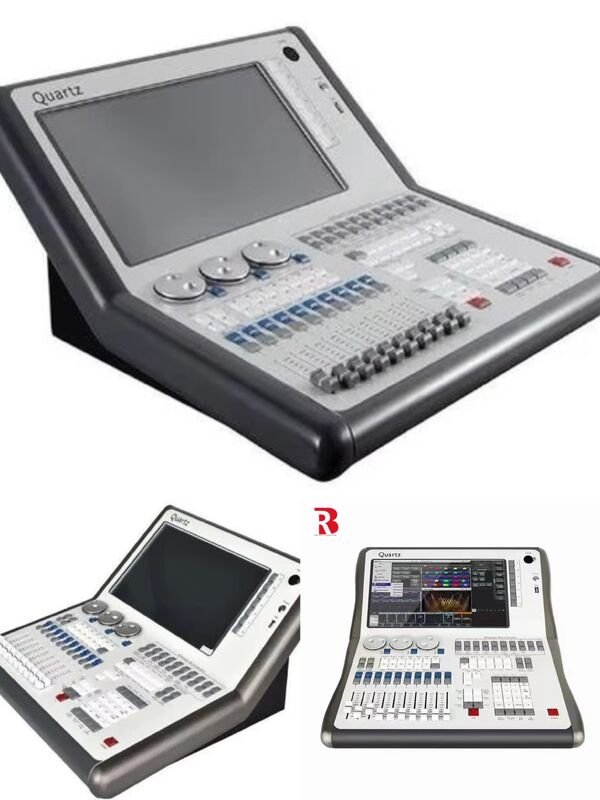

| system | 14.1-inch screen, 9.1 10.0 10.1 11.0 11.1 Five-system free switching system with ups power supply. |
| DMX | The default output is 4 512, the network can output 12 512 |
| hardware | Intel Core I5 processor, 120G solid state hard disk, 4GB running memory, 90 minutes ups power. Built-in 4 DMX output ports, 2048 channels; |
| Support | Support Art-net network output, which can be expanded to 12 Universe DMX outputs through the network; |
| Extensions | Support Titan-net protocol, expandable to 64 Universe DMX outputs |
| faders | 10 mechanical page turning playback faders; |
| function key | 20 custom macro function keys |
| Built-in | Built-in 14.1-inch highlight touch screen, which can be extended by a Titan Fader wing |
| function | 20 playback faders, 30 custom macro functions, USB powered) |
| output | Support headphone output |
| interface | 1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocols |
| compatible | Compatible with other TITAN system console performance files |
| Carton size: | 59x54x36 |
| Carton weight: | 13.3KG |
| Air box size: | 59x54x29 |
| Air box weight: | 22.8Kg |
Working principle:
The console controls and dispatches lighting equipment through touch screen and mechanical operation panel.
Supports preset scenes and macro functions, allowing users to quickly call complex lighting effects and programs.
Connect and control multiple lighting devices through network interface and DMX output port.
Advantages:
Flexibility: Multi-system switching and channel expansion functions to adapt to lighting settings of different scales and complexities.
Performance: High-performance processor and solid-state drive ensure stable operation and fast response, supporting large-scale lighting control.
Ease of use: Touch screen interface and custom function keys simplify operation process, reduce human errors and operating costs.
Scalability: Support multiple protocols and large-scale channel output to meet diverse lighting layout needs.
Application:
Art exhibitions and cultural events: In art galleries, museums and cultural events, artworks and cultural heritage are displayed through a variety of lighting effects.
Large-scale events and celebrations: In various large-scale celebrations and festivals, a variety of lighting demonstrations and highlight effects are achieved through flexible control methods and efficient performance.
Service:
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
Send your inquiry directly to us
