Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-MA04
Video

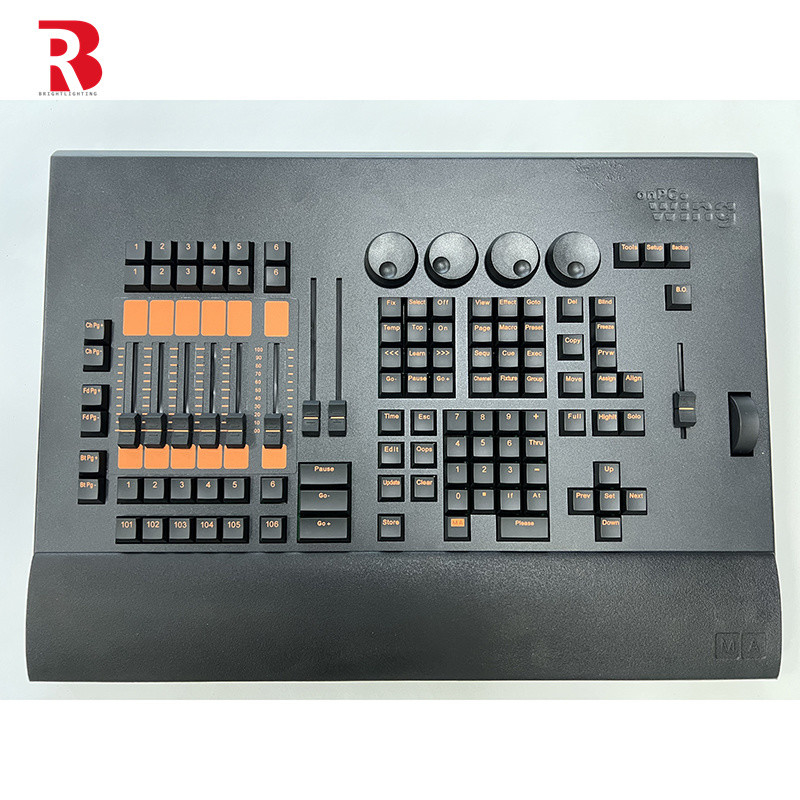

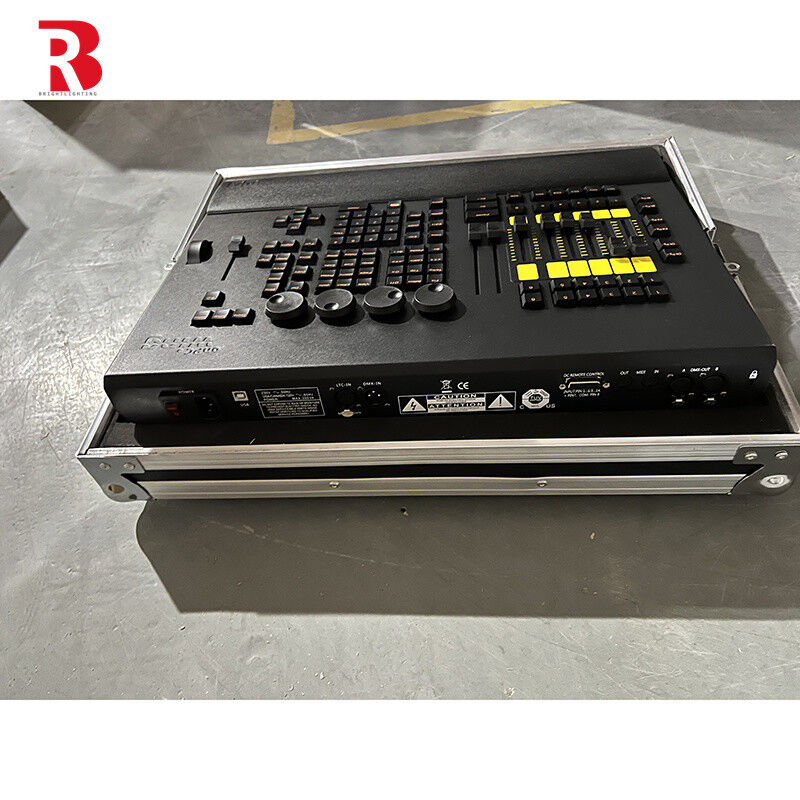

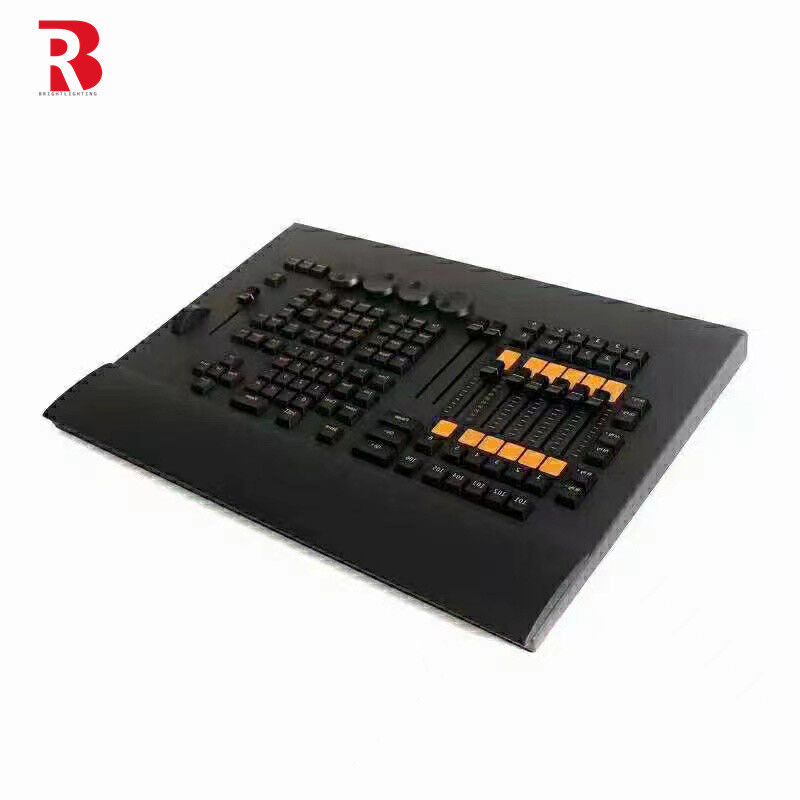

Professional Stage Lighting Console Command Wing Expansion Equipment
| control | Real-time control of 2048 parameters |
| actuators | 6 actuators (length 60mm), 18 actuators |
| channel | 2 A/B switching faders (length 100mm) 6 execution buttons, 6 page buttons (channel/push/button) 4 encoder wheels |
| parameter | 2048 parameters, up to 4096 parameters |
| DMX | 2DMX output port, 1DMX input port |
| wheel | 1 brightness dimming wheel |
| dimmable | Dimmable button with independent backlight and dimmable |
| input | Analog signal remote input interface |
| interface | LTC interface, MIDI IN and MIDI OUT interface |
| USB | USB2.0 interface |
| power | Wide voltage (100-240VAC) power supply is light and portable. It is sturdy and weighs only 6KG. |
| function | The command button area is similar to the console layout; plug and play, you can easily implement the console function by simply connecting to a PC. |
| Volume | 63*57*26cm |
| Gross weight | 12KG |
Features:
Control 2048 parameters, support up to 4096 parameters.
6 actuators and 18 actuators, suitable for a variety of lighting equipment.
2 A/B switching sliders, 6 execution buttons, 6 page buttons, 4 encoders.
2 DMX output ports and 1 DMX input port, support the input and output of lighting signals.
Independent brightness adjustment wheel with backlight, can be adjusted separately.
Support analog signal remote input interface, LTC interface, as well as MIDI IN and MIDI OUT interfaces.
USB2.0 interface, easy to connect to the computer for control.
Wide voltage input (100-240VAC), weighs only 6KG, easy to carry.
Application:
Evening parties and concerts: Provide lighting expressiveness for music scenes, support fast response and real-time control, and meet the high requirements for lighting effects in concerts and evening parties.
Theater and dance performances: Lighting effects can be adjusted according to the stage plot and performance rhythm, and fine dynamic control can be achieved through encoders and sliders to enhance the drama and emotional expression of the performance.
Provide after-sales service
Company introduction:
Guangzhou Bright Lighting Equipment Co.Ltd,
is a high-tech enterprise specializing in stage lighting equipment, lighting control systems, etc.integrating R&D, manufacturing, sales, and technical services. The company is located in Xinhua Industrial Zone, Huadu District, Guangzhou City.
Bright Lighting adhering to the corporate philosophy of quality survival and innovative development, continuously strengthens technology research and development and scientific innovation capabilities, strives for excellence and controls product quality, and provides partners with more high-quality products and technical solutions.
