Place of Origin:
China
Brand Name:
Bright lighting
Certification:
CE ISO9000
Model Number:
BR-1915Z

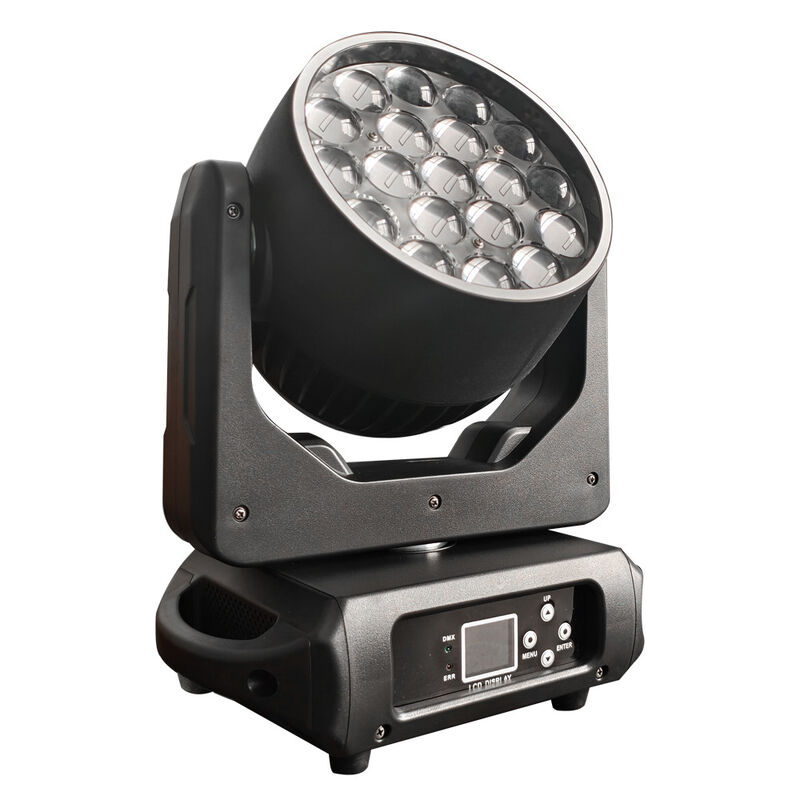

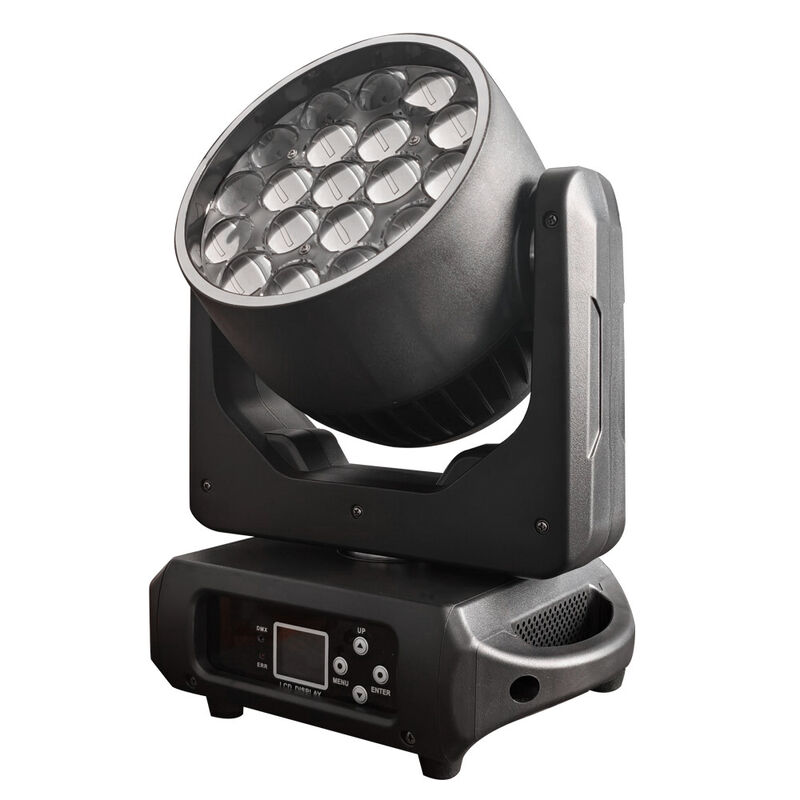

Single LED Controlled DMX512 Moving Head Light Manufacturers For Show
Specifications:
| Product |
19Pcs 15w Wash Moving Head Light with Zoom |
| Lamp beads |
19pcs*15W, 38pcs 5050 RGB*0.2W lamp beads can be controlled separately |
| Control mode |
DMX512, self-propelled, master-slave, with RDM function. |
| Features |
dyeing + flashing + point control |
| Strobe frequency |
1~30HZ |
| Appearance |
metal, black |

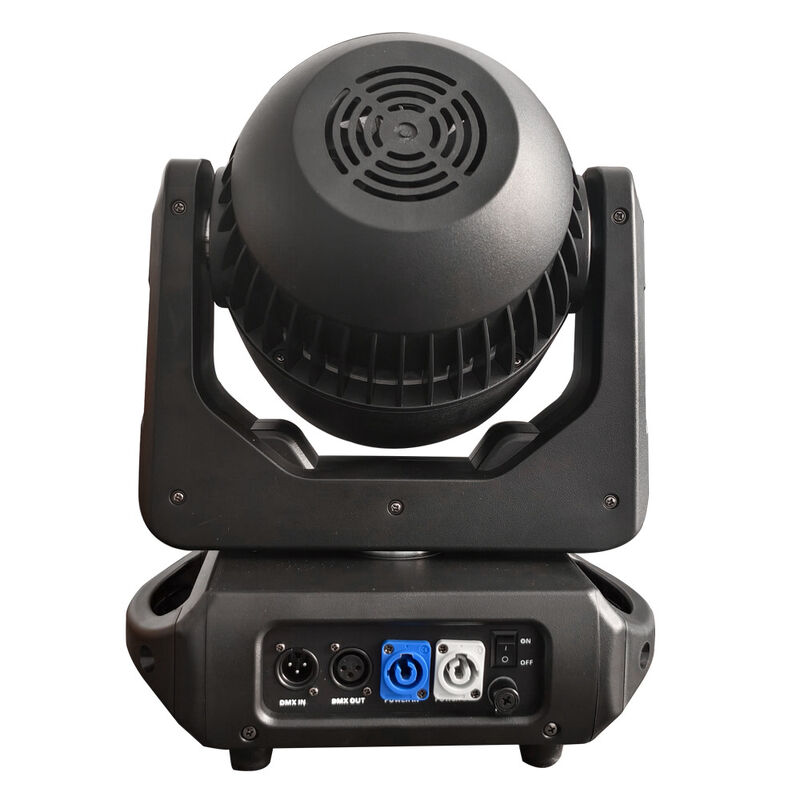

| Connection mode |
DMX512 input and output / power input and output. |
| Voltage |
AC100~240V 50/60HZ |
| Dimming |
32bit 0~100% linear dimming |
| Working temperature |
-30 degrees ~ 50 degrees
|
Technical Principle
Using 19x15W high-power RGBW 4-in-1 LED light source, the zoom range is 4-60°, and the strobe range is 0-20Hz.
The horizontal scanning range is 270° + 16-bit accuracy, and the vertical scanning range is 540° + 16-bit accuracy.
Control modes include DMX512, voice control, master-slave mode, and the number of DMX channels ranges 21 CH.
Linear dimming with a dimmable range of 0-100%.
Working Principle
By independently controlling the LED and rotating lens, as well as various control modes, various special effects and movements of the light can be achieved.
Utilize fan cooling and temperature detection systems to ensure stable operation of the equipment and avoid overheating damage.
Indoor sports event venues: used for lighting shows, award ceremonies and atmosphere creation during competitions.
Churches/Chapels: Provide flexible lighting effects for religious services and musical performances to enhance the ambience of religious sites
